Jensen VX7010 - INSTALLATION GUIDE; Installation Guide and Preparation

What’s in the Box
The following items are supplied with
the VX7010:
 9;+HDG8QLW
 7ULP5LQJ
 +DUGZDUH%DJ
 3RZHU6SHDNHU2XWSXW+DUQHVV
 5HPRWH&RQWURO
 ([WHUQDO0LFURSKRQH
 *36$QWHQQD
 2ZQHUV0DQXDO:DUUDQW\&DUG
 ,QVWDOODWLRQ*XLGH
Tools and Supplies
The following tools and supplies are
needed to install the VX7020:
t Torx type, at-head and Philips
screwdrivers
t Wire cutters and strippers
t Tools to remove existing radio (screw
driver, socket wrench set or other
tools)
t Electrical tape
t Crimping tool
t Volt meter/test light
t Crimp connections
t 18 gauge wire for power connections
t 16 – 18 gauge speaker wire
:$51,1*1HYHULQVWDOOWKLVXQLWZKHUHRSHUDWLRQDQGYLHZLQJFRXOGLQWHUIHUHZLWK
VDIHGULYLQJFRQGLWLRQV

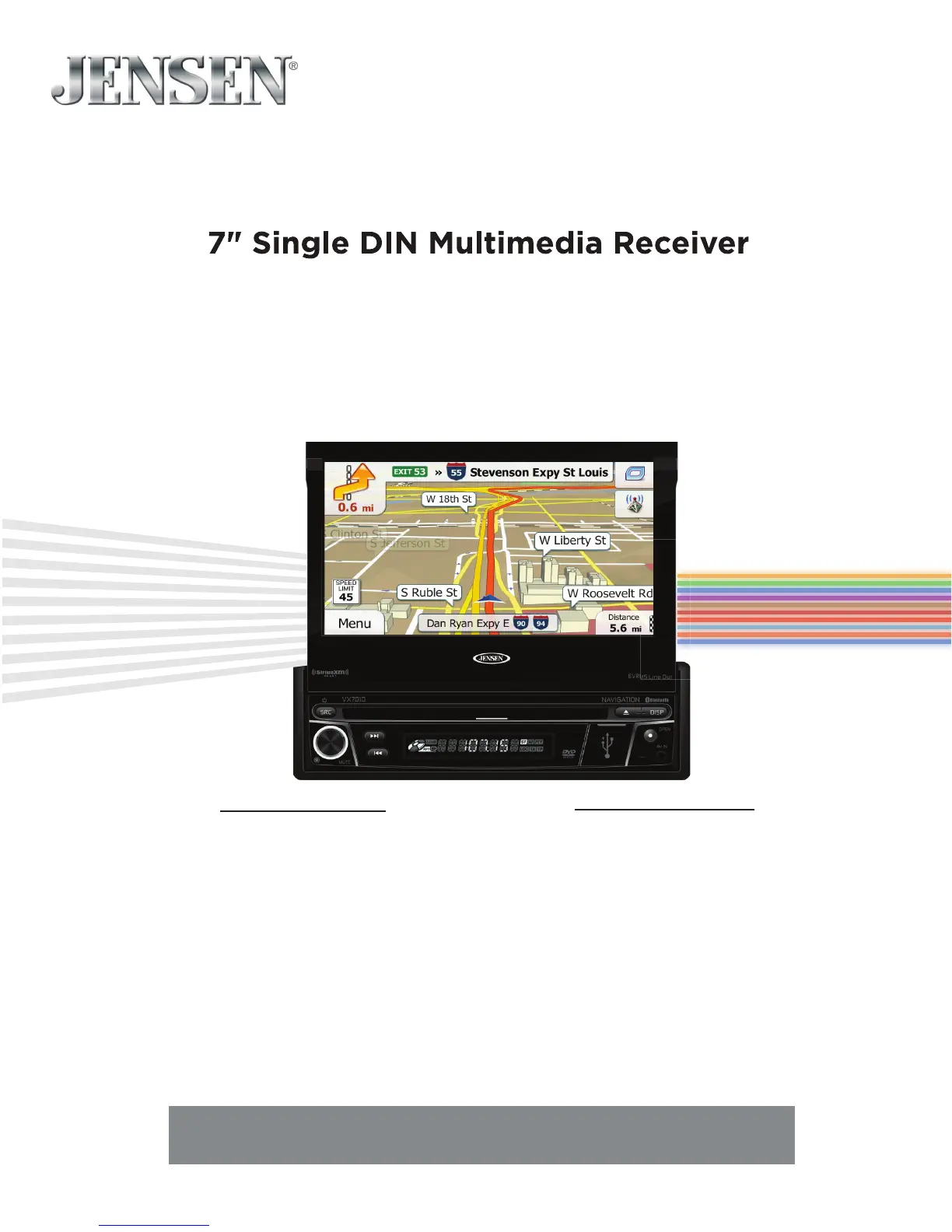

INSTALLATION GUIDE
VX7010
DVD / NAV / SiriusXM-Ready®/ Built-in Bluetooth / Pandora Link
Compatible with iPhone /Compatible with iPod / USB / Aux In
