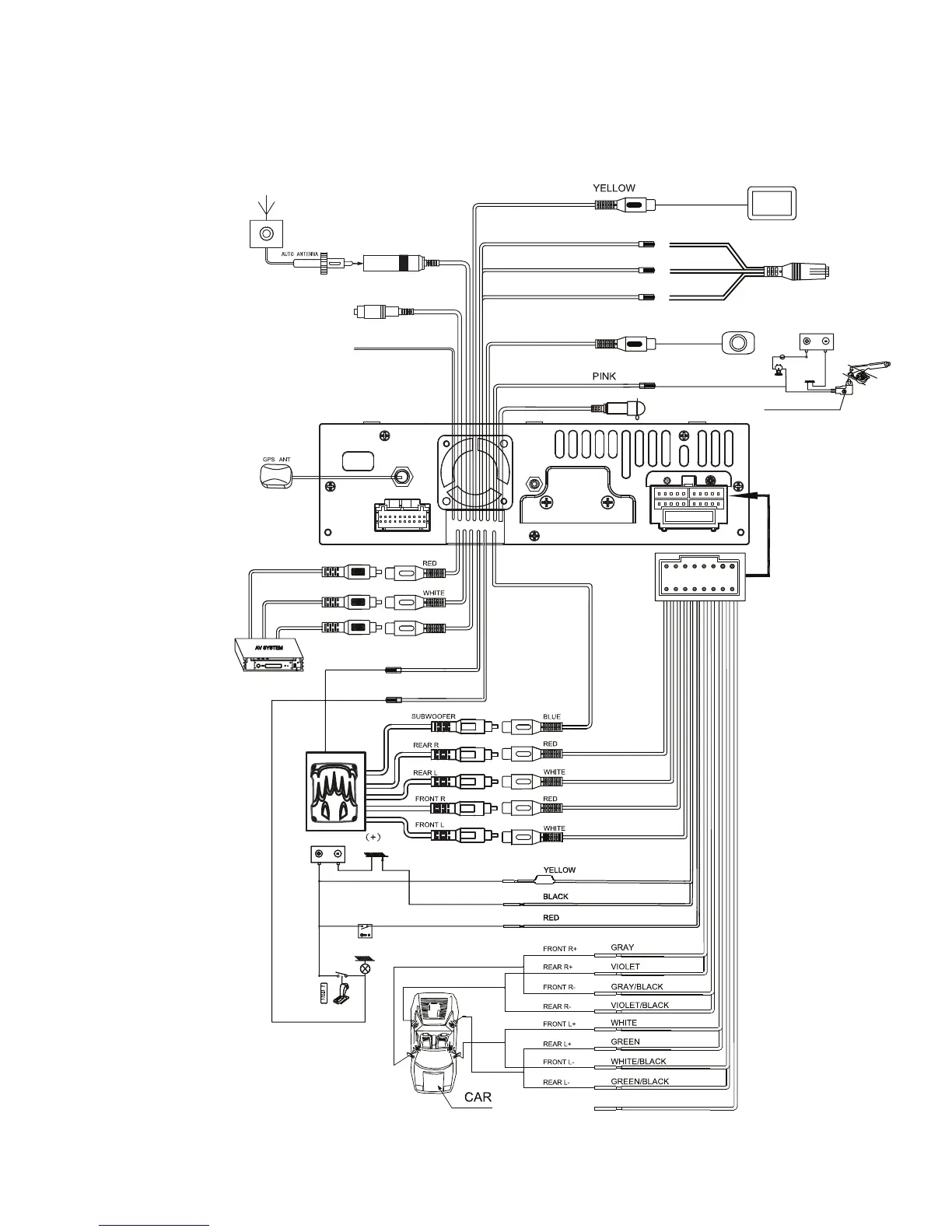

Wiring Diagram
CAUTION! IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully,
or have the installation handled by an experienced technician.
Need Help? For technical assistance, call the Jensen customer support line at 1-800-323-4815.
The VX7010 has a built-in SWC Interface compatible with most resistive type OE steering wheel controls. In most installations, only two of the three wires will be needed to
interface the OE steering wheel controls to the VX7010.
SWC A - Primary SWC Wire
SWC B - Secondary SWC Wire
SWC Ground - Chassis ground
Initial wiring of the SWC interface should include the SWC A and SWC Ground wire. If this combination of wiring does not support your vehicle functions, then try the SWC B
and SWC Ground wire combination. Do not use only SWC A and SWC B. The SWC Ground must be connected.
Some vehicles may not support all SWC functions.
Professional Installation is recommended.
2
YELLOW
ORANGE
Dimmer TFT
SWC Adapter Cable
PARK
VIDEO OUT
MONITOR
BACKUP
CAMERA
BATTERY
GND
AUX2 R
AUX2 L
AUX2 VIDEO IN
BLUE/WHITE
REVERSE
POWER ANT & AMP.CONT
BATTERY
GND
SWC GND
SWC B
SWC A
BACKUP CAMERA
YELLOW
BATTERY(+)
GND(-)
ACC+
BRAKE INDICATION
PARKING BRAKE SWITCH
IGNITION SWITCH
GND
SIGNAL LIGHT
REVERSE DRIVING
GEAR
White/Purple
White/Brown
Brown/Black
White/Purple
White/Brown
Brown/Black
GREEN/WHITE
MOBILE POWER AMP
MIC
BT ANTENNA
RADIO ANT
BLACK
BLACK
BLACK
Black/SiriusXM
To Next Page
