Section 3 - Controls & Indicators
3-3 5376000277

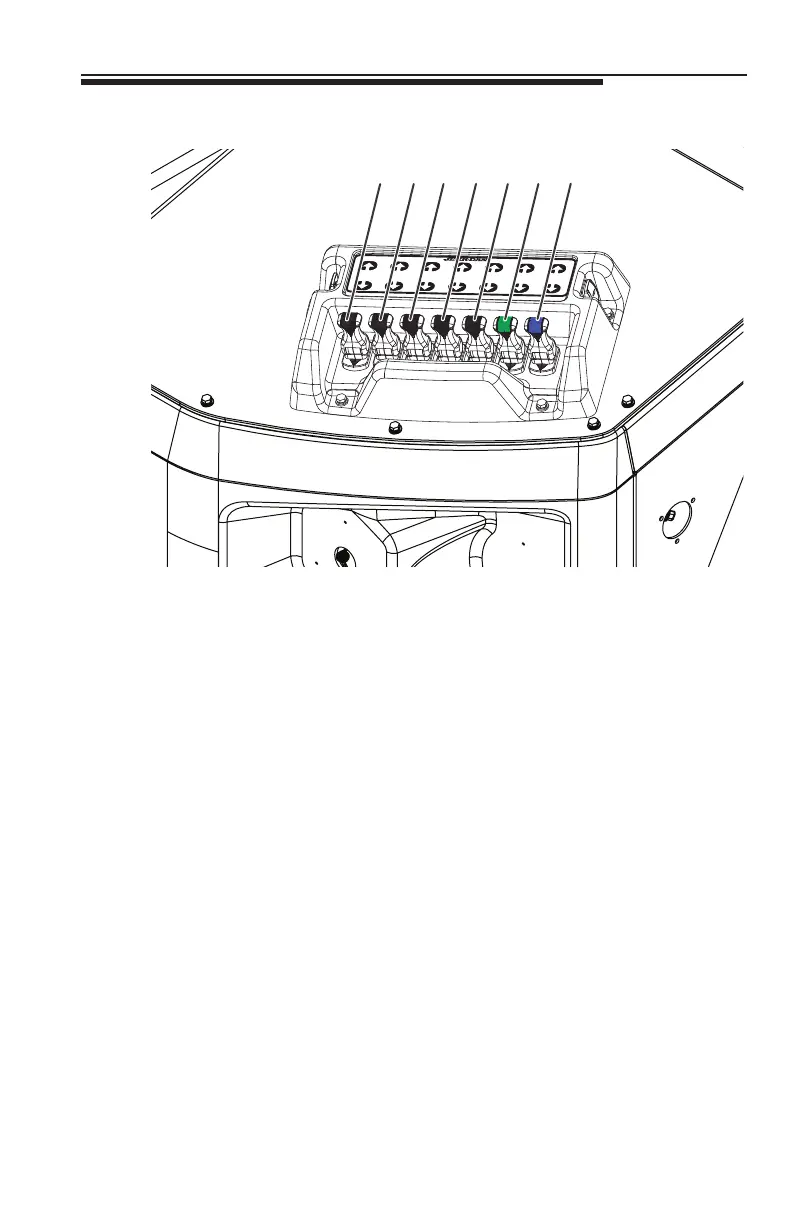

3.3 IN-BODY CONTROLS - RIGHT HAND
1001
8-A
30004
OU
T
IN
U
P
DN
U/L
EXT
U/L
T
IL
T
BOO
M
LI
F
T
BOO
M
EXT
L
H
WINC
H
R
H
WINC
H
DN
UP
OUT
IN
I
N
OUT
I
N
OU
T
CL
S
OP
N
GRID
2
1
3
4
5
6
7
1. Left Hand Winch - In/Out : Controls the wire rope winding/
unwinding function of the LH winch.
2. Right Hand Winch - In/Out : Controls the wire rope winding/
unwinding function of the RH winch
3. Boom - Extend/Retract : Controls the boom extend/retract
functions.
4. Boom - Raise/Lower : Controls the boom raise/lower
functions.
5. Underlift Boom Tilt - Raise/Lower : Controls the underlift boom tilt raise/
lower functions.
6. Underlift Boom - Extend/Retract : Controls the underlift boom extend/
retract functions.
7. Hydraulic Grid Arms - Open/Close
(If Equipped)
: Controls the hydraulic grid open/close
functions.
