Jerr-Dan MPL-40 - Function Wired Hand Controller (if Equipped)

Section 3 - Controls & Indicators
3-4 5376000277

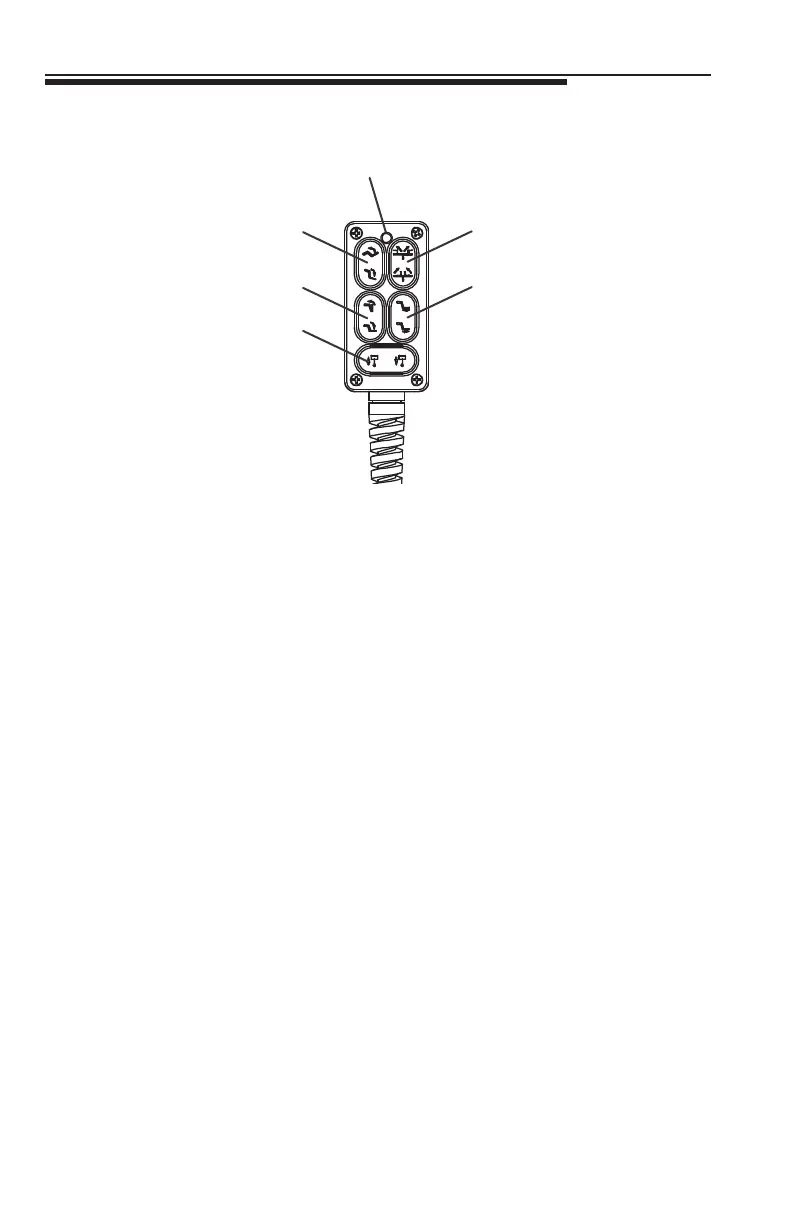

3.4 10 FUNCTION WIRED HAND CONTROLLER
(IF EQUIPPED)
2
4
3
5
6
1
1. Power/Function Indicator : “Red” - Power On/”Green” - Function
Operated
2. Underlift Boom - Raise/Lower : Controls the underlift boom raise/
lower functions.
3. Hydraulic Grid - Open/Close : Controls the hydraulic grid open/close
functions.
4. Underlift Boom Tilt - Raise/Lower : Controls the underlift boom tilt raise/
lower functions.
5. Underlift Boom - Extend/Retract : Controls the underlift boom extend/
retract functions.
6. Winch - In/Out : Controls the wire rope winding/
unwinding functions of the (Single)
winch.
