Jerr-Dan MPL-40 - Function Wireless Hand Controller (if Equipped)

Section 3 - Controls & Indicators
3-5 5376000277

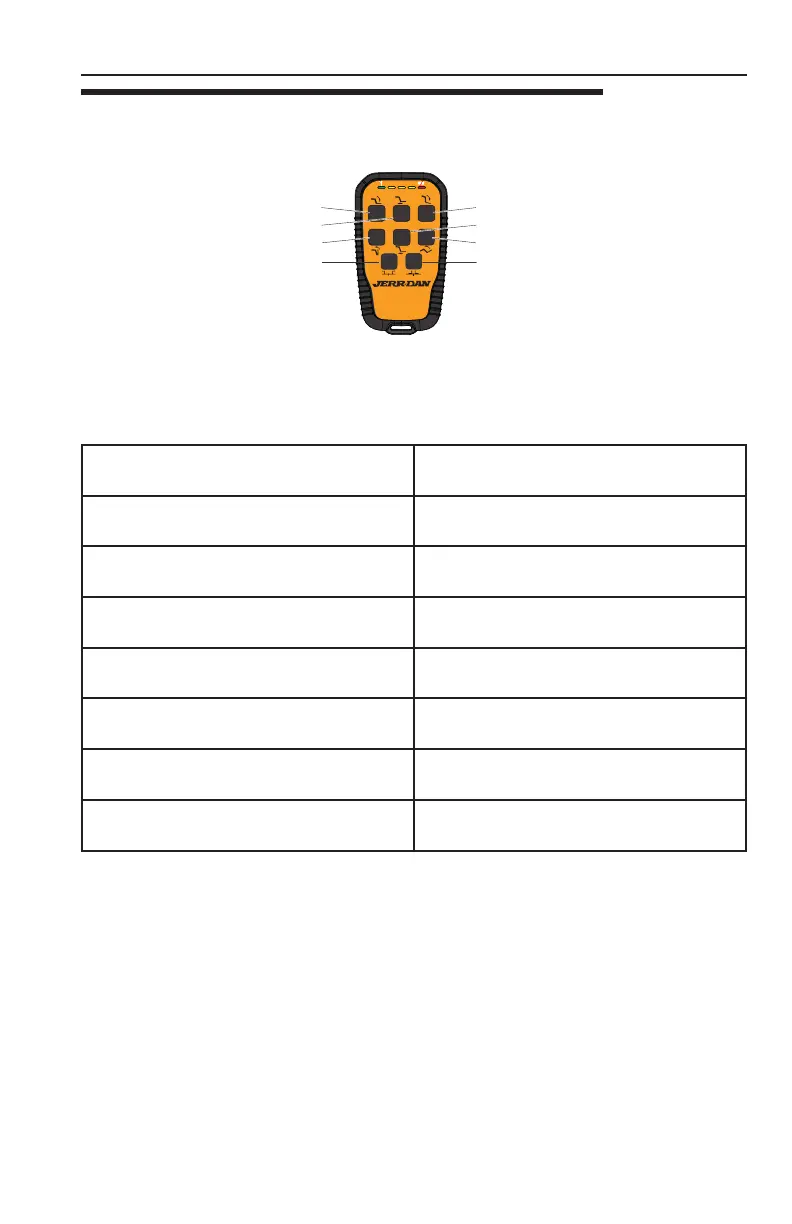

3.5 8 FUNCTION WIRELESS HAND CONTROLLER
(IF EQUIPPED)
ca7055 A-1
TILT LIFTEXT
LED1 LED2 LED3 LED4 LED5
78
46
13
25
CLOSE OPEN
G
R
I
D
1. Underlift Boom Tilt – Down : Controls the tilt down function of the
underlift boom.
2. Underlift Boom Extend – Out : Controls the extend function of the
underlift boom.
3. Underlift Boom – Down : Controls the lowering function of the
underlift boom.
4. Underlift Boom Tilt – Up : Controls the tilt up function of the
underlift boom.
5. Underlift Boom Retract – In : Controls the retract function of the
underlift boom.
6. Underlift Boom – Up : Controls the raising function of the
underlift boom.
7. Grid Arms - Close : Controls the close function of the
underlift grid arms.
8. Grid Arms - Open : Controls the open function of the
underlift grid arms..
NOTE: Audible alarm will sound when transmiter is removed from the trans-
mitter holder with the ignition switch turned“ON”. (If Equipped)
