Section 3 - Controls & Indicators
3-6 5376000277

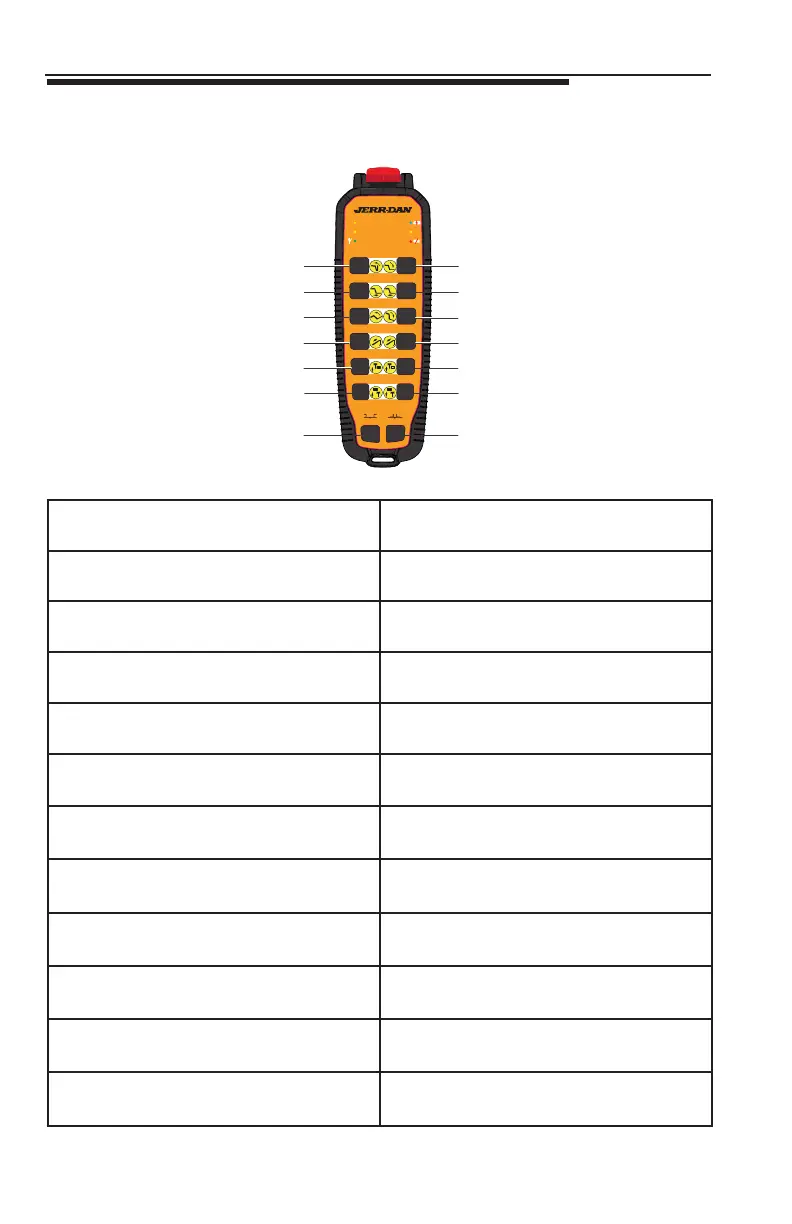

3.6 14 FUNCTION WIRELESS HAND CONTROLLER
(IF EQUIPPED)
ca7056 A-2
RH WINCH
BOOM EXT
LH WINCH
LIFT
EXT
TILT
Radio Link active (flashing) - LED1
LED2
LED3
LED4
LED5 - Low battery indication
Charge indication
ON/OFF
12
34
56
78
910
11 12
13 14
CLOSE OPEN
G
R
I
D
1. Grid Arms - Close : Controls the close function of the
underlift grid arms.
2. Grid Arms - Open : Controls the open function of the
underlift grid arms..
3. Rear RH Winch – In : Controls the wire rope winding/
functions of the RH winch.
4. Rear RH Winch – Out : Controls the wire rope unwinding
functions of the RH winch
5. Front LH Winch – In : Controls the wire rope winding/
functions of the LH winch.
6. Front LH Winch – Out : Controls the wire rope unwinding
functions of the LH winch.
7. Wrecker Boom Retract – In : Controls the retract function of the
wrecker boom
8. Wrecker Boom Extend – Out : Controls the extend function of the
wrecker boom.
9. Boom – Up : Controls the raising functions of the
boom
10. Boom – Down : Controls the lowering functions of the
boom.
11. Underlift Boom Retract – In : Controls the retract functions of the
underlift boom.
12. Underlift Boom Extend – Out : Controls the extend functions of the
underlift boom
