Section 6 - Maintenance
5376000277 6-13
LUBRICATION POINTS
Note: The following numbers correspond to those shown on the lubrication charts
on Pages 6-11 and 6-12.

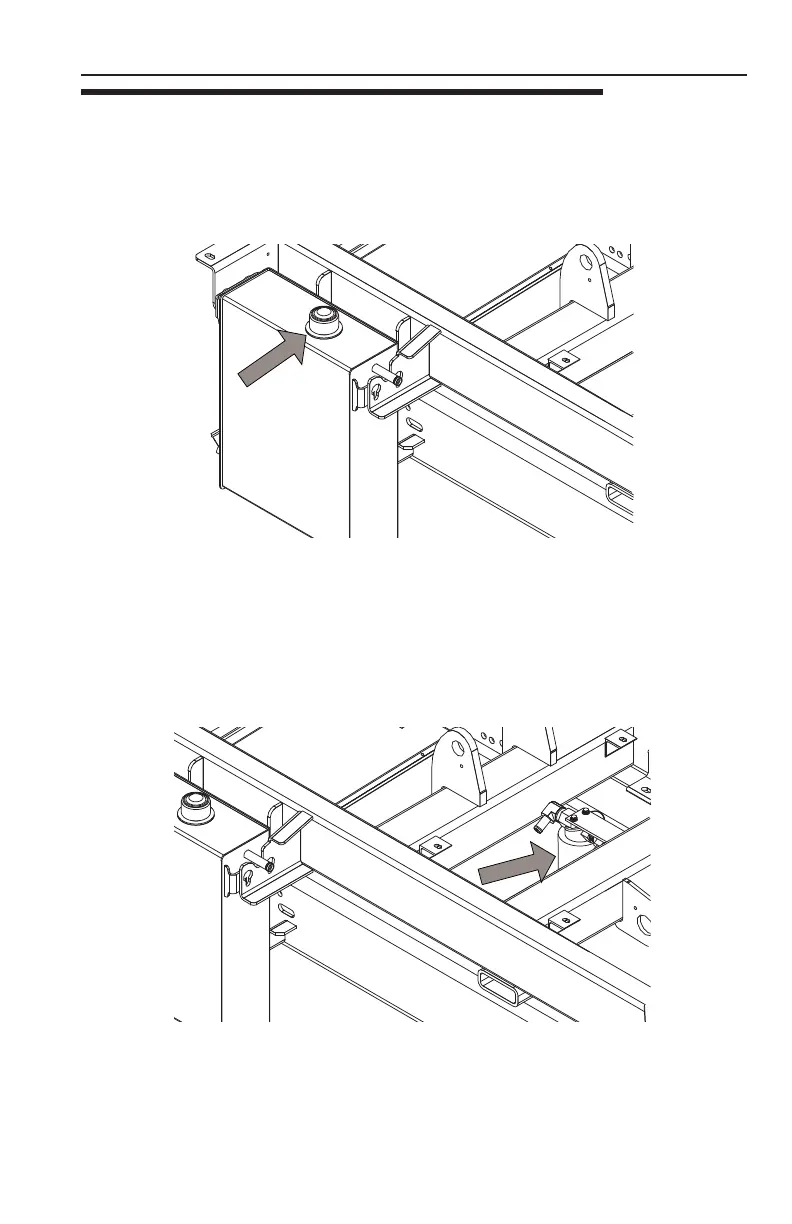

C. Hydraulic Reservoir Oil Level
Lube Point(s) – Fill Cap
Interval – Check level every 100 hours or bi-monthly
Change every 1000 hours
F. Hydraulic Reservoir Return Filter
Lube Point(s) – Replaceable Element
Interval – Check level every 250 hours or semi-
annually
