Jerr-Dan MPL-40 - In-Body Controls

Section 3 - Controls & Indicators
3-2 5376000277

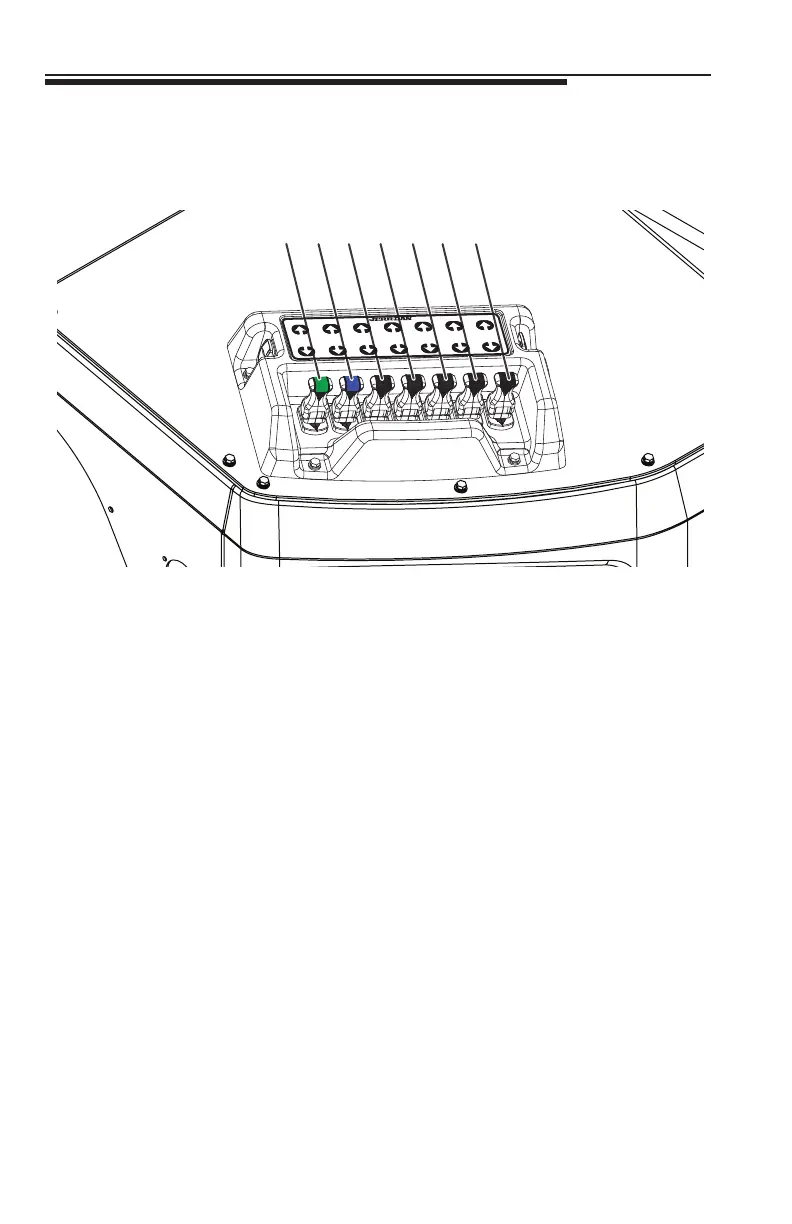

3.2 IN-BODY CONTROLS - LEFT HAND
1
2
3
4
5
6
7
1001 7-A30004
OU
T
I
N
U
P
D
N
U/L
EXT
U/L
TI
L
T
BOOM
LI
FT
BOO
M
EXT
R
H
WINCH
LH
WINCH
D
N
U
P
OU
T
I
N
I
N
OU
T
I
N
OU
T
CL
S
OP
N
GRID
1. Left Hand Winch - In/Out : Controls the wire rope winding/
unwinding function of the LH winch.
2. Right Hand Winch - In/Out : Controls the wire rope winding/
unwinding function of the RH winch
3. Boom - Extend/Retract : Controls the boom extend/retract
functions.
4. Boom - Raise/Lower : Controls the boom raise/lower
functions.
5. Underlift Boom Tilt - Raise/Lower : Controls the underlift boom tilt raise/
lower functions.
6. Underlift Boom - Extend/Retract : Controls the underlift boom extend/
retract functions.
7. Hydraulic Grid Arms - Open/Close
(If Equipped)
: Controls the hydraulic grid open/close
functions.
