Section 4 : Operation
4-10 5376000277

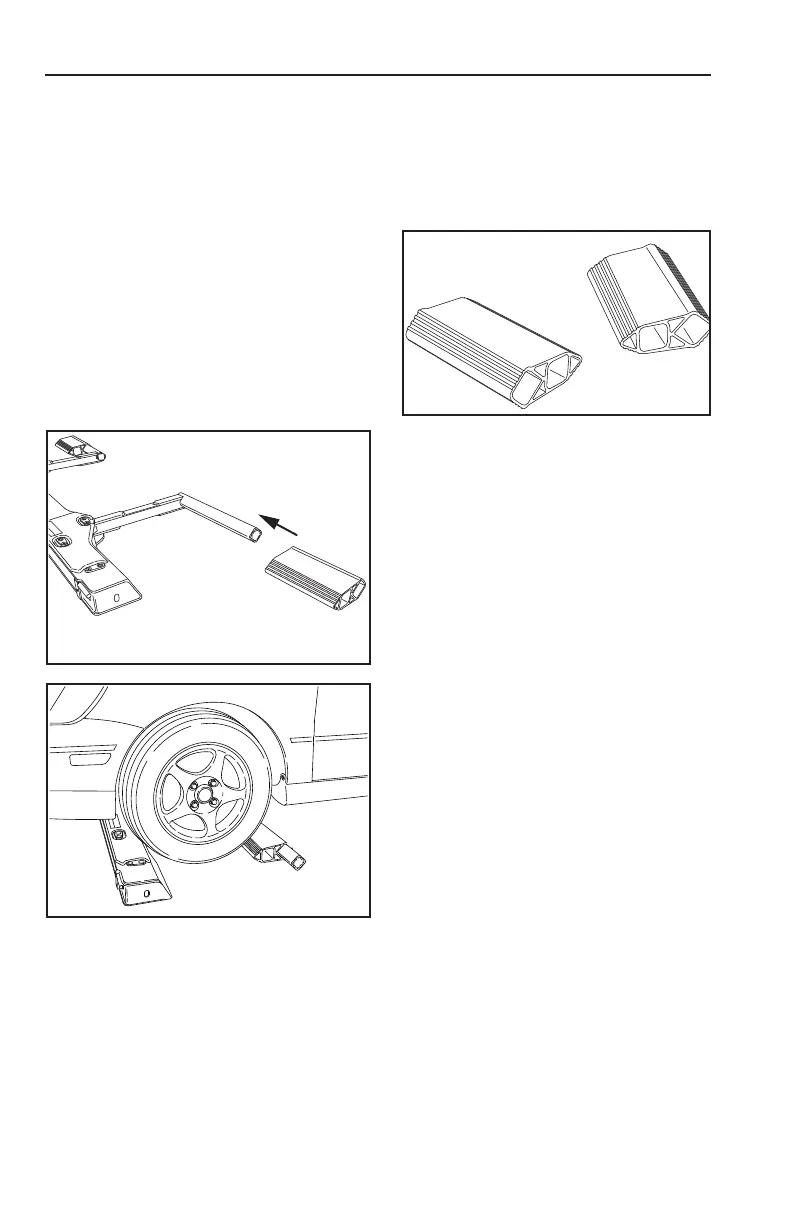

WHEEL GRID SPACERS
The MPL-40 with the hydraulic grid is supplied with a set wheel grid spacers.
They can be used to pick up a vehicle with small diameter tires or even a
vehicle without wheels and tires.
The following steps should be followed
to properly install the wheel grid
spacers:
1. Slide the back side of the wheel
spacer over the wheel grid arm.
2. Close the grid arms around
the tires to secure the towed
vehicle. Make sure that the
arm is fully closed and in its
over center locked position.
3. Visually inspect the tire to grid
contact before proceeding.
