11.2 Feed and thread selection
1. Refer to the feed and thread charts found on
the gear box faceplate (A, Fig. 18 and sect.
13.0 of this manual).
2. Move levers (B, C, D, E, F, Fig. 18) to the
appropriate positions according to the chart.
11.3 Change gears replacement
The 25T, 127T, 50T gears are installed in the end
gear compartment when delivered from the factory.
This combination will cover most inch feeds and
threads under normal circumstances.
The 30T, 32T, and two 40T gears found in the tool
box are used with different combinations as
indicated on feed and thread tables (A, Fig. 18).
1. Disconnect machine from power source
(unplug).
2. Open the door on the left end of the
headstock.
3. Loosen nuts (A & B, Fig. 19).
4. Move quadrant (C, Fig. 19) out of the way and
hold in place temporarily by tightening nut (B,
Fig. 19).
5. Remove hex socket cap screws (D and/or E,
Fig. 19), depending on which gear is to be
changed.
6. Install new gear(s) and tighten in place with a
hex socket cap screw.
7. Loosen nut (B, Fig. 19), move quadrant back
so teeth mesh on gears, and tighten nuts (A &
B, Fig. 19).
CAUTION: Make sure there is a backlash of
.002”-.003” between gears. Setting the gears
too tight will cause excessive noise and wear.
8. Close the door and connect machine to power
source.
11.4 Automatic feed operation and
feed changes
1. Move the forward/reverse selector (A, Fig. 20)
up or down depending on desired direction.
2. Set selector levers (A, B, C, D, Fig. 21) to
desired rate.
Note: For feeding, lever (D) will be set at "F"
or "D", depending on desired feed rate.

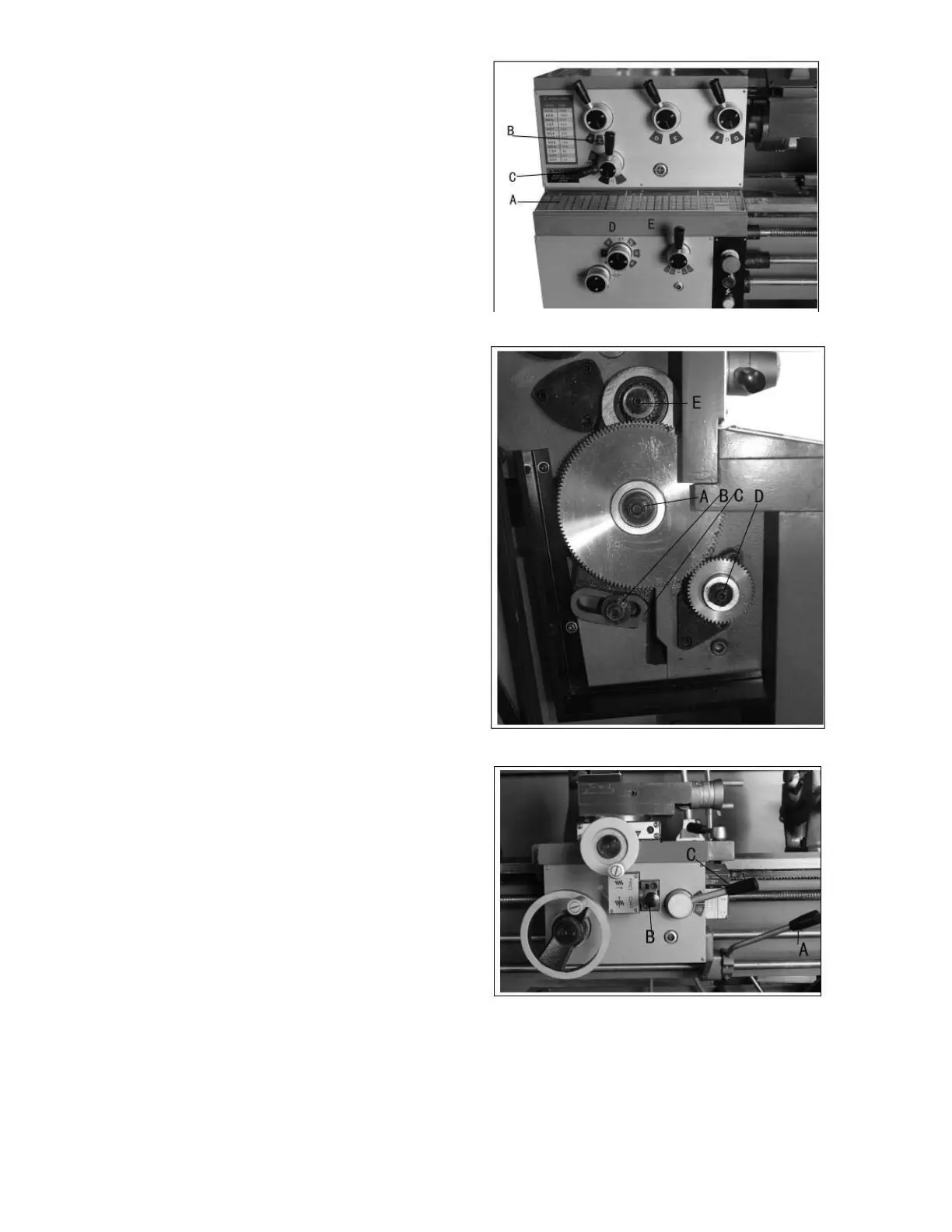

Figure 18
