Jet GH-1440 - Electrical Components (Exploded View); Electrical Components (Parts List)

64

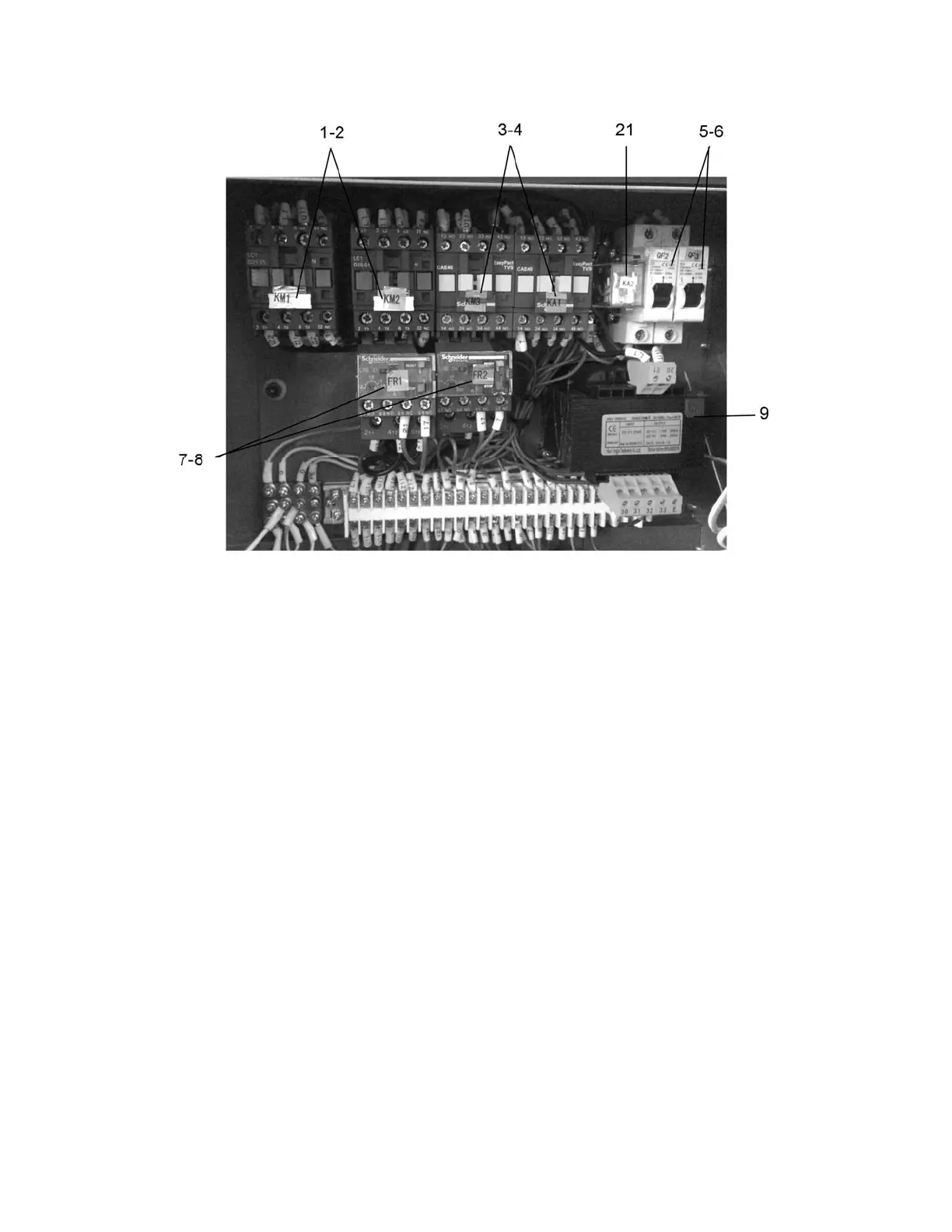

14.22.1 Electrical Components – Exploded View
14.22.2 Electrical Components – Parts List
Index No. Part No. Symbol* Description Size Qty
1 ................ GH1440K-KM1 ....... KM1 ..................Magnetic Starter ................................ LC1-D2501 ................... 1
2 ................ GH1440K-KM1 ....... KM2 ..................Magnetic Starter ................................ LC1-D2501 ................... 1
3 ................ GH1440K-KM3 ....... KM3 ..................Coolant Pump Contactor ................... CA2-DN40B7 ................ 1
4 ................ GH1440K-KM3 ....... KA1 ..................Control Contactor .............................. CA2-DN40B7 ................ 1
5 ................ GH1440K-QF2 ....... QF2 ..................Breaker .............................................. DZ47-63 ........................ 1
6 ................ GH1440K-QF2 ....... QF3 ..................Breaker .............................................. DZ47-63 ........................ 1
7 ................ GH1440K-FR1 ....... FR1 ..................Motor Overload Relay........................ LR2-D1321N ................. 1
8 ................ GH1440K-FR2 ....... FR2 ..................Motor Overload Relay........................ LR2-D1304N ................. 1
9 ................ GH1440K-TC ......... TC ....................Transformer ....................................... JBK5-100TH ................. 1
10 .............. GH1440K-SQ2 ....... SQ2 ..................Door Switch ....................................... QKS8 ............................ 1
11 .............. GH1440K-QS1 ....... QS1 ..................Power On/Off Switch ......................... VCD0 ............................ 1
12 .............. GH1440K-SQ1 ....... SQ1 ..................Brake Switch...................................... TM-1701 ....................... 1
13 .............. GH1440K-SB1 ....... SB1 ..................Off Switch .......................................... ZB2-BS54C ................... 1
14 .............. GH1440K-SB2 ....... SB2 ..................Jog Switch ......................................... ZB2BA3C ...................... 1
15 .............. GH1440K-HL .......... HL.....................Power Indicator Light ......................... XB7-EVF3LC ................ 1
16 .............. GH1440K-SA2 ....... SA2 ..................Coolant Pump Switch ........................ ZB2-BD2C .................... 1
17 .............. GH1440K-SQ3 ....... SQ3 ..................Forward Switch .................................. TM1306 ......................... 1
18 .............. GH1440K-SQ3 ....... SQ4 ..................Reverse Switch.................................. TM1306 ......................... 1
19 .............. GH1440K-PX1 ....... PX1 ..................Switch ................................................ LJ12A3-4-J/EZ .............. 1
20 .............. GH1440K-EL .......... EL .....................Lamp.................................................. JC34A ........................... 1
21 .............. GH1440K-KA2 ....... KA2 ..................Relay ................................................. HH52P .......................... 1
* refer to wiring diagrams
