8
5.0 Uncrating
Open shipping crate and check for shipping
damage. Report any damage immediately to your
distributor and shipping agent. Do not discard any
shipping material until the Lathe is assembled and
running properly.
Compare the contents of your crate with the
following parts list to make sure all parts are intact.
Missing parts, if any, should be reported to your
distributor.
Read and understand the
entire contents of this manual before
attempting set-up or operation. Failure to
comply may cause serious injury!
5.1 Contents of shipping container
1 Lathe
1 Steady Rest (mounted on lathe)
1 Follow Rest (mounted on lathe)
1 6" Three Jaw Chuck w/ Top Reversing Jaws
(mounted on lathe)
1 8" Four Jaw Chuck with Backplate (strapped to
container)
1 12" Face Plate (strapped to container)
1 Backplate
1 Tool Box (p/n GH1440-TBCP)

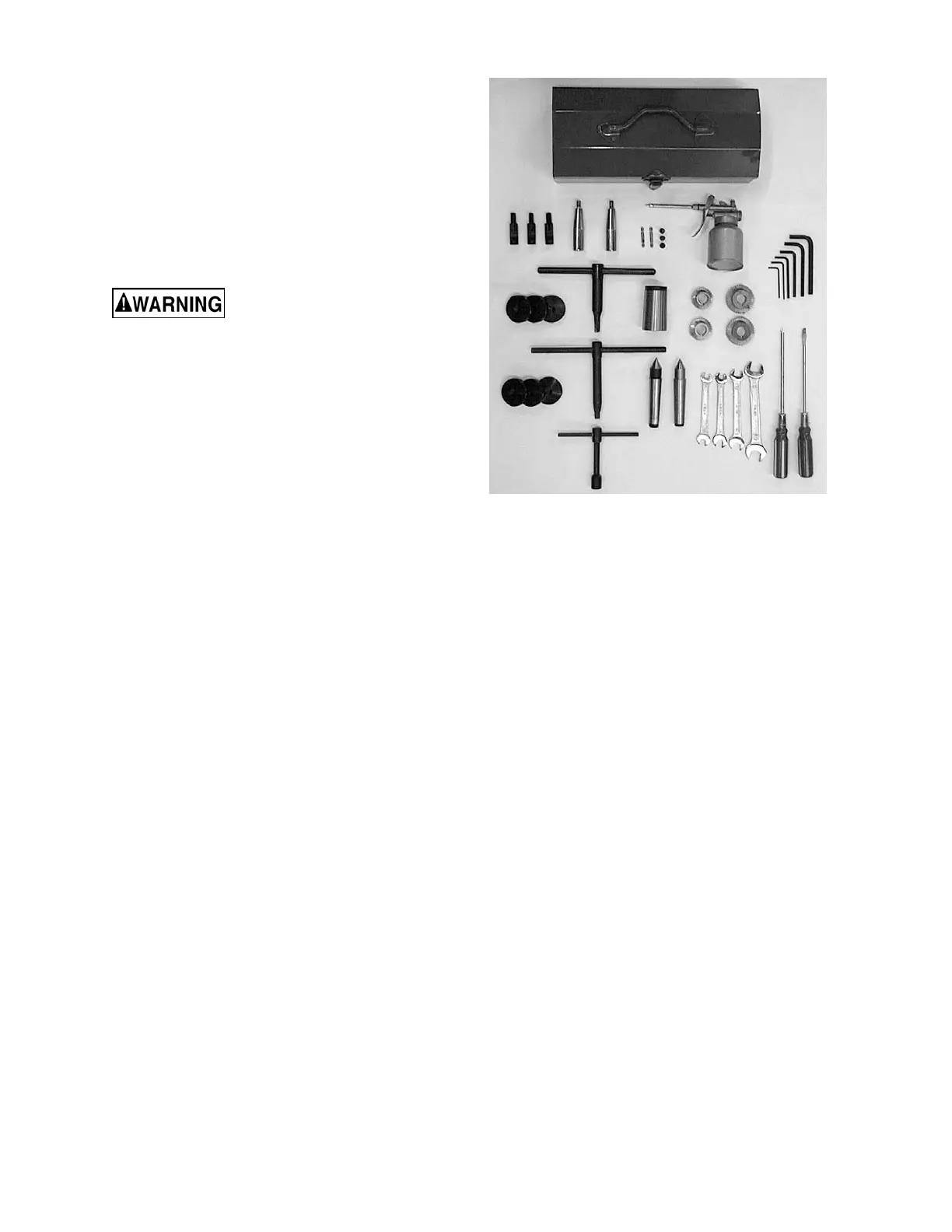

Tool Box Contents (p/n GH1440-TBCP):
(Fig. 1)
1 No. 1 Cross Point Screwdriver
1 No. 1 Flat Blade Screwdriver
4 Open End Wrench
(9-11, 10-12, 12-14, 17-19mm)
7 Hex Socket Wrench (2,2.5, 3, 4, 5, 6, 8mm)
2 Shear Pins
1 30T Change Gear
1 32T Change Gear
2 40T Change Gear
2 Handles
1 Can, Gray Touchup Paint
1 Oil Gun
1 Live Center
2 No. 3 Morse Taper Dead Center
1 No. 5 to No. 3 Spindle Sleeve
6 Leveling Pads
6 Leveling Bolts with Hex Nuts
2 Hex Socket Cap Screw
1 Chuck Key
1 Key for Cam Locks
1 Tool Post Wrench
1 Taper Piece
1 Operating Instructions and Parts Manual
1 Product Registration Card
Figure 1
