Jet GH-1440 - Chuck Guard Assembly - Exploded View; Chuck Guard Assembly - Parts List

59

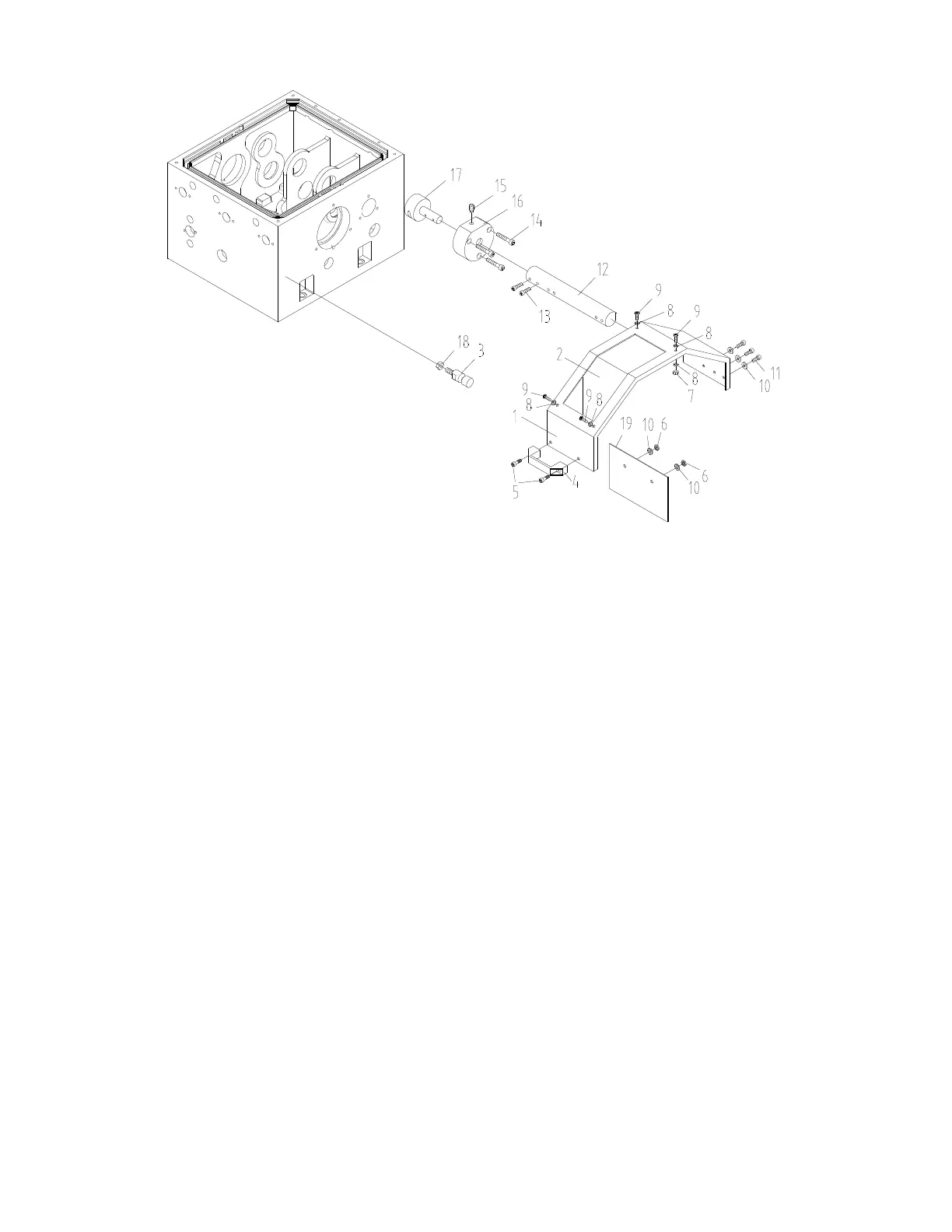

14.18.1 Chuck Guard Assembly – Exploded View
14.18.2 Chuck Guard Assembly – Parts List
Index No. Part No. Description Size Qty
................. GH1440K-CGA ......... Chuck Guard Assembly (#1 thru 19) ..................... .................................... 1
1 ............... GH1440K-19701J ...... Chuck Guard ......................................................... .................................... 1
2 ............... GHB1340A-19501E ... Guard Acrylic Window ........................................... .................................... 1
3 ............... ZX-19704E ................ Fixing Rod ............................................................. .................................... 1
4 ............... A90 ........................... Handle .................................................................. .................................... 1
5 ............... TS-1503031 .............. Hex Socket Hd Cap Screw..................................... M6x12 .......................... 2
6 ............... TS-1540041 ............. Hex Nut ................................................................ M6 ............................... 2
7 ............... TS-1540021 .............. Hex Nut ................................................................. M4 ............................... 4
8 ............... TS-1550021 .............. Plain Washer ......................................................... 4 mm ........................... 8
9 ............... TS-1532042 .............. Cross Recessed Pan Head Screw ......................... M4x12 .......................... 4
10 ............. TS-1550041 .............. Plain W asher ......................................................... 6 mm ........................... 3
11 ............. TS-1534032 .............. Cross Recessed Pan Head Screw ......................... M6x10 .......................... 3
12 ............. GH1440K-19702J ...... Rest Bar ............................................................... .................................... 1
13 ............. TS-1524021 .............. Hex Socket Set Screw .......................................... M8x10 .......................... 2
14 ............. TS-1503071 .............. Hex Socket Hd Cap Screw..................................... M6x30 .......................... 3
15 ............. TS-1524041 .............. Hex Socket Set Screw ........................................... M8x16 .......................... 1
16 ............. GHB1340A19704 ...... Switch Box ............................................................ .................................... 1
17 ............. GHB1340A19702E .... Shaft ..................................................................... .................................... 1
18
.............. TS-1540061 .............. Hex Nut .................................................................... M8 ................................. 1
19
.............. GH1440K-19703J ..... Panel ........................................................................ ...................................... 1
