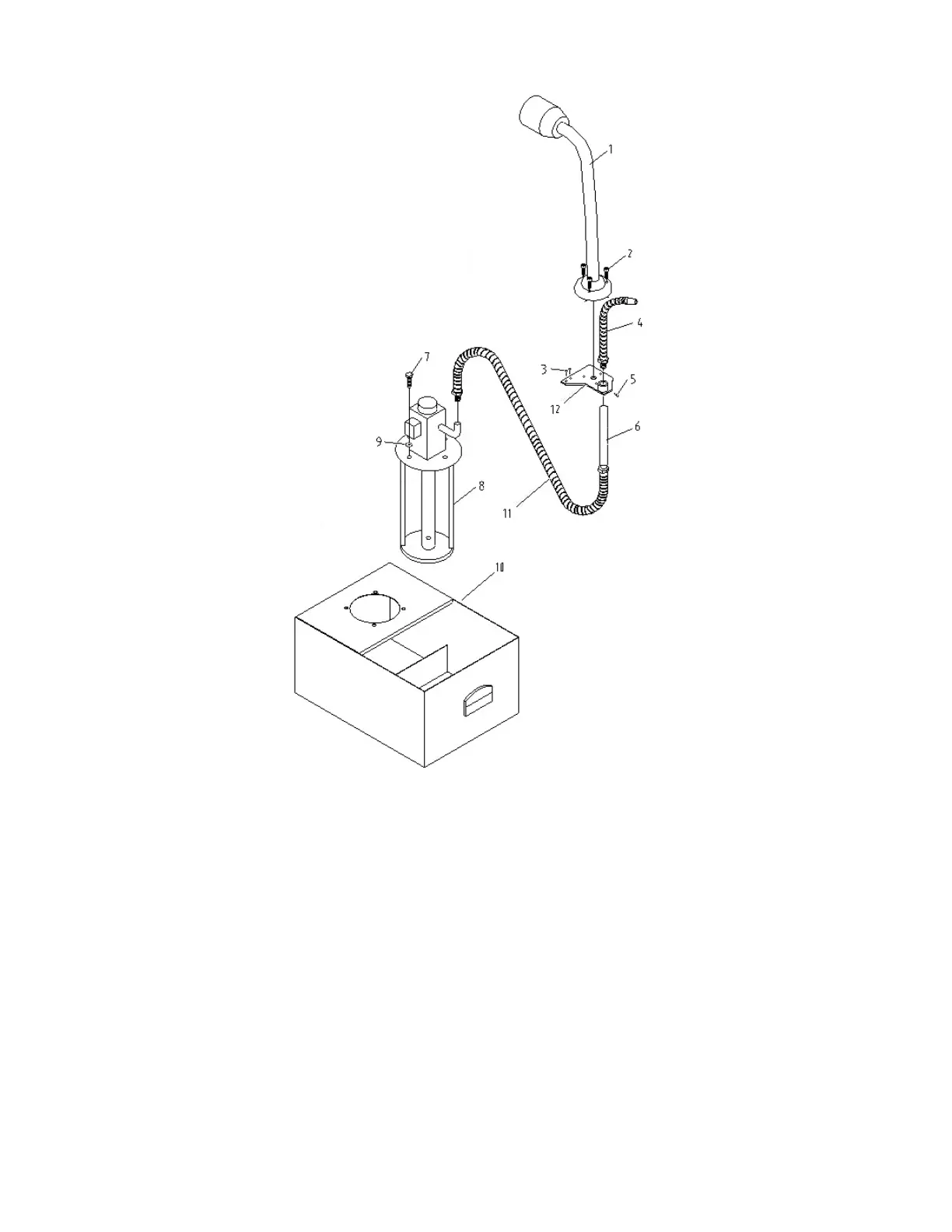

14.17.1 Coolant and Work Light Assembly – Exploded View
14.17.2 Coolant and Work Light Assembly – Parts List
Index No. Part No. Description Size Qty
1 ................ GHB1340-EL ............. Work Light................................................................ ...................................... 1
2 ................ TS-1503051 .............. Hex Socket Hd Cap Screw ...................................... M6x20 ........................... 3
3 ................ TS-1502051 .............. Hex Socket Hd Cap Screw ...................................... M5x20 ........................... 3
4 ................ GH1440K-1704 ......... Coolant Nozzle ........................................................ C2-77 ............................ 3
5 ................ TS-1503041 .............. Hex Socket Hd Cap Screw ...................................... M6x16 ........................... 1
6 ................ GHB1440A01739 ...... Rubber Tube ............................................................ ...................................... 1
7 ................ TS-1482011 .............. Hex Cap Bolt............................................................ M6x10 ........................... 4
8 ................ YSB-12TH ................ Coolant Pump .......................................................... 3PH ............................... 1
.................. YDB-12TH ................. Coolant Pump .......................................................... 1PH ............................... 1
9 ................ TS-1550041 .............. Flat Washer ............................................................. 6 mm ............................. 4
10 .............. GH1440K01715 ........ Coolant Tank ........................................................... ...................................... 1
11 .............. GH1440K1711 .......... Tube......................................................................... 600 mm ......................... 1
12 .............. GH1440K18711 ........ Support .................................................................... ...................................... 1
