Jet GH-1440 User Manual

55

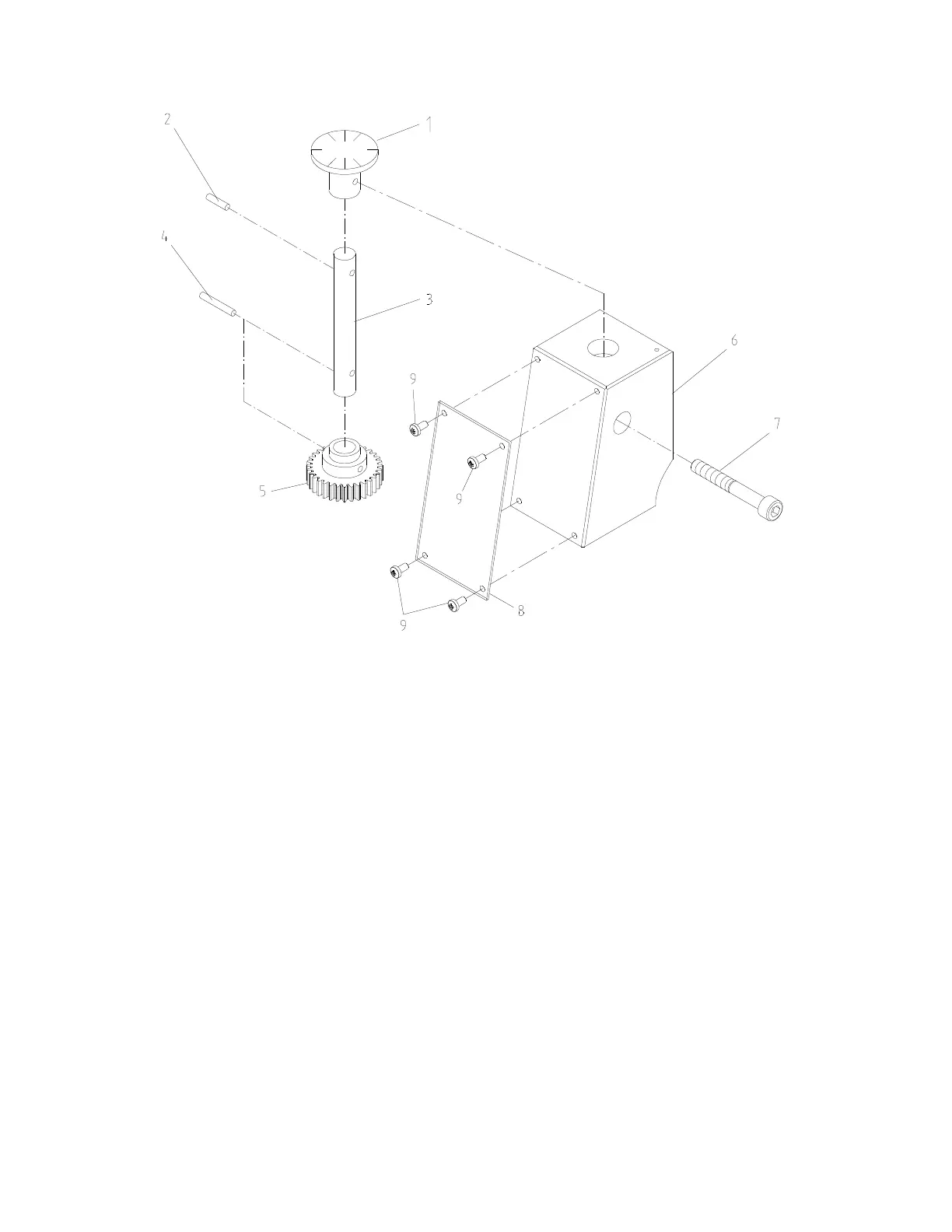

14.15.1 Thread Dial Assembly – Exploded View
14.15.2 Thread Dial Assembly – Parts List
Index No. Part No. Description Size Qty
.................. GH1440K-TDA .......... Thead Dial Assembly (includes #1 thru 9) ............... ........................................
1 ................ 06-22 ......................... Dial........................................................................... ...................................... 1
2 ................ GB879-3x12 .............. Spring Pin ................................................................ 3x12 .............................. 1
3 ................ 06-23 ......................... Shaft ........................................................................ ...................................... 1
4 ................ GB879-3x20 .............. Spring Pin ................................................................ 3x20 .............................. 1
5 ................ 06-25 ......................... Gear ......................................................................... 32T ................................ 1
6 ................ 06-24 ......................... Body......................................................................... ...................................... 1
7 ................ TS-1503101 .............. Hex Socket Hd Cap Screw ...................................... M6x45 ........................... 1
8 ................ GH1440K-11305-1 .... Graphic Plate – Thread Dial .................................... ...................................... 1
9 ................ TS-1531012 .............. Screw ....................................................................... M3x6 ............................. 4
