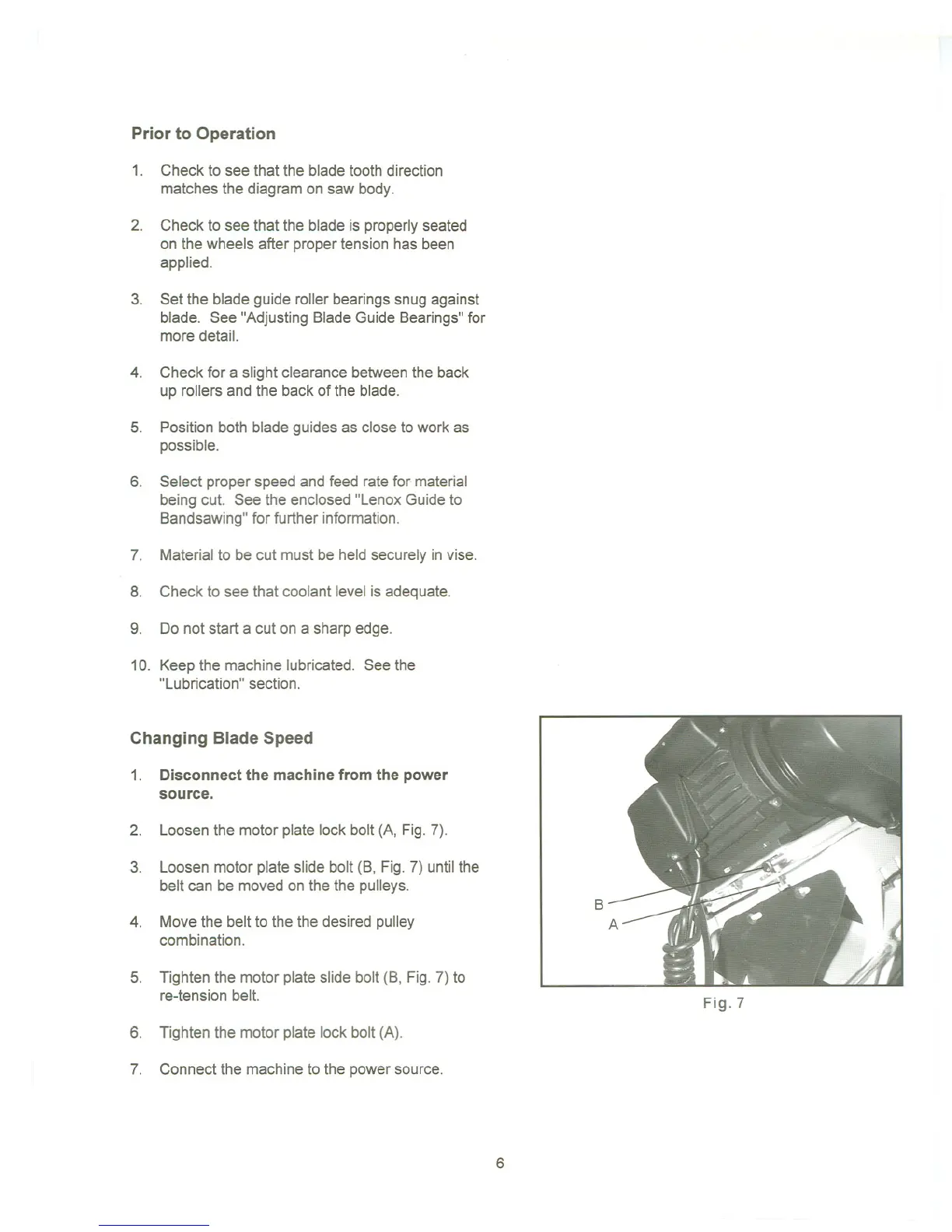

Prior to Operation
1. Check to see that the blade tooth direction
matches the diagram on saw body.
2. Check to see that the blade is properlyseated
on the wheels after propertension has been
applied.
3. Set the blade guide roller bearingssnug against
blade. See "Adjusting Blade Guide Bearings"for
more detail.
4. Check for a slight clearance between the back
up rollers and the back of the blade.
5. Position both blade guides as close to work as
possible.
6. Select proper speed and feed rate for material
being cut. See the enclosed "Lenox Guide to
Bandsawing"for further information.
7. Material to be cut must be held securely in vise.
8. Check to see that coolant level is adequate.
9.
Do not start a cut on a sharp edge.
1O. Keep the machine lubricated. See the
"Lubrication" section.
Changing Blade Speed
1. Disconnect the machine from the power
source.
2.
Loosen the motor plate lock bolt (A, Fig. 7).
3. Loosen motor plate slide bolt (B, Fig. 7) until the
belt can be moved on the the pulleys.
4. Move the belt to the the desired pulley
combination.
5. Tighten the motor plate slide bolt (B, Fig.7) to
re-tension belt.
6. Tighten the motor plate lock bolt (A).
7. Connect the machine to the power source.
Fig.7
6
