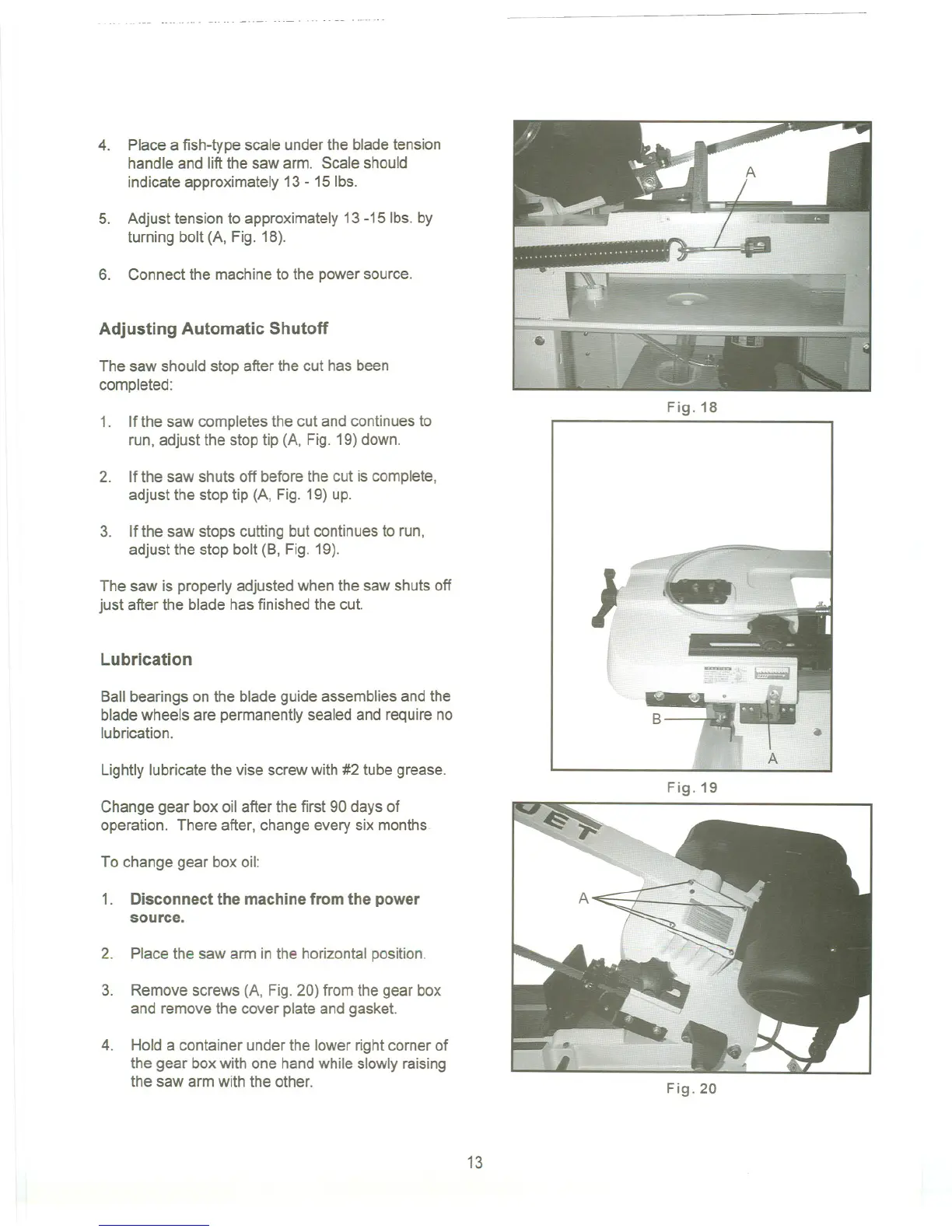

4. Place a fish-type scale under the bladetension
handle and lift the saw arm. Scale should
indicate approximately 13 - 15 Ibs.
5. Adjust tension to approximately 13-15 Ibs. by
turning bolt (At Fig. 18).
6. Connect the machine to the power source.
Adjusting Automatic Shutoff
The saw should stop after the cut has been
completed:
1. If the saw completes the cut and continuesto
run, adjust the stop tip (A, Fig. 19) down.
2. If the saw shuts off before the cut is complete,
adjust the stop tip (A, Fig. 19) up.
3. If the saw stops cutting but continues to run,
adjust the stop bolt (B, Fig. 19).
The saw is properly adjusted when the saw shuts off
just after the blade has finished the cut.
Lubrication
Ball bearings on the blade guide assemblies and the
blade wheels are permanently sealed and require no
lubrication.
Lightly lubricate the vise screw with #2 tube grease.
Change gear box oil after the first 90 days of
operation. There after, change every six months
To change gear box oil:
1. Disconnect the machine from the power
source.
2. Place the saw arm in the horizontal position.
3. Remove screws (A, Fig. 20) from the gear box
and remove the cover plate and gasket.
4. Hold a container under the lower right corner of
the gear box with one handwhile slowly raising
the saw arm with the other.
Fig.18
}/
I
.
A
Fig.19
Fig.20
13
