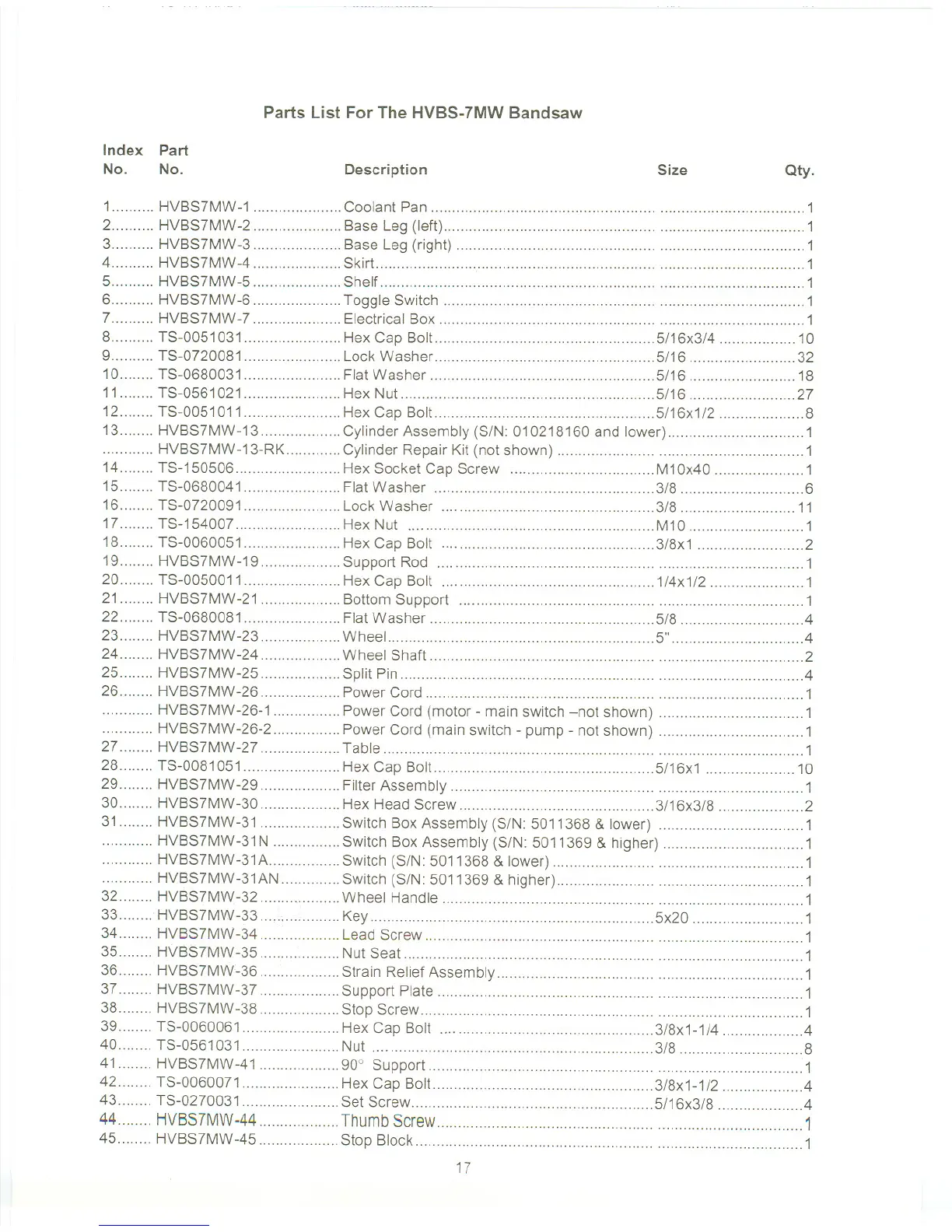

Jet HVBS-7MW - Parts List

Parts List For The HVBS-7MW Bandsaw
Index Part
No. No.
Description
Size
Qty.
1 HVBS7MW-1 Coolant Pan , 1
2 HVBS7MW-2 Base Leg (left) 1
3 HVBS7MW-3 Base Leg (right) 1
4 HVBS7MW-4 Skirt 1
5 HVBS7MW-5 Shelf 1
6 HVBS7MW-6 Toggle Switch 1
7 HVBS7MW-7 ElectricalBox 1
8 TS-0051 031 Hex Cap Bolt 5/16x3/4 '''''''''''''''''' 10
9 TS-0720081 Lock Washer 5/16 32
10 TS-0680031 Flat Washer 5/16 18
11 TS-0561 021 Hex NuL 5/16 27
12 TS-0051 011 Hex Cap Bolt "'''''''''''''''''''''''''''''''''''''''''''''''''' 5/16x1/2 8
13 HVBS7MW-13 """""'"'''''' Cylinder Assembly (SIN: 010218160 and lower) 1
HVBS7MW-13-RK Cylinder Repair Kit (not shown) 1
14 TS-150506 Hex Socket Cap Screw M1Ox40 1
15 TS-0680041 Flat Washer '''''''''''''''''''''''''''''''''''''''''''''''''''' 3/8 6
16 TS-0720091 Lock Washer 3/8 11
17 TS-154007 Hex Nut M10 1
18 TS-0060051 Hex Cap Bolt "" 3/8x1 2
19 HVBS7MW-19 Support Rod 1
20 TS-0050011 Hex Cap Bolt .." 1/4x1/2 1
21 HVBS7MW-21 Bottom Support 1
22 TS-0680081 Flat Washer 5/8 4
23 HVBS7MW-23 Wheel 5" 4
24 HVBS7MW-24 Wheel Shaft 2
25 HVBS7MW-25 Split Pin 4
26 HVBS7MW-26 Power Cord 1
HVBS7MW-26-1 Power Cord (motor - main switch -not shown) 1
HVBS7MW-26-2 Power Cord (main switch - pump - not shown) 1
27 HVBS7MW-27 """""""'"'' Table 1
28 TS-0081051 Hex Cap Bolt 5/16x1 10
29 HVBS7MW-29 Filter Assembly 1
30 HVBS7MW-30 Hex Head Screw 3/16x3/8 2
31 HVBS7MW-31 Switch Box Assembly (SIN: 5011368 & lower) 1
"'''''''''' HVBS7MW-31 N Switch Box Assembly (SIN: 5011369 & higher) 1
HVBS7MW-31A Switch (SIN: 5011368 & lower) 1
HVBS7MW-31AN Switch (SIN: 5011369 & higher) 1
32 HVBS7MW-32 ' " Wheel Handle 1
33 HVBS7MW-33 Key 5x20 1
34 HVBS7MW-34 Lead Screw 1
35 HVBS7MW-35 Nut Seat 1
36 HVBS7MW-36 Strain Relief Assembly 1
37 HVBS7MW-37 """"""""'" Support Plate 1
38 HVBS7MW-38 Stop Screw 1
39 TS-0060061 Hex Cap Bolt .." 3/8x1-1/4 4
40 TS-0561 031 Nut 3/8 8
41 HVBS7MW-41 90° Support 1
42 TS-0060071 Hex Cap Bolt 3/8x1-1/2 4
43 TS-0270031 Set Screw 5/16x3/8 4
44 HVBS7MW
-44 Thumb Screw 1
45 HVBS7MW-45 Stop Block 1
