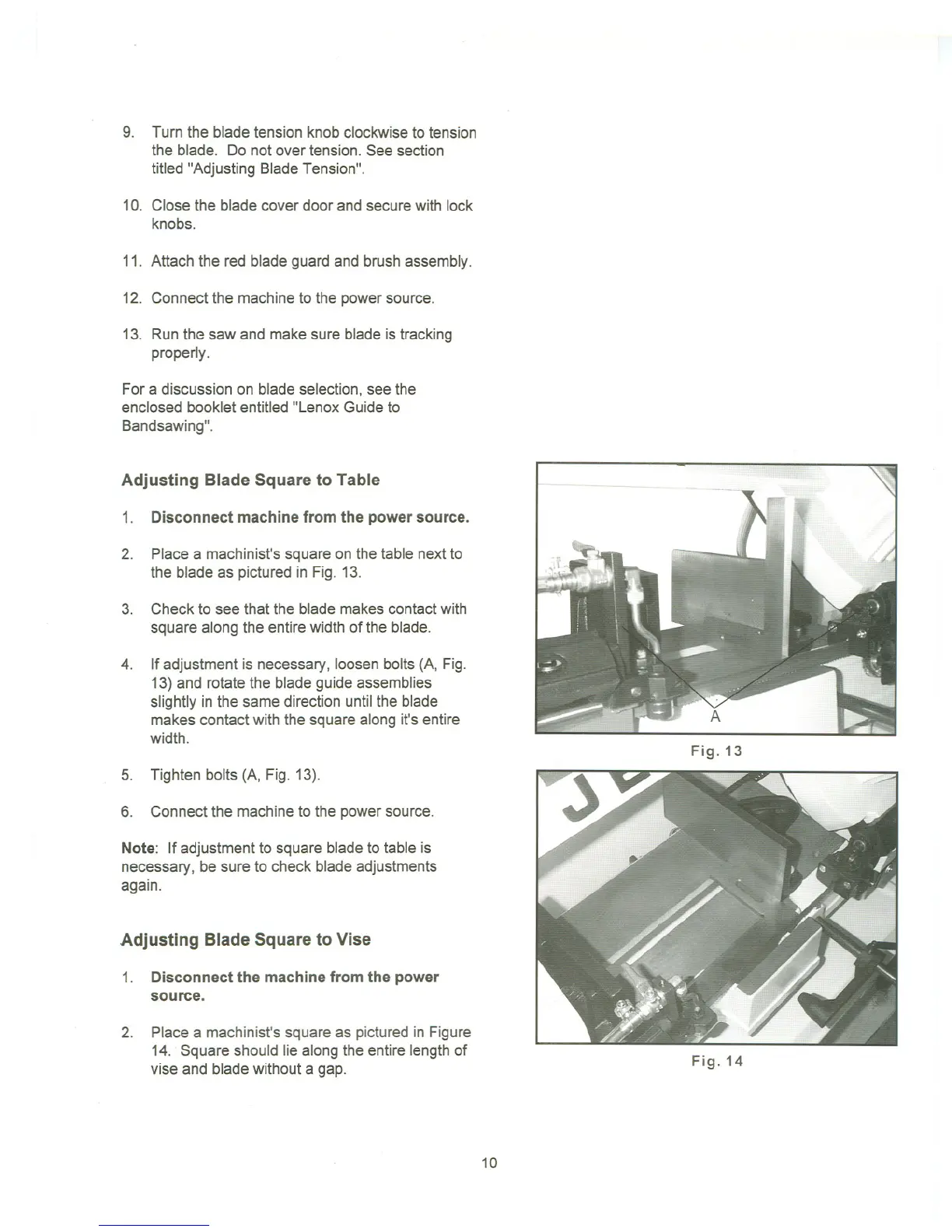

9. Turn the blade tension knob clockwise to tension
the blade. Do not over tension. See section
titled "Adjusting Blade Tension",
10. Close the blade cover door and securewith lock
knobs.
11. Attach the red blade guard and brush assembly.
12. Connect the machine to the power source.
13. Run the saw and make sure blade is tracking
properly.
For a discussion on blade selection, see the
enclosed booklet entitled "Lenox Guide to
Bandsawing".
Adjusting Blade Square to Table
1. Disconnect machinefromthe powersource.
2. Place a machinist's square on the table next to
the blade as pictured in Fig. 13.
3, Check to see that the blade makes contact with
square along the entire width of the blade.
4. If adjustment is necessary, loosen bolts (A, Fig.
13) and rotate the blade guide assemblies
slightly in the same direction until the blade
makes contact with the square along it's entire
width.
5. Tighten bolts (A, Fig. 13).
6. Connect the machineto the power source.
Note: If adjustment to square blade to table is
necessary, be sure to check blade adjustments
again.
Adjusting Blade Square to Vise
1. Disconnect the machine from the power
source.
2. Place a machinist's square as pictured in Figure
14. Square should lie along the entire length of
vise and blade without a gap.
----
Fig.13
Fig.14
10
