Daily inspect the function and existence of the safety
appliances before you start the machine.
Do not attempt operation in this case, protect the machine
by unplugging the power cord.
Before operating the machine, remove tie, rings, watches,
other jewellery, and roll up sleeves above the elbows.
Remove all loose clothing and confine long hair.
Wear safety shoes; never wear leisure shoes or sandals.

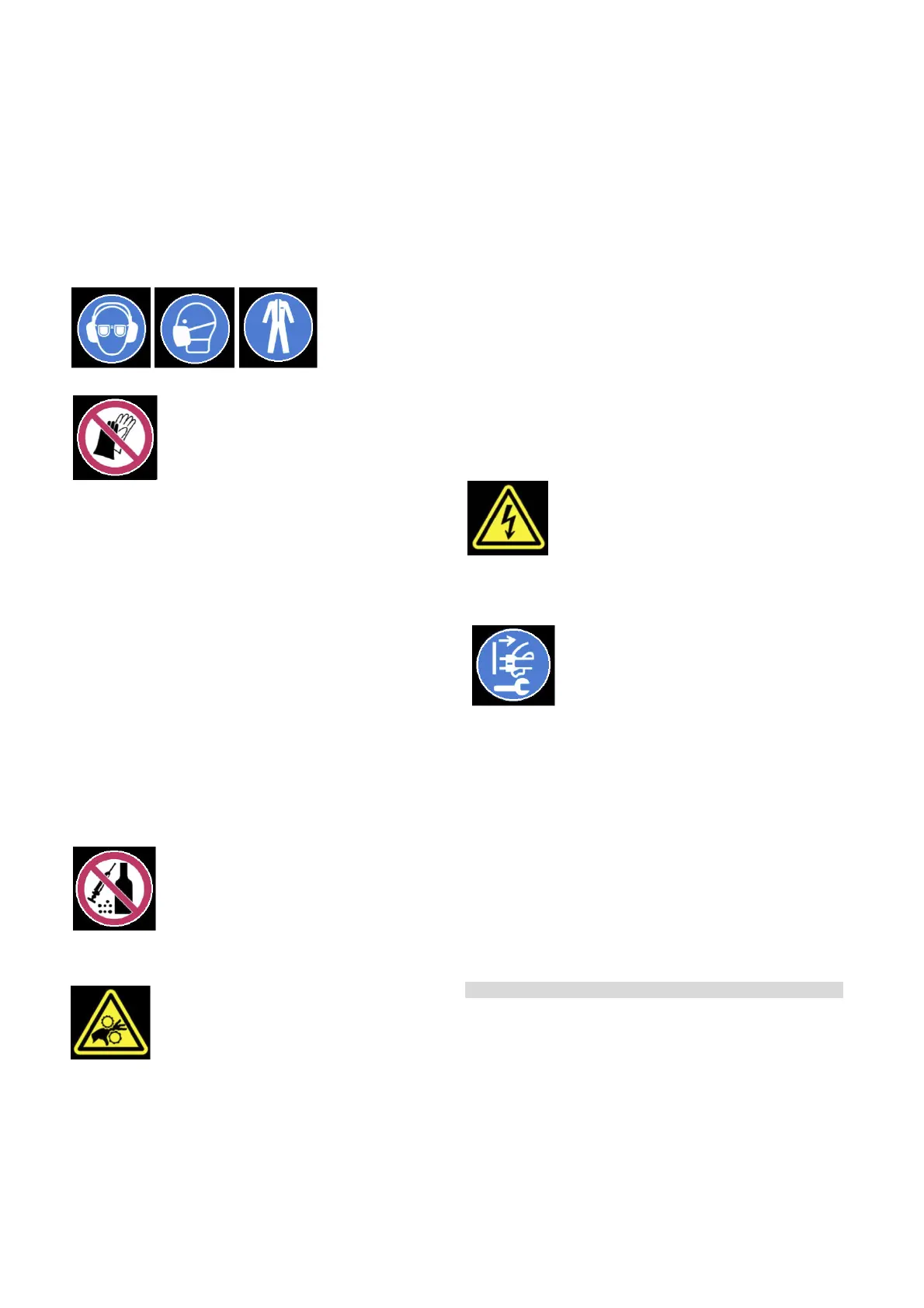

Always wear the approved working outfit:
- safety goggles
- ear protection
- dust protection
Do not wear gloves while operating this machine.
Install the machine so that there is sufficient space for safe
operation and workpiece handling.
Keep work area well lighted.
The machine is designed to operate in closed rooms and
must be bolted stable on firm and levelled table surface
Make sure that the power cord does not impede work and
cause people to trip.
Keep the floor around the machine clean and free of scrap
material, oil and grease.
Stay alert!
Give your work undivided attention.
Use common sense. Do not operate the machine when you
are tired.
Keep an ergonomic body position.
Maintain a balanced stance at all times.
Do not operate the machine under the influence of drugs,
alcohol or any medication. Be aware that medication can
change your behaviour.
Never reach into the machine while it is operating or running
down.
Keep children and visitors a safe distance from the work
area.
Never leave a running machine unattended. Before you
leave the workplace switch off the machine.
Do not operate the electric tool near inflammable liquids or
gases.
Observe the fire fighting and fire alert options, for example
the fire extinguisher operation and place.
Do not use the machine in a dump environment and do not
expose it to rain.
Wood dust is explosive and can also represent a risk to
health.
Dust form some tropical woods in particular, and from
hardwoods like beach and oak, is classified as a
carcinogenic substance.
Always use a suitable dust collection device
Before machining, remove any nails and other foreign
bodies from the workpiece.
Work only with well sharpened tools.
Machine only stock which rests securely on the table.
Always close the chuck cover before you start the machine.
Specifications regarding the maximum or minimum size of
the workpiece must be observed.
Do not remove chips and workpiece parts until the machine
is at a standstill.
Do not stand on the machine.
Connection and repair work on the electrical installation
may be carried out by a qualified electrician only.
Have a damaged or worn power cord replaced immediately.
Make all machine adjustments or maintenance with the
machine unplugged from the power source.
3.3 Remaining hazards
When using the machine according to regulations some
remaining hazards may still exist.
The rotating drill bit can cause injury.
Thrown workpieces and workpiece parts can lead to injury.
Dust and noise can be health hazards. Be sure to wear
personal protection gear such as safety goggles and dust
mask. Use a suitable dust collection system.
The use of incorrect mains supply or a damaged power cord
can lead to injuries caused by electricity.
4. Machine specifications
4.1 Technical data
Motor speed ......................................................... 1450 rpm
Drill chuck capacity ................................................... 10mm
Chisel capacity ............................................ 12,7 x 12,7mm
Chisel bushings ........................................ 5/8”, 3/4”, 13/16”
Head stroke ............................................................. 120mm
Vertical distance table to chisel bushing max .......... 208mm
Distance chisel centre to fence max. ......................... 90mm
Fence size ....................................................... 40 x 320mm
Under hold down capacity ....................................... 100mm
Net weight .................................................................. 20kg
