10
Installing Fence to Bed

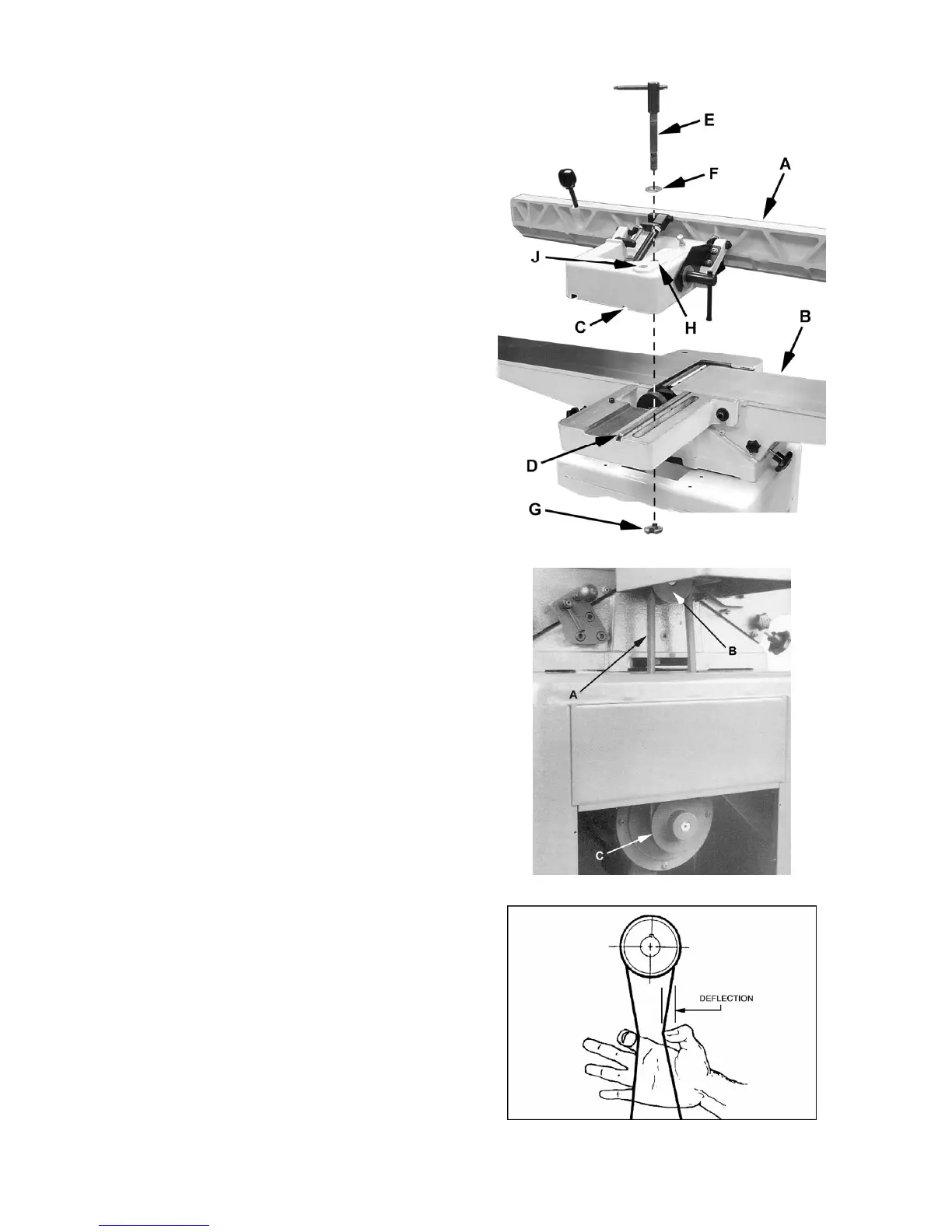

Referring to Figure 3a:
1. Take the lock handle (E), flat washer (F), and
lock nut (G) from the carton.
2. Place the fence assembly (A) onto the table
(B). Be sure the key stock (D) on the bed lines
up with the channel (C) in the fence casting.
3. Place the flat washer (F) on hole (H)*; insert
the lock handle (E) through the fence casting
and the table casting.
4. Thread the lock nut (G) onto the lock handle
(E). Make sure the tab on the nut faces up and
engages the slot in the table casting.
*Note: For rabbeting operations use hole (J).
Installing the Drive Belt
Referring to Figure 4:
1. Place V-belt (A) onto cutterhead pulley (B) and
through opening in stand.
2. Pull V-belt down and place onto motor
pulley (C).
Note: If the belt is difficult to roll on the pulley,
loosen the motor mounting screws.
3. Check to make sure that motor pulley and
cutterhead pulley are vertically aligned and the
V-belt does not contact the sides of the
opening in the base. If the pulleys are not
aligned, remove belt and adjust the motor
pulley in or out on the motor shaft and then re-
attach the belt.
4. The V-belt is properly tensioned when finger
pressure on the belt half way between the two
pulleys causes 1/2" deflection (Figure 5). If the
belt is too loose, loosen the four motor mount
bolts, push down on the motor to tension the V-
belt, and tighten the mounting bolts.
5. A new belt may have a tendency to stretch
slightly until broken in. After two hours of
operation, check belt tension again. Readjust
the tension if necessary.
Figure 3a
Figure 4
Figure 5
