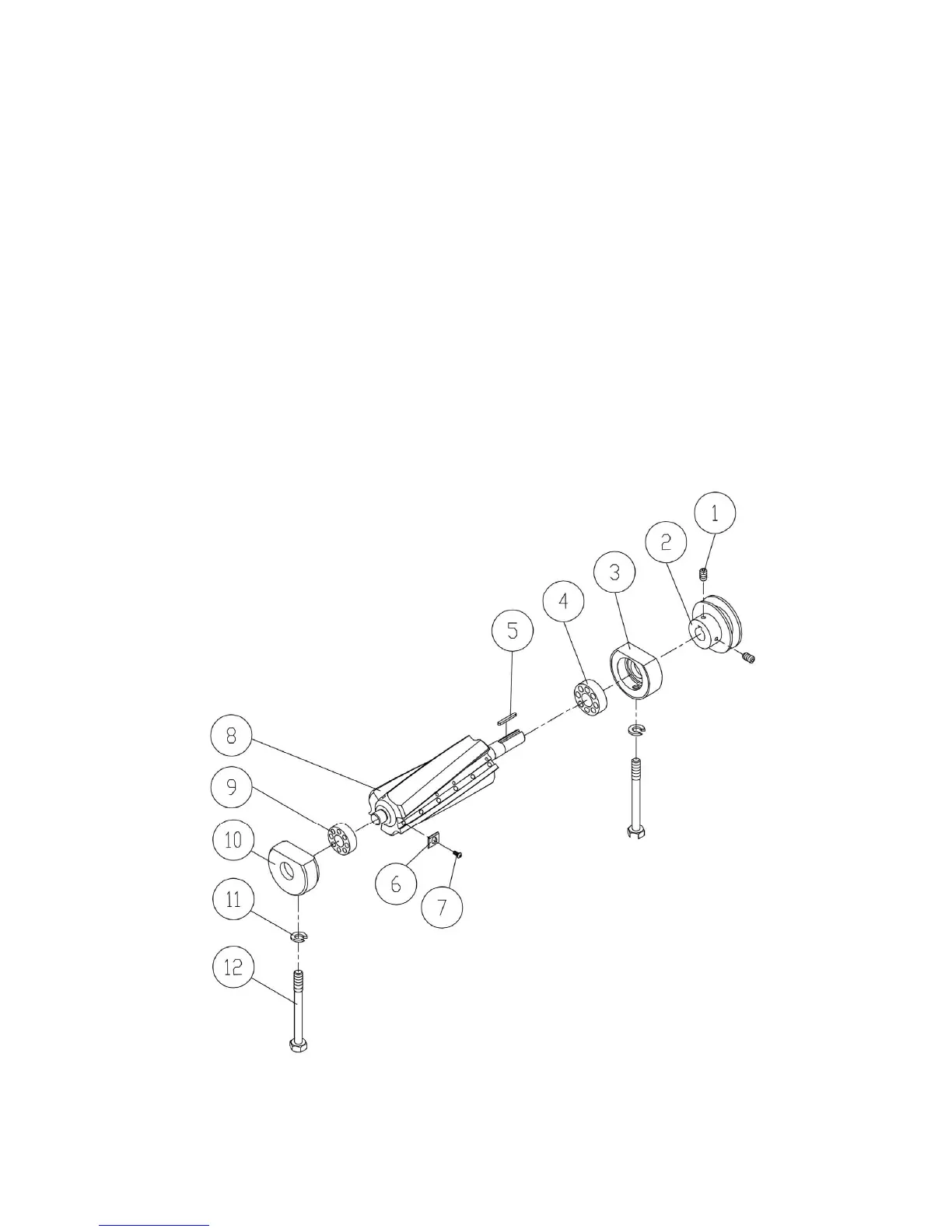

Cutterhead – Parts and Assembly JJ-6HHDX
Index No. Part No. Description Size Qty.
................. JJ6HH-CA................Cutterhead Assembly (Index # 1 thru 12) ............................................... 1
1............... TS-0267041.............Socket Set Screw ...............................................1/4”-20x3/8................. 2
2............... JH-C07 ....................Cutterhead Pulley.................................................................................. 1
3............... JH-C04 ....................Bearing Housing.................................................................................... 1
4............... BB-6203VV..............Ball Bearing........................................................6203VV ...................... 1
5............... 5F-G108 ..................Key.....................................................................5x5x25 ....................... 1
................. 1791221-4 ...............Helical Cutterhead Unit (Index # 6 thru 8) .............................................. 1
6............... 1791212...................Knife Insert (set of 10) ..................................................................total 27
7............... JWP208HH-111 .......Knife Insert Screw ..............................................#10-32x1/2 ............... 27
8............... JJ6HH-108...............Helical Cutterhead................................................................................. 1
9............... BB-6202VV..............Ball Bearing........................................................6202VV ...................... 1
10............. 3H-C02 ....................Bearing Housing.................................................................................... 1
11............. TS-0720091.............Lock Washer ......................................................3/8”............................. 2
12............. JEA-B01 ..................Bolt.....................................................................3/8”-24x3-1/2”............. 2
