9
Assembl
Unpacking and Cleanup
1. Carefully finish removing all contents from both
shipping cartons. Compare contents of the
shipping cartons with the list of contents above.
Place parts on a protected surface.
2. Set packing material and shipping cartons to
the side. Do not discard until machine has
been set up and is running properly.
3. Clean all rust protected surfaces (bed, fence,
etc.) with kerosene or diesel oil. Do not use
gasoline, paint thinner, mineral spirits, etc.
These may damage painted surfaces.
Cutterhead knives are
dangerously sharp! Use
extreme caution when cleaning.
4. Apply a thin layer of paste wax to the bright
surfaces of the fence and tables to prevent
rust.
Installing Bed to Stand

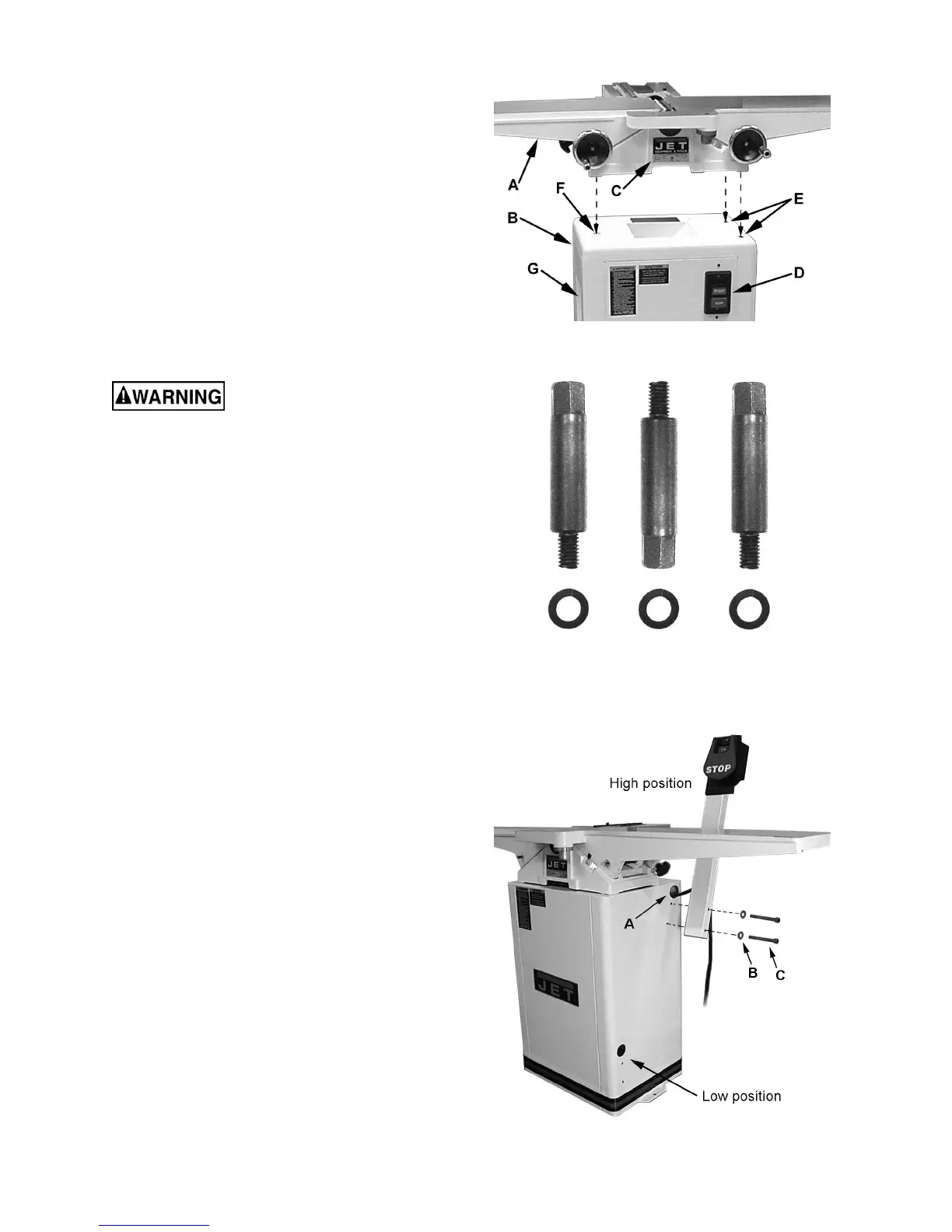

Referring to Figure 1:
1. Place bed assembly (A) on top of stand (B). Be
sure the identification label (C) on the bed
faces the same direction as the switch (D) on
the stand.
2. Line up two holes in the stand top (E) with
holes in the bed assembly by viewing through
the access door in rear side of the stand.
3. Attach stand to bed assembly by using two 3/8"
lock bolts and lock washers (Figure 2). Hand
tighten only at this time.
4. Line up the third hole in the stand (F) with the
hole in the bed assembly by viewing through
the dust chute (G).
5. Install the third 3/8" lock bolt and lock washer
through the dust chute (G) to secure the bed to
the stand.
6. Tighten all three lock bolts with a 14mm
wrench.
Installing Pedestal Switch (JJ-6HHDX)
Referring to Figure 3:
1. The switch may be installed in either high
position or low position to suit the operator.
Slide the connection plug through the opening
(A) and secure the pedestal switch using two
5/16”x3” screws (C) and 5/16” flat washers (B).
2. Connect the plug of the pedestal switch to the
motor plug inside the cabinet.
Figure 1
Figure 2
Figure 3
