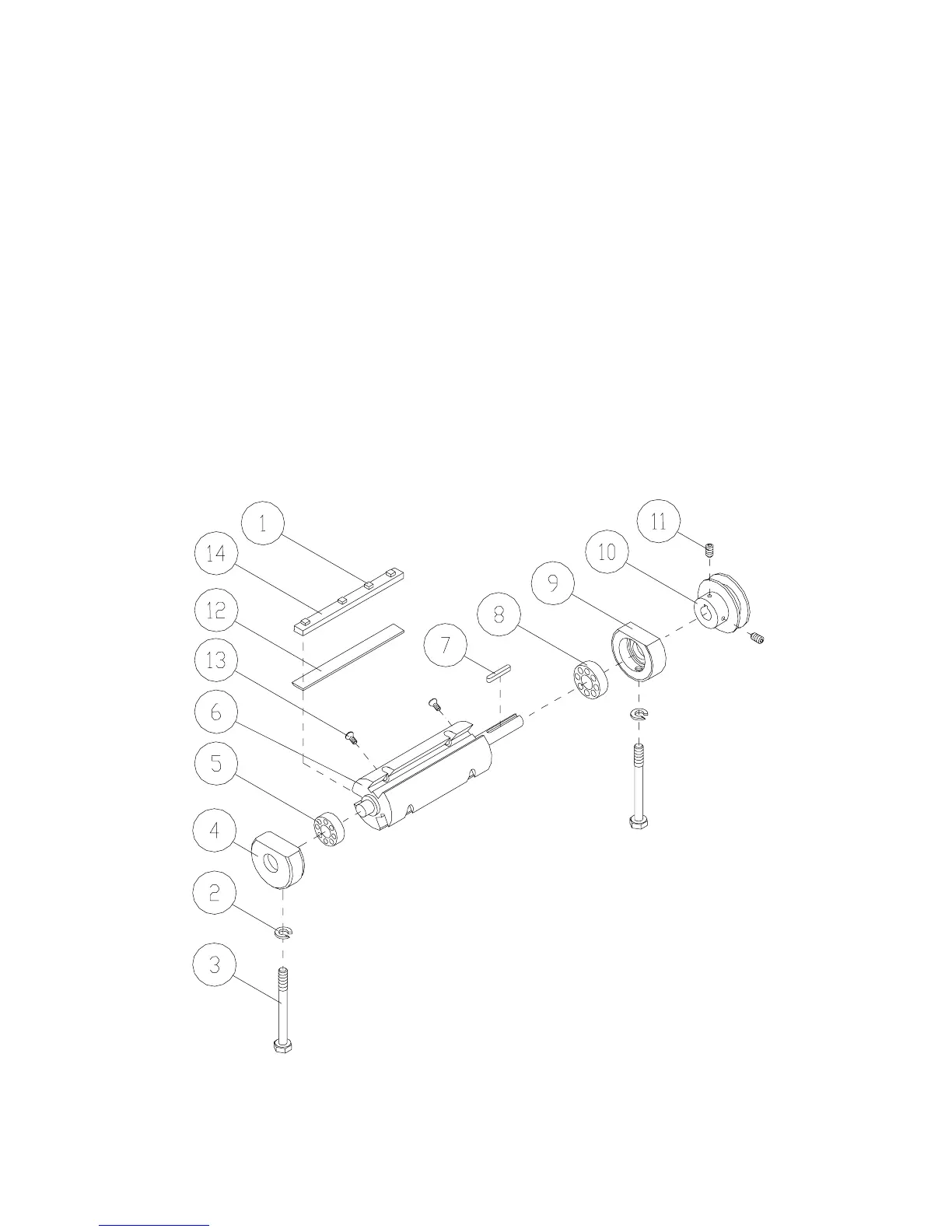

Cutterhead – Parts and Assembly JJ-6CSX
Index No. Part No. Description Size Qty.
................. JEE-C01A................Cutterhead Assembly (Index #s 1-14) .................................................... 1
1............... JC-C06 ....................Hex Screw........................................................................................... 12
2............... TS-0720091.............Lock Washer ......................................................3/8”............................. 2
3............... JEA-B01 ..................Bolt........................................................................................................ 2
4............... 3H-C02 ....................Bearing Housing.................................................................................... 1
5............... BB-6202ZZ ..............Ball Bearing........................................................6202ZZ....................... 1
6............... JEE-C01 ..................Cutterhead ............................................................................................ 1
7............... 5F-G108 ..................Key.....................................................................5x5x25 ....................... 1
8............... BB-6203ZZ ..............Ball Bearing........................................................6203ZZ....................... 1
9............... JH-C04 ....................Bearing Housing.................................................................................... 1
10............. JH-C07 ....................Cutterhead Pulley.................................................................................. 1
11............. TS-0267041.............Set Screw...........................................................1/4”-20x3/8”................ 2
12............. 708801 ....................Knife for JJ-6CSX (set of 3) ................................................................... 1
13............. 5AH-D06A ...............Flat Head Socket Screw ........................................................................ 6
14............. JI-C02......................Knife Lock Bar....................................................................................... 3
To Next Page
