8
9.0 Operating controls
Disconnect machine from
power source before making any
adjustments. Failure to comply may cause
serious injury.
Cutterhead knives are
dangerously sharp. Use extreme caution
when working around them. Failure to
comply may cause serious injury.

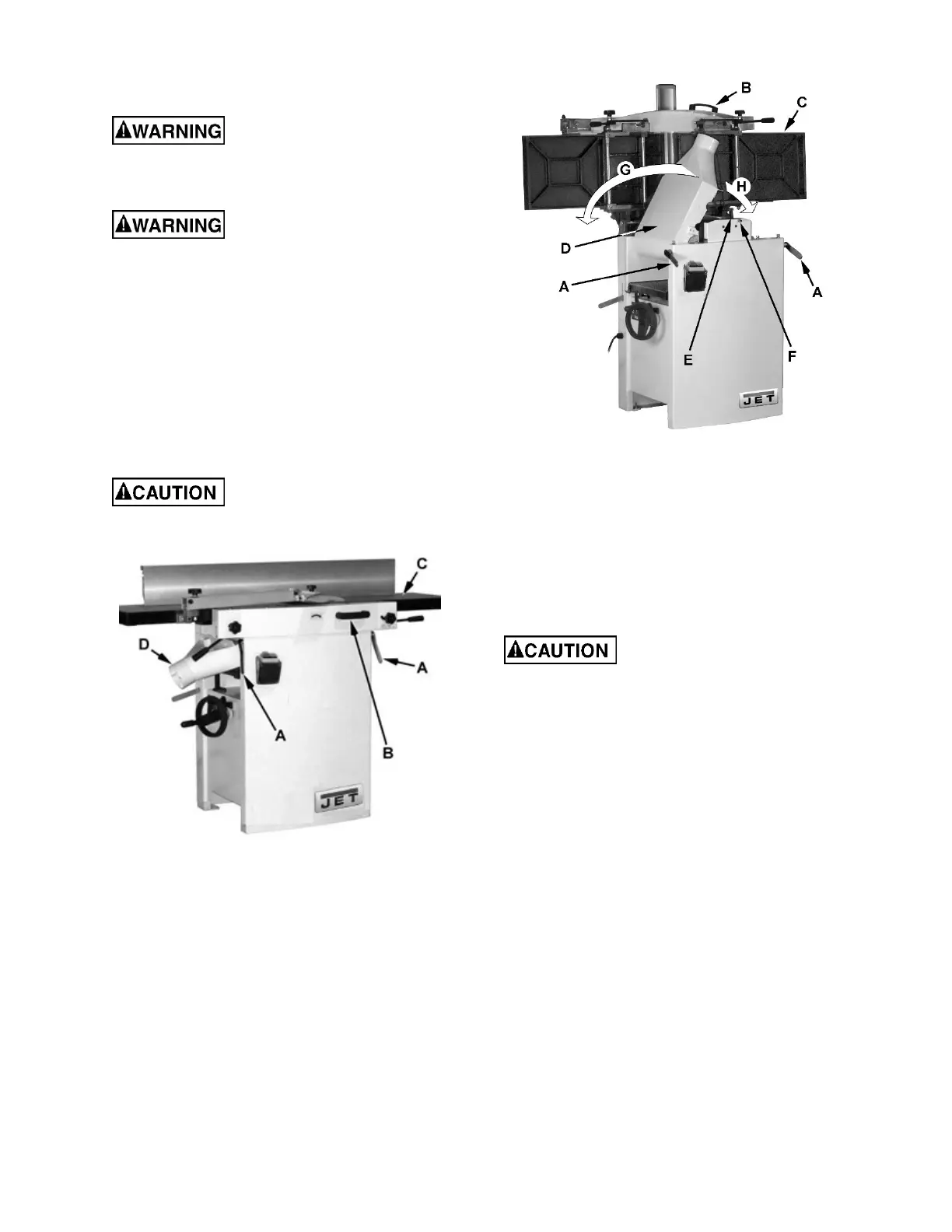

9.1 Jointer to Planer setup
To change the machine configuration from
jointer to planer (refer to Figure 2):
1. Release both cabinet table locks (A) by
rotating the handles toward the operator,
then pulling away from the machine.
2. Raise the table (C) using the handle (B).
Table is heavy. Use care
when raising. Failure to comply may cause
serious injury.
Figure 2
When raised, the table should be in the
vertical position as shown in C, Fig. 3. The
latch (E, Fig. 3) should be engaged,
preventing the table from an accidental
forward fall.
3. Position the dust chute (D,H Fig. 3) to the
right. Use extreme care to avoid contact with
cutterhead knives.
Note: The planer table may need to be
lowered to allow clearance needed to
position the dust chute.
Figure 3
9.2 Planer to Jointer setup
Refer to Figure 3:
To change the machine configuration from
planer to jointer:
1. Pull the release knob (F) and reposition the
dust chute (D, G) to the left. It should be
positioned as shown in D, Fig. 2.
Table is heavy. Use care
when lowering. Failure to comply may cause
serious injury.
2. Release the latch (E) and bring the table
forward using the tilt handle (B). It should be
positioned as shown in C, Fig. 2.
3. Lock the table (C) by pushing the lock
handles (A) in toward the machine and
rotating down (away from the operator).
9.3 Control switch
Once a properly rated plug is connected, plug
power cord into outlet. Press the green on
button (A, Fig. 4) to start. Press the red off
button (B, Fig. 4) to stop.
