7
5.0 Features and terminology

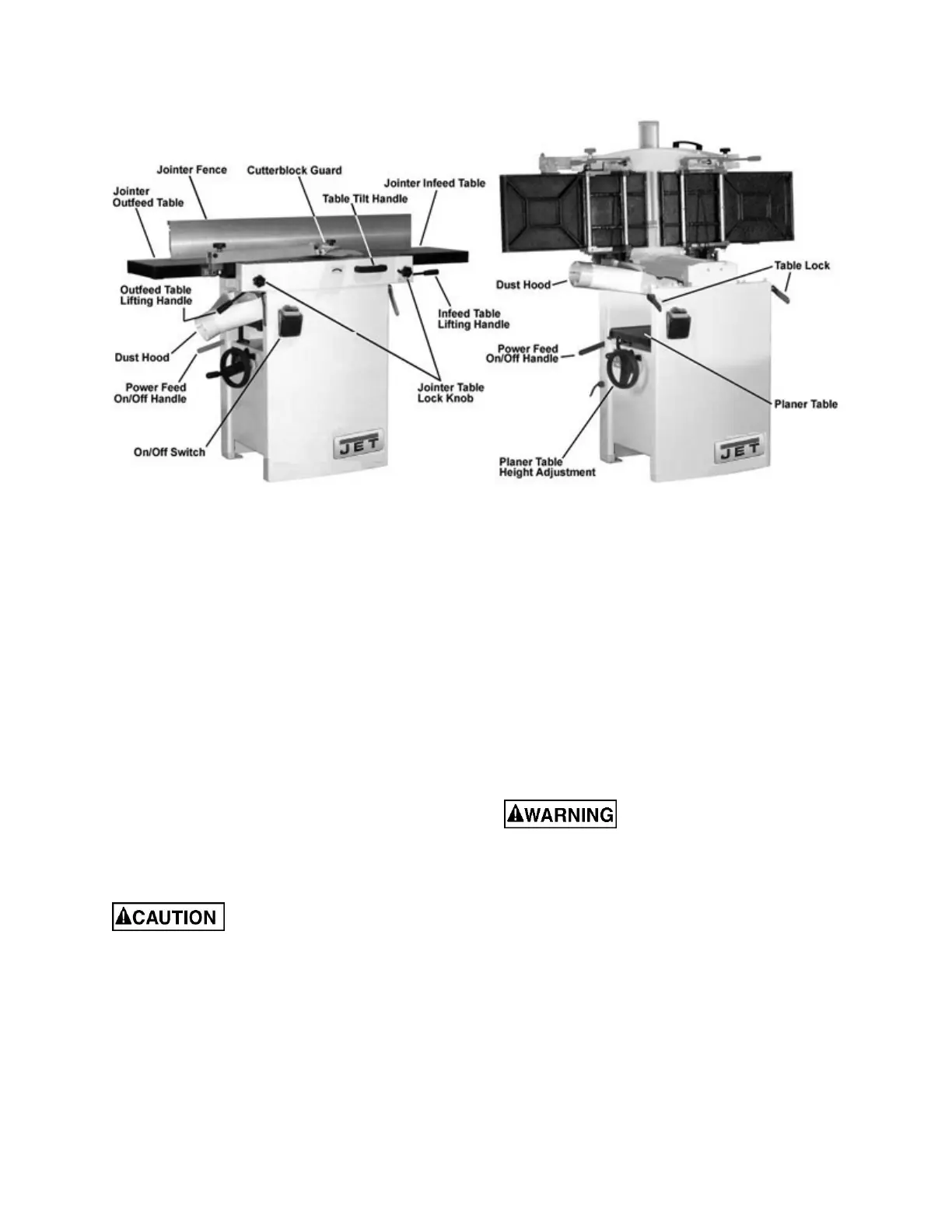

Figure 1 – Features and Terminology
6.0 Receiving
Carefully unpack the machine and any loose
items from the wood crate and inspect for
damage. Any damage should be reported
immediately to your distributor and shipping
agent. Before proceeding further, read your
manual thoroughly to familiarize yourself with
proper assembly, maintenance and safety
procedures.
Remove the screws that hold the machine to the
shipping skid. Remove the protective coating
from the table, bed rolls, feed rolls, cutterhead
and loose items packed with the machine. This
coating may be removed with a soft cloth
moistened with kerosene. Do not use acetone,
gasoline or lacquer thinner for this purpose. Do
not use solvents on plastic parts.
Use care when cleaning the
cutterhead; the knives are very sharp.
7.0 Unpacking
1. Remove all contents from the shipping
carton. Do not discard the carton or packing
material until the machine is set up and
running satisfactorily.
2. Inspect the contents for shipping damage.
Report damage, if any, to your distributor.
Tools Required for Assembly
1 Accurate Straight Edge (approximately 2 ft)
1 Cross-point Screwdriver
1 4mm Hex Wrench (included)
1 5mm Hex Wrench
1 6mm Hex Wrench (included)
1 10mm Box Wrench
1 13mm Box Wrench
Note: Use of sockets and ratchets will speed
assembly time but are not required.
8.0 Electrical connection
All electrical connections
must be done by a qualified electrician. All
adjustments or repairs must be done with
the machine disconnected from the power
source, unplugged. Failure to comply may
result in serious injury!
The Model JJP-12 and JJP-12HH Jointer-Planer
is rated at 230V. This machine is not supplied
with a plug. Use a plug and outlet rated at least
30 amps. The circuit for the machine should also
be protected by at least a 30 amp circuit breaker
or fuse.
Make sure the cutterhead rotates in the
proper direction. If it does not, disconnect
machine from power supply and reverse two of
the phase wires on the supply input.
