7.3 Tilting angle adjustment
Disconnect the machine from the power source.
Pull handle (A, Fig. 12) forward to release tension.
Move sanding platen to the vertical position.
Use a combination square between the table and sanding
platen to inspect the 90° angle.
Readjust the two 90° positive stops on the back of the
machine if necessary.

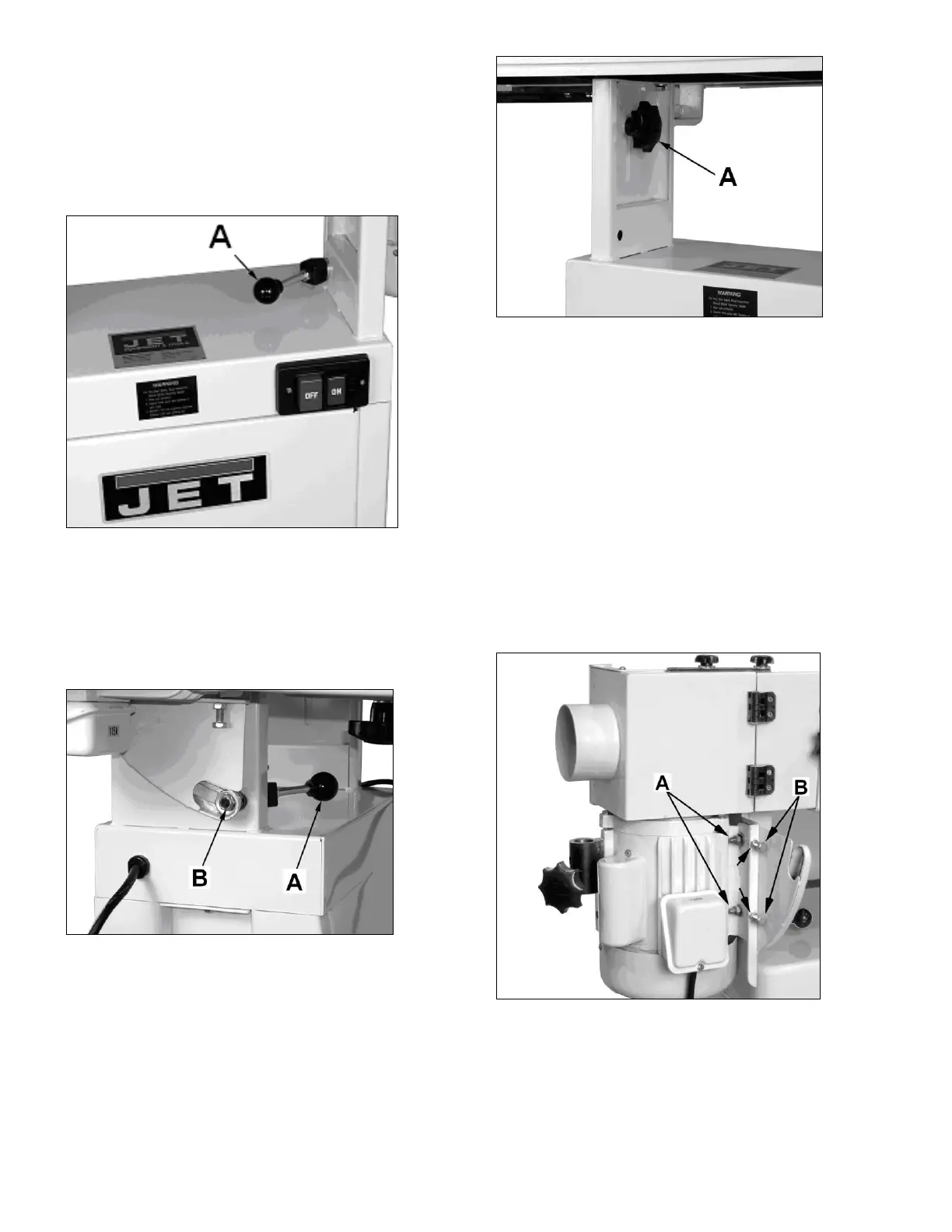

Fig 12
7.4 Tilting lock adjustment
Disconnect the machine from the power source.
The clamping function of the tilting lock (A, Fig 13) is
adjustable.
Tension eccentric block by tightening the nylon stop nut (B)
Fig 13
The platen and motor assembly must stay in a locked position
without sliding once the handle has been moved to the locked
position.
7.5 Table adjustment
The machine table can be adjusted to various heights for a
better use of the sanding belt.
Disconnect the machine from the power source.
Fig 14
Loosen two lock knobs (A, Fig 14).
Raise or lower work table to desired level.
Tighten lock knobs.
WARNING:
Do not position table below sanding belt! Keep an overlap of
at least 2mm between table and sanding belt to avoid
material and/or fingers getting caught! Failure to comply may
cause serious injury!
7.6 Motor mount adjustment
The motor mounting is set at the factory and should not
require any further adjustment. If, however, you are not able
to track the belt using the belt tracking adjustment assembly
on the sanding platen, the motor mount bolts will have to be
adjusted:
Disconnect the machine from the power source.
Fig 15
Slightly loosen the four motor mount nuts (A, Fig. 15) just
enough so the tracking bolts (B) can make an adjustment.
