EN
Central Box does not contain circuitry to stabilize or regulate
voltage to the servos.
The level of the input voltage is equal to the level of (output) supply
voltage level to the servos. Be sure to match the proper type of servos
with your selected power supply. Eg. when using 2 Li-xx cells without a
regulator, it is necessary to use servos labeled “High Voltage”.

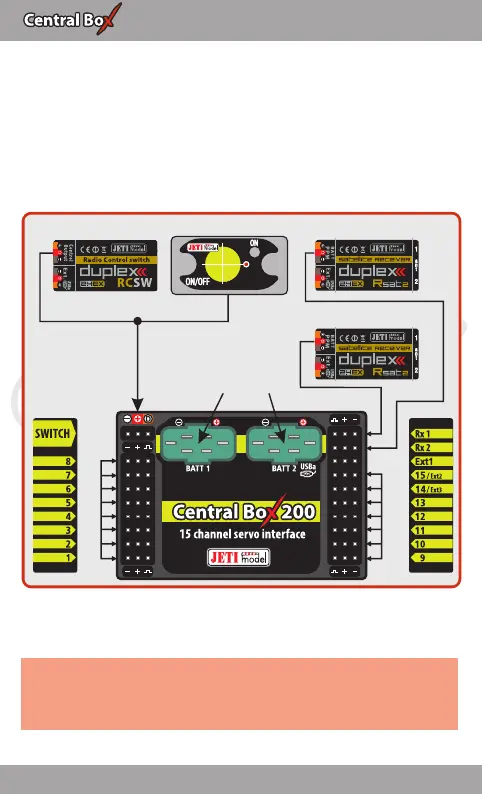

Fig. 6: Example of the Central Box 200 powered for use with HIGH Voltage
servos
RC Switch Magnetic Switch
Input
voltage
8.4V
SERVO High Voltage
Rsat2 (Rx2)
Rsat2 (Rx1)
SERVO High Voltage
input voltage
4-14V
It is not recommended to supply power to the
Central Box through the outputs for servos, sensors
or receivers.
Caution:
9 EN
PPM
PPM
