Jetmaster 18f - Internal Board Removal (Bottom, Rear and Sides); Ash Pan Removal

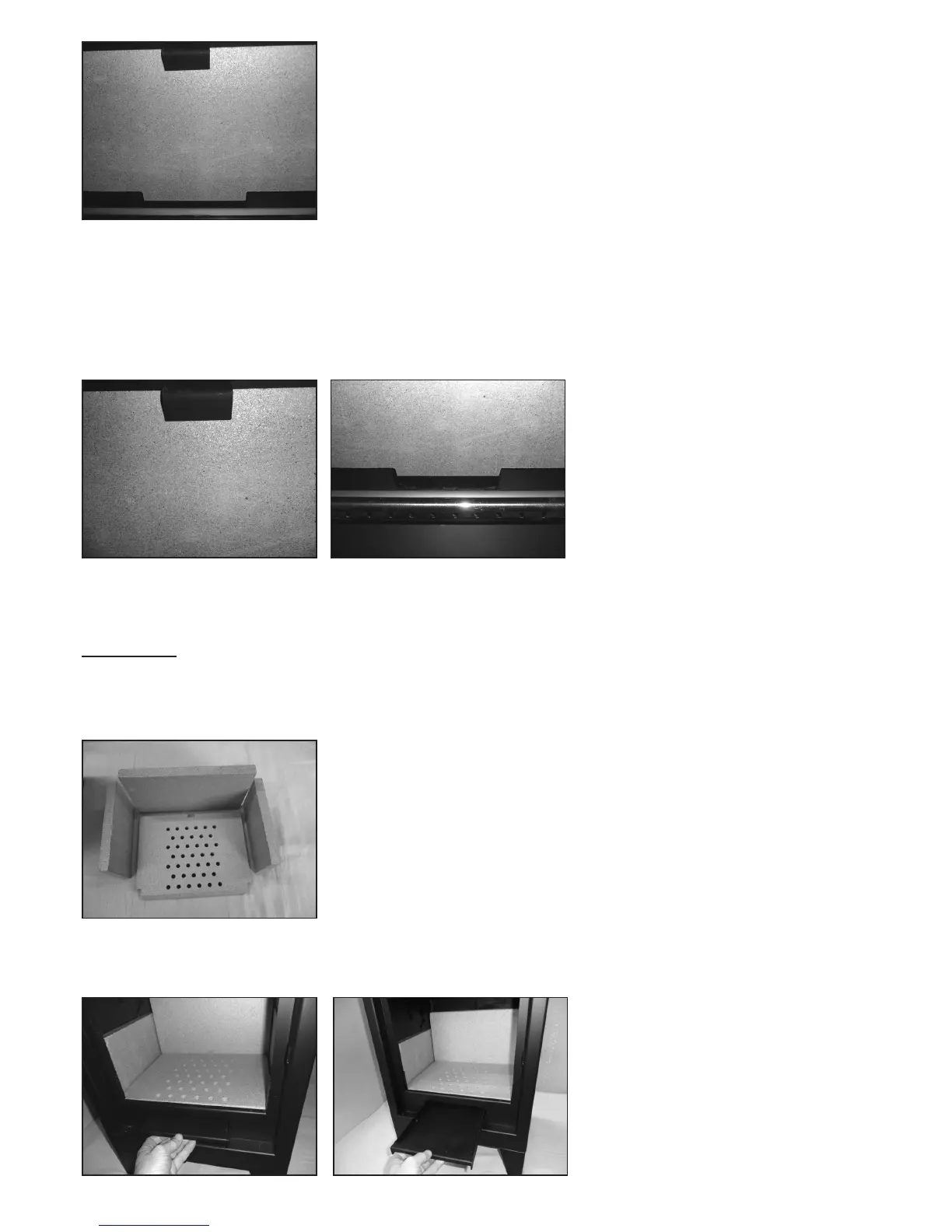

Upperbafeboardandlocationbrackets
Toremovetheupperbafepulltheboardforwardoutoftherearrecessandlowertheboarddown.
This is achieved by lifting the front of the board up and at the same time pulling forward so that the rear of the
board “tongue” disengages from the recess bracket in the back panel. Then drop the rear of the board down,
lowering the front to clear the fornt bracket.
Note:Notoolsarenecessarytoremovetheupperbafe.
Internal Board Removal (Bottom, Rear and Sides)
The internal boards need to be taken out in the following sequence:-
IMPORTANT First remove the ashpan, then the base board, rear board and side boards.
Although the boards are durable care should be taken not to break them during handling.
The position of the boards must be noted so that they can be replaced back in the same positions and order.
Notealsothatsomeoftheboardscanonlybettedonewayaroundorarehanded.
Board set - bottom, rear & sides
Ash Pan Removal
Remove the ashpan as shown.
15
