Jetson Volt X - Assembling & Attaching the Spoiler and Battery Compartment Cover

46
YOU WILL NEED THE PHILLIPS-HEAD SCREWDRIVER AND 2 SMALL SCREWS (S1).

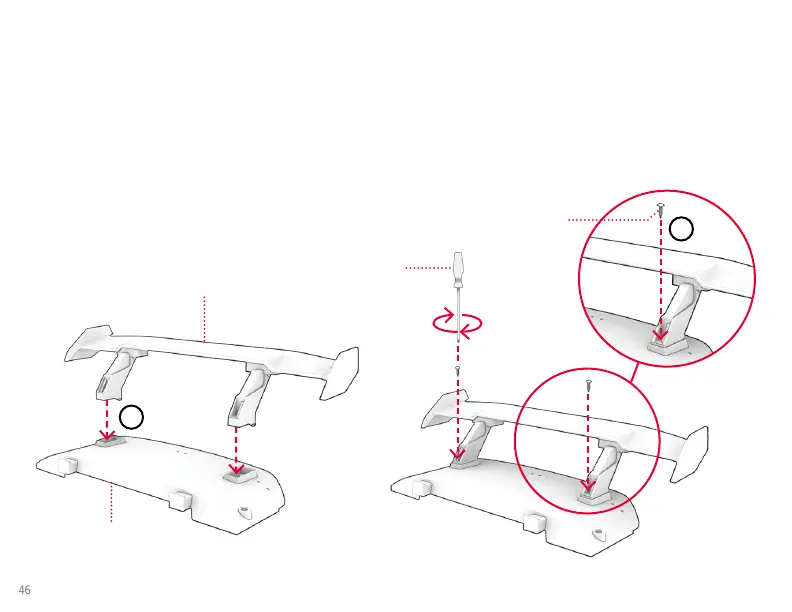

1. PLACE THE BATTERY COMPARTMENT COVER (M) UPRIGHT ON A LEVEL SURFACE.
2. INSERT THE LEGS OF THE SPOILER (N) INTO THE GROOVES ON THE BATTERY COMPARTMENT COVER SO THAT THE SCREW
HOLE AT THE BASE OF EACH LEG IS ALIGNED WITH THE SCREW HOLE IN EACH GROOVE.
3. INSERT 1 SMALL SCREW (S1) INTO EACH SET OF ALIGNED HOLES BY TWISTING IT IN CLOCKWISE. (2 TOTAL)
4. FULLY TIGHTEN EACH SCREW BY TURNING IT CLOCKWISE WITH THE PHILLIPS-HEAD SCREWDRIVER.
5. CHECK THAT THE SPOILER IS SECURE ON THE BATTERY COMPARTMENT COVER.
2.11 Assembling & Attaching the Spolier and Battery Compartment Cover
BATTERY
COMPARTMENT
COVER (M)
SPOILER (N)
PHILLIPS-HEAD
SCREWDRIVER
SMALL
SCREW (S1)
2
3
