Jetson Volt X - Attaching the Front Wheels

39
YOU WILL NEED 1 SOCKET WRENCH.

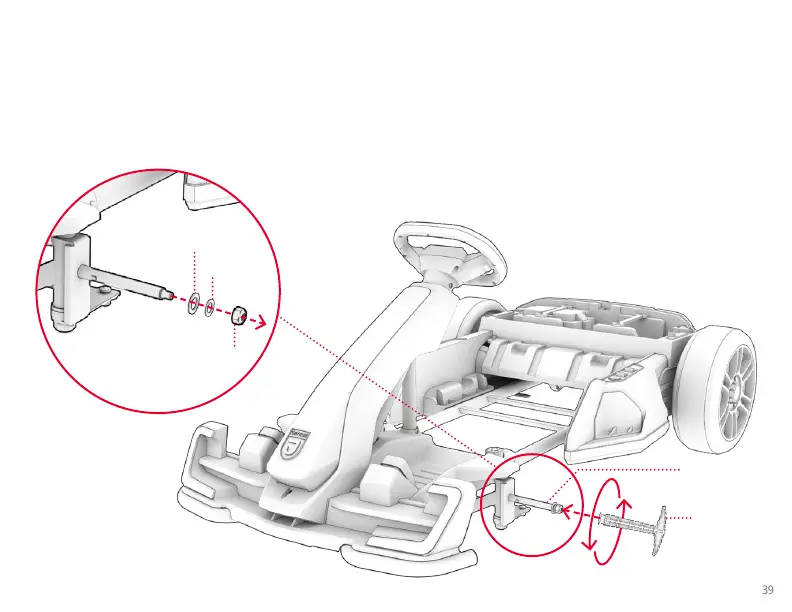

1. LOOSEN AND REMOVE THE PRE-INSTALLED AXLE NUT(SIZE M8) FROM ONE SIDE OF THE FRONT AXLE BY TWISTING IT OFF
COUNTERCLOCKWISE WITH A SOCKET WRENCH. SLIDE THE PRE-INSTALLED MEDIUM (M8 X22 MM X 1.3 MM) AND
LARGE (M8 X 24 MM X 1.3 MM) WASHERS OFF OF THE FRONT AXLE. SET THE HARDWARE ASIDE.
2.8 Attaching the Front Wheels
LARGE
WASHER
MEDIUM
WASHER
AXLE NUT
FRONT AXLE
SOCKET
WRENCH
