Bareshaft Pump
27
10. Once all of the bolts are removed, lift the
manifold off the pump (Figure 26).
Note: The weight of the manifold is approxi-
mately:
• 3000 Series: 90 lb. (41 kg)
• 3600/4200 Series: 165 lb. (75 kg)
11. Remove the water lubrication tting (Figure
27) from each stufng box.
12. Remove the two bolts that secure each plung-
er coupling (Figure 28) to the plungers and
remove the three couplings.
Note: The coupling halves are matched and
must be kept together.
!
CAUTION
Use two people to lift the manifold. The mani-
fold is heavy and failure to use two people may
cause serious injury.

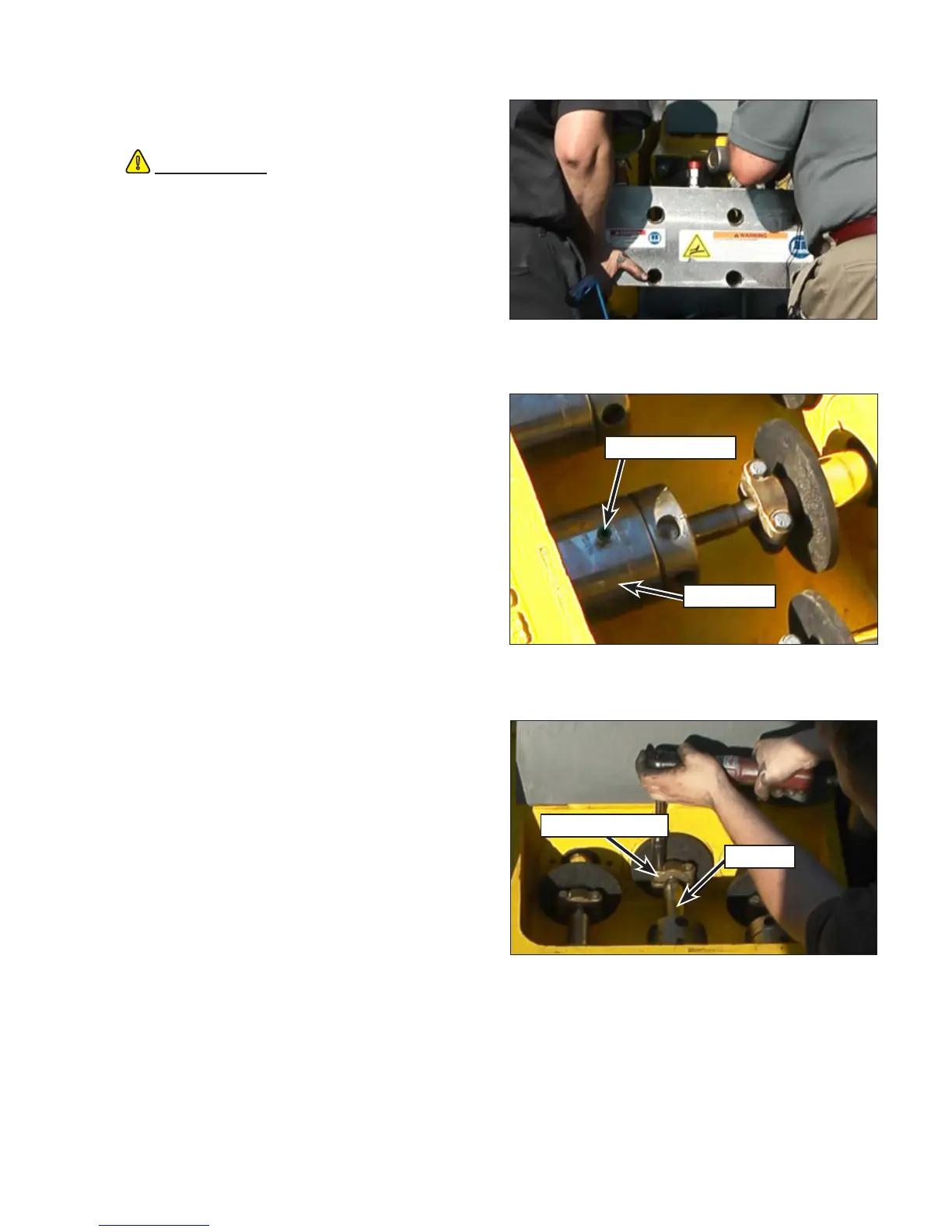

Figure 26: Manifold Removal.
Figure 27: Lubrication Fittings.
Lubrication Fitting
Stuffing Box
Figure 28: Plunger Coupling Removal.
Plunger
Plunger Coupling
