Operation Manual
30
d. To install the hinge rod (Figure 35), it will be
necessary to either lift the manifold or use a
screwdriver to ex the rod while simultane-
ously tapping the end with a hammer to get
the rod through the second set of trunnions.
Check for correct alignment and free rotation
of the manifold bolts.
e. Repeat as necessary making half turn adjust-
ments to both trunnions up or down until the
manifold bolts thread in and out easily.
22. Install the manifold bolts (Figure 36) in the
open holes and hand-tighten.
23. Remove the manifold mounting studs (Figure
36).
24. Install the remaining two bolts. Tighten all of
the bolts in a crisscross sequence (Figure 37).
Proper torque is 350 ft.-lb. (470 N·m).
!
CAUTION
Use two people to lift the manifold. The mani-
fold is heavy and failure to use two people may
cause serious injury.

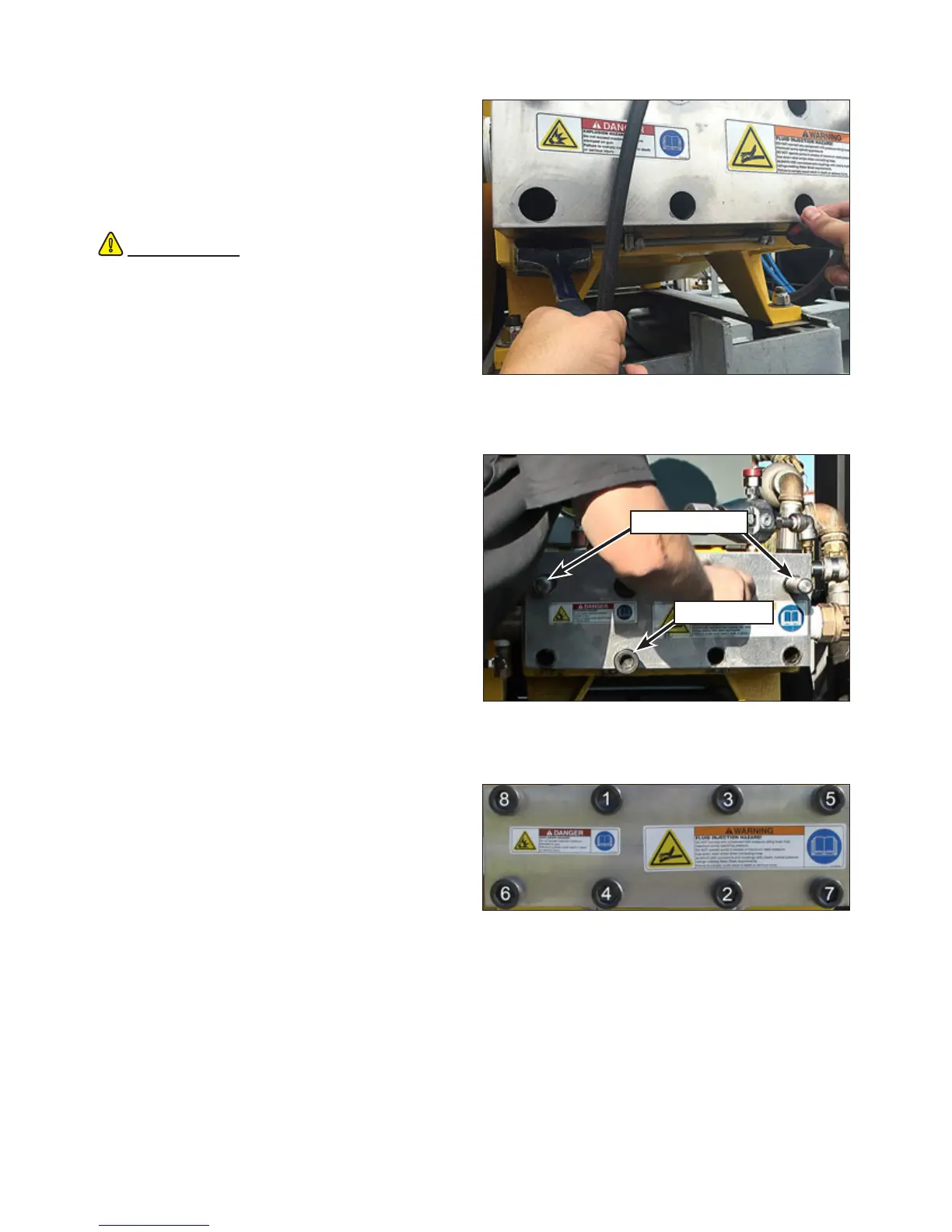

Figure 35: Hinge Rod Installation.
Figure 36: New Manifold Installation.
Mounting Studs
Manifold Bolt
Figure 37: Tightening Sequence.
