JETSURF RACE TITANIUM - SPARK PLUG REPLACEMENT AND FREEWHEEL LUBRICATION

74 75
Required tools: Allen key 2.5, 3, 4; LOCTITE 243 (blue); LOCTITE 638 (green); mounting spanner
MSR-X000038A (supplied by the manufacturer); Klueber Isoex LD18 Special A grease.
1) Remove the two screws holding the carbon engine cover – FIGURE 1. Remove the cover.
2) Unscrew the ground cable to the starter and the other screw holding the plastic clip with cables
going to the starter – FIGURE 2.
3) Arrest the large gear and unscrew the plastic cover on the main (large) gear, use the mounting
spanner MSR-X000038A – FIGURE 3.
4) Apply grease (Klueber Isoex LD18 Special A) in the unscrewed cover so that it lls the empty
volume of the cover - FIGURE 4.
5) Continue with the steps 3 to 1.
TABLE OF REGULAR MAINTENANCE
Item Operation Before every ride After every ride Every 10 MTH Every 25 MTH Every 3 months Every 6 months (before storage) Page
Spark plug check / cleaning x 70
replacing x 71
Spark plug boot check x 71
Connections, tubes,
connecting material
and cables, connectors
check x
Board washing with fresh
water, drying
x
All the engine parts washing with fresh
water, drying
x
lubrication with MOTO-
REX INTACT MX 50 spray
x x x 57
Throttle control and
fuel system
check x 37
32
Freewheel/engine
bearings
lubrication with grease
Klueber Isoex LD18
grease Special A
x 73
57
Check/tighten the en-
gine fastening screws
check/tightening x
jet pump impeller check x
ICU battery charging x x x 46
Cooling system/tubes check x
Bilge pumps check x
Every 12 months a complete service inspection is highly recommended.
MAINTENANCEMAINTENANCE

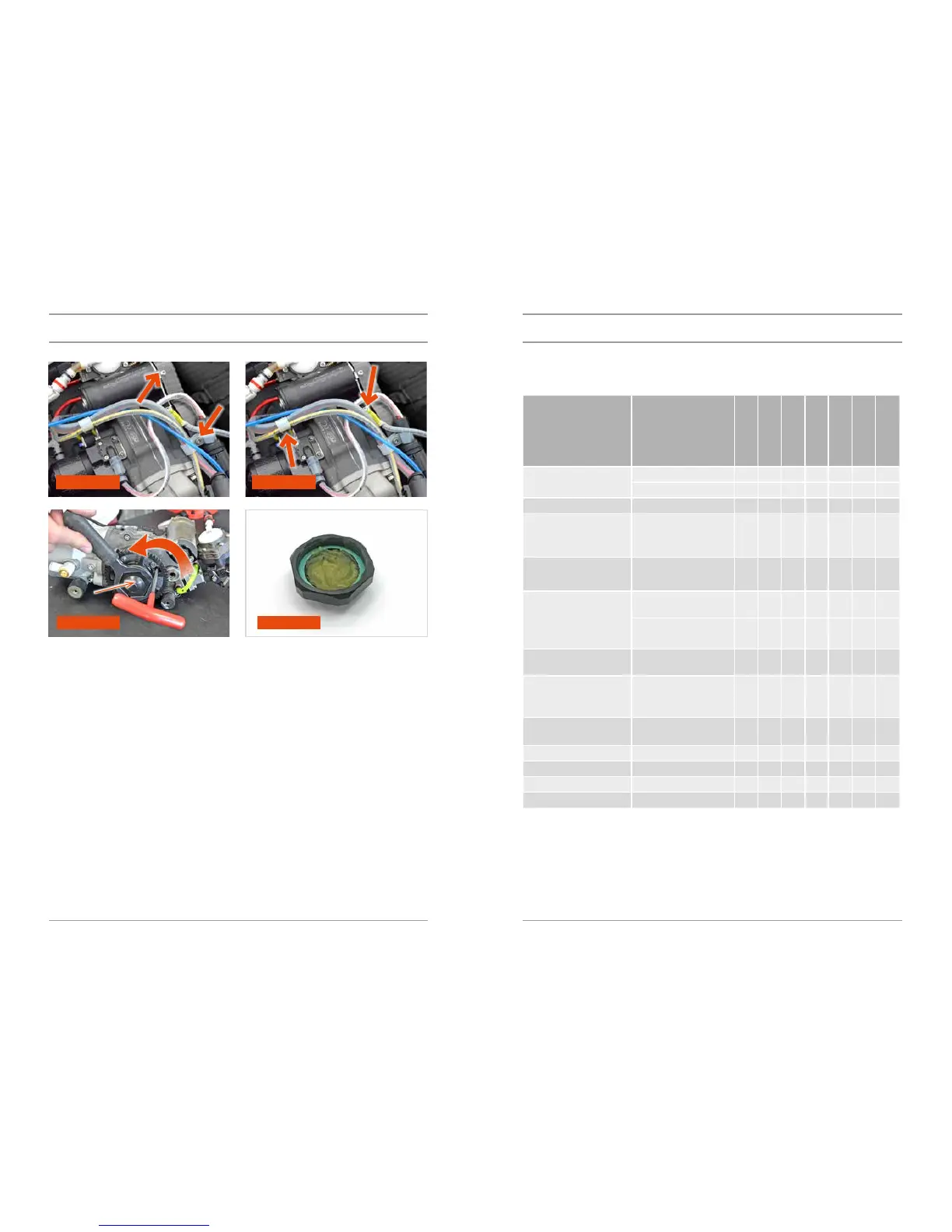

FIGURE 1 FIGURE 2
FIGURE 3
Freewheel
cover
FIGURE 4
