ENGINE

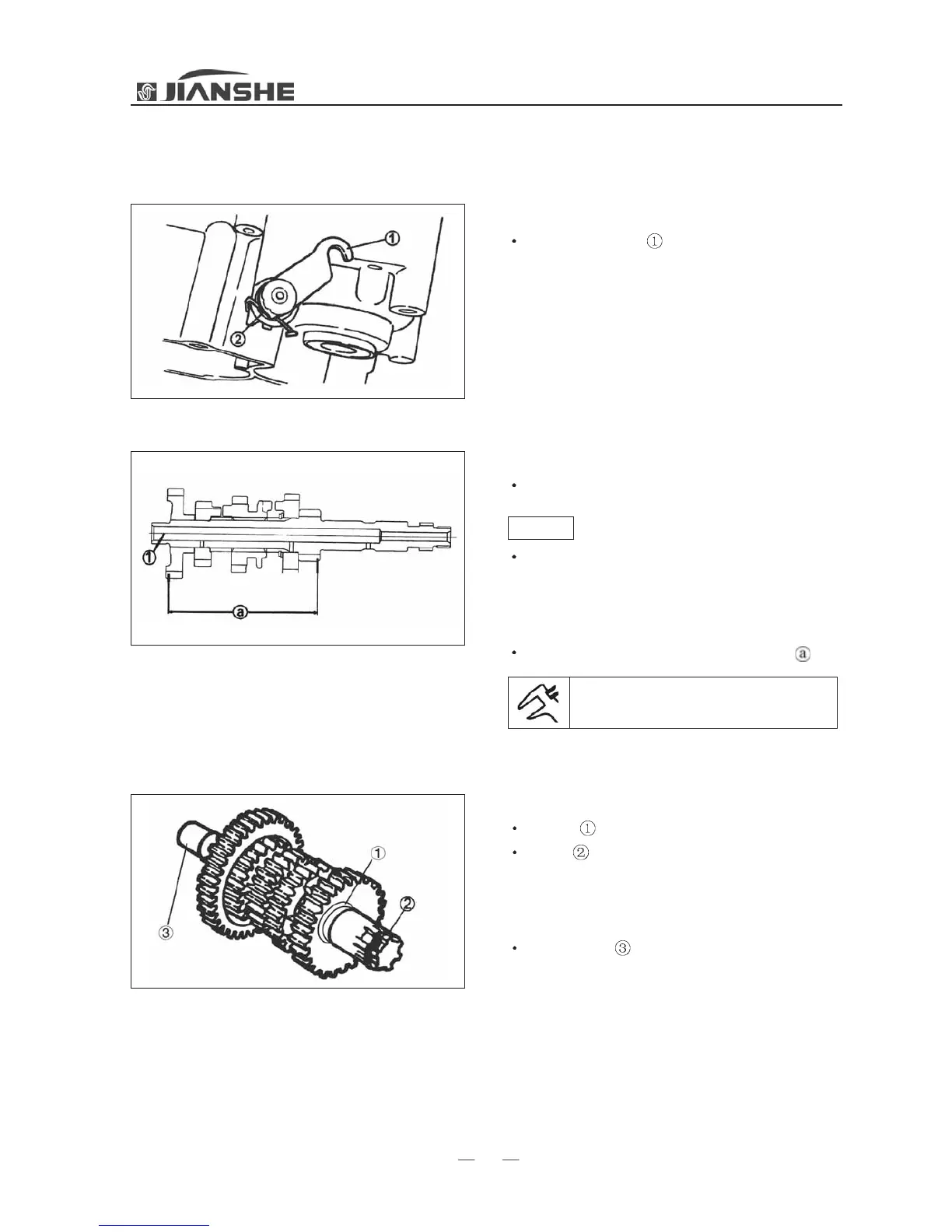

Install transmission system, gear-shift cam,
gear-shift fork
1. Install
Clutch push rod 2
2. Install
Main shaft
First, the clutch inside push rod is installed in main
shaft inside hole. Then install the main shaft.
3. Check
The installing width of the main shaft gear
4. Install
Washer
O-ring
Install the O-ring in the mounting groove of the fixed
bracket of the driving shaft sprocket. After installing
the driving shaft, take off the O-ring.
Driving shaft
Standard installing width of the
main shaft:82.25-83.45mm
