Jianshe JS125-6B User Manual
5
of 1
of 1 rating
210 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
198

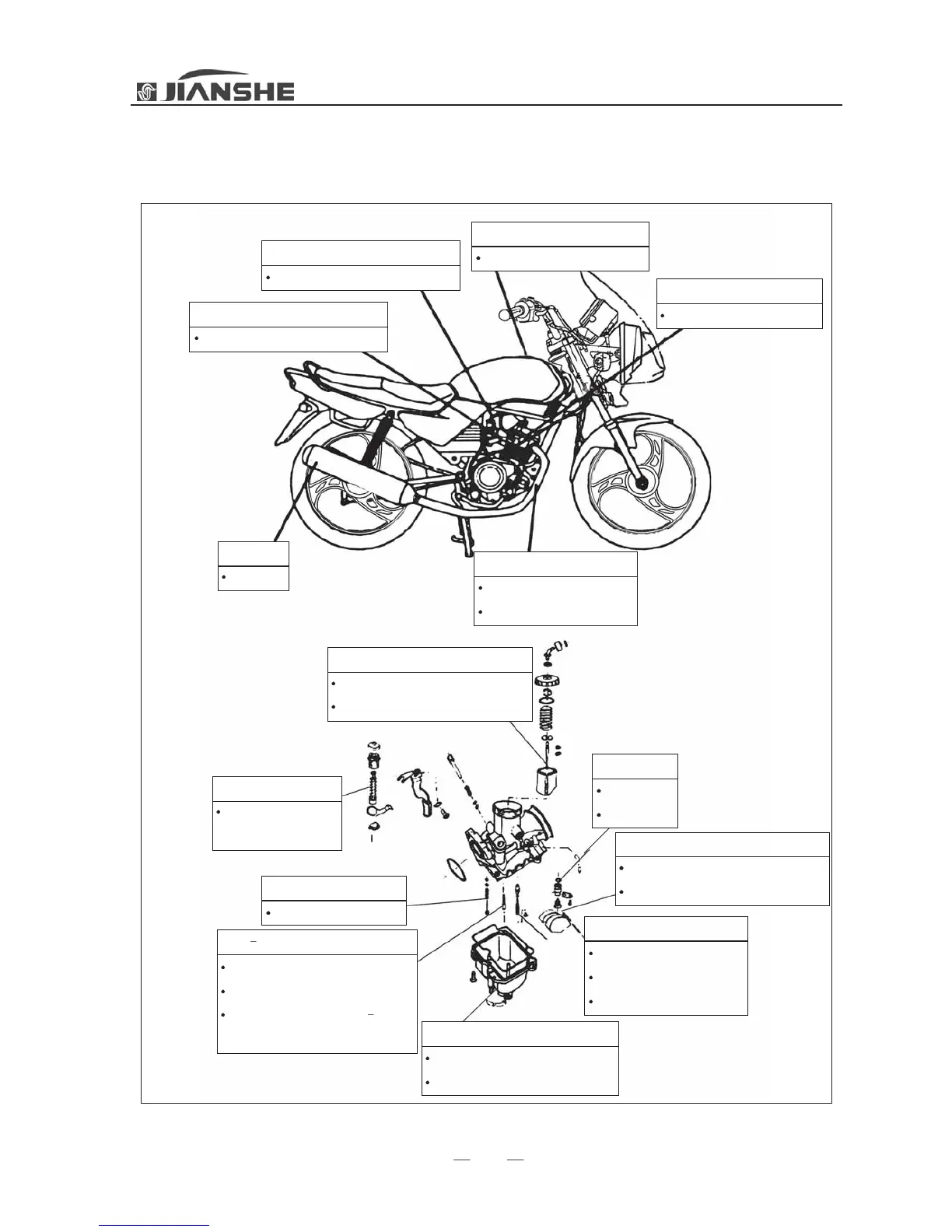

TROUBLESHOOTING
Intake \Exhaust System
Nozzle
Damaged
clogged
Float
Main nozzle
Improper dimension
Clogged (high speed)
Loosened
Accumulate dust / or water
Wear / damage.
Valve lash
Improperly adjusted
Fuel filter
contaminated or clogged
Fuel pipe
Clogged, scratched or bent
Air filter
Contaminated or clogged
Silencer
clogged
Outlet pipe
Scratched or damaged
Accumulate carbon
Jet needle-valve
Improperly adjusted
Incorrect of clamping piece
Starter nozzle
Out o
f
work (when
starting / idle)
Faulty adjustment
PS adjusting bolt
Idle
speed nozzle
Clogged
Improper dimension
Loosened (when idle
speed
and starting)
Float chamber
Improperly adjusted fuel level
Punch
207
209
Table of Contents
Default Chapter
5
Table of Contents
5
Chapter 1 General Information
11
Motorcycle Identification
12
Important Information
13
Special Tools
16
Chapter 2 Specifications
19
General Specifications
20
Check the Specification
23
Lock Torque
28
Lubrication Point and Type of Lubricants
31
Engine Lubrication Flow
33
Chapter 3 Periodic Inspection and Adjustment
35
Introduction
36
Periodic Maintenance/Lubrication
36
Disassemble and Install the Seat Cushion, Oil Tank and Cover Types
38
Check and Adjust Valve Clearance
40
Adjust Idle Speed
42
Check/Adjust the Free Play of the Throttle Cable
43
Check the Spark Plug
44
Inspect Compression Pressure
45
Check Engine Oil
46
Replace Engine Oil
47
Adjust Clutch
48
Clean the Air Cleaner
49
Adjust Front Brake
50
Check Front Brake Shoes
51
Check Front Brake (Disk)
52
Check Brake Lining
52
Check the Amount of Brake Fluid
52
Exhaust
53
Replace Brake Fluid
54
Check and Adjust the Rear Brake
55
Check the Rear Brake Shoes
55
Check the Rear Brake Switch
55
Check and Adjust the Drive Chain
56
Check Front Fork
57
Adjust Rear Shock Absorber
57
Check Tire
58
Check Steering Device
59
Check Battery
60
Chapter 4 Engine
63
Disassemble the Engine
64
Ready to Disassemble the Engine
64
Disassemble the Engine
65
Disconnect the Engine
66
Cylinder Head, Cylinder and Piston
66
Left Crankcase Cover and Starter Motor
68
Clutch and Oil Pump
69
Oil Pump
71
Starting Shaft and Idle Gear
71
Shift Shaft
72
Rotor
72
Crankcase
73
Balancing Device, Transmission and Shifting Rod
73
Crankshaft and Counterbalance
74
Rocker Arm and Camshaft
74
Valve
75
Check and Repair
76
Cylinder Head
76
Valve Seat
77
Valve and Valve Guide
79
Valve Spring
80
Camshaft
80
Rocker Arm and Rocker Arm Shaft
81
Timing Chain, Sprocket, Chain Guide Plate and Chain Tensioner
82
Cylinder and Piston
83
Piston Pin
84
Piston Ring
85
Crankshaft
86
Balancing Device
87
Cultch
87
Transmission and Shift Lever
89
Kick Starter
90
Oil Pump and Oil Filter
91
Crankcase
92
Bearing and Oil Seal
92
Circlip and Washer
92
Engine Assembly and Adjustment
93
Valve, Rocker Arm and Cam Shaft
93
Crankshaft and Bala Nce Device
96
Transmission
98
Gear Shift Cam and Fork
99
Crankcase
102
Shift Shaft, Kick Starter Axle and Kick Starter Idle Gear
104
Clutch, Oil Pump
107
Timing System
112
Cylinder and Piston
116
Cylinder Head
117
Cam Shaft and Dowel Pin
118
Intake and Exhaust System
119
Carburetor
119
Intake, Exhaust System
124
Chapter 5 Chassis
125
Front Wheel
126
Front Brake
127
Rear Wheel
134
Rear Brake
135
Diving Chain
138
Front Fork
142
Steering Seat and Handlebar
149
Rear Shock Absorber and Rear Arm
156
Chapter 6 Cable and Electric Appliance System
159
Cable /Harness Wire/Tube Diagram
160
Electric Device Principle
168
Electric Appliance
169
Components of Electric Appliance
171
Ignition System Diagram
175
Starting Motor
184
Charging System
188
Lighting System
191
Signal System
196
Chapter 7 Troubleshooting
205
Electric Appliance System
206
Compression System
207
Intake \Exhaust System
208
5
Based on 1 rating
