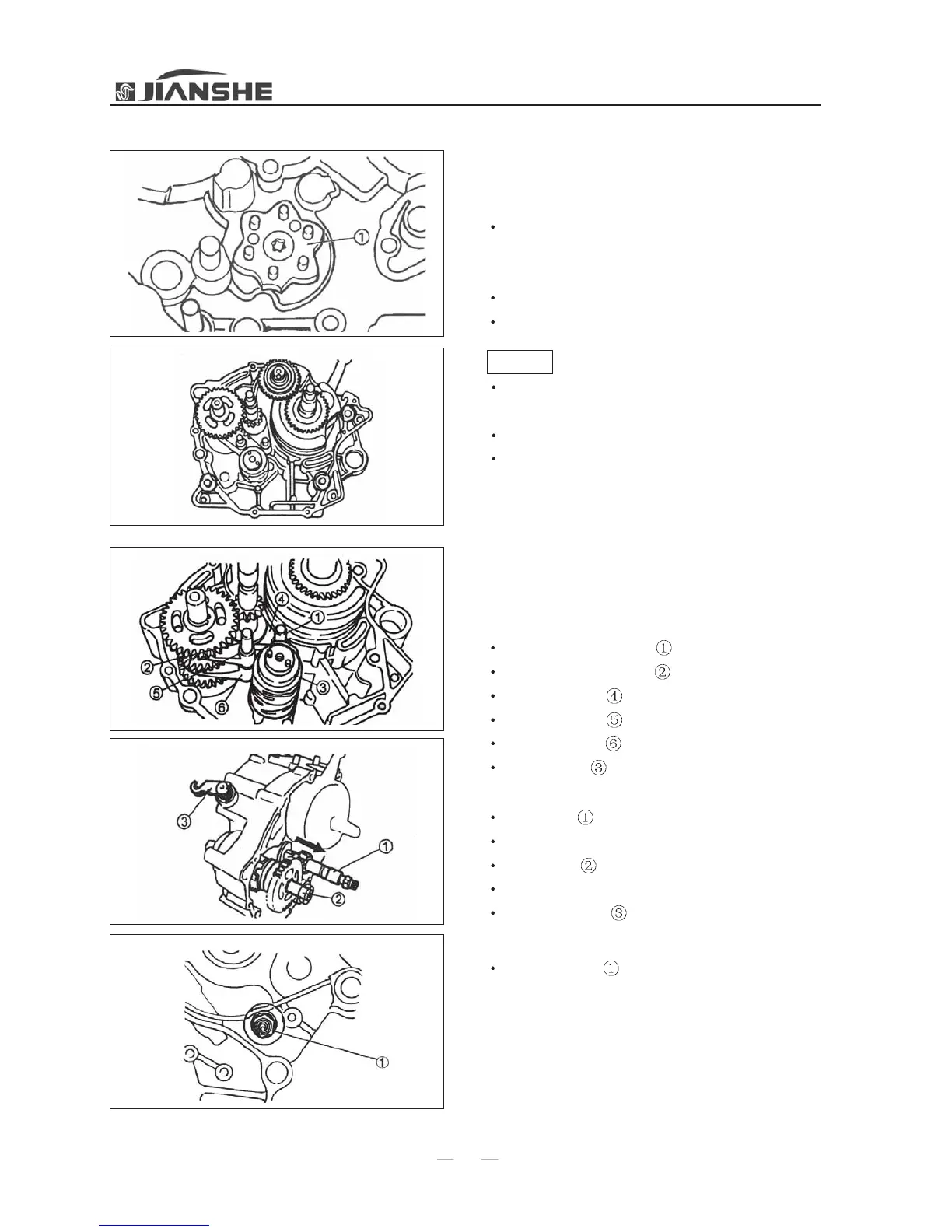

ENGINE
63
2. Disassemble
Star gear
Dowel pin
The crankcase should be separated from the right
side.
Disassemble the star gear.
Be careful not to damage the mating surface of the
crankcase.
Balancing device, transmission and
shifting rod
1. Disassemble
Shifting fork guide rod (short)
Shifting fork guide rod (long)
Shifting fork C
Shifting fork R
Shifting fork L
Shifting cam
Note
Crankcase (right)
1. Disassemble
Screw (crankcase)
2. Disassemble
Main shaft
Clutch inner push bar 2
Drive shaft
Washer
Clutch push bar
3. Disassemble
Neutral switch
To Next Page
