58
ENGINE

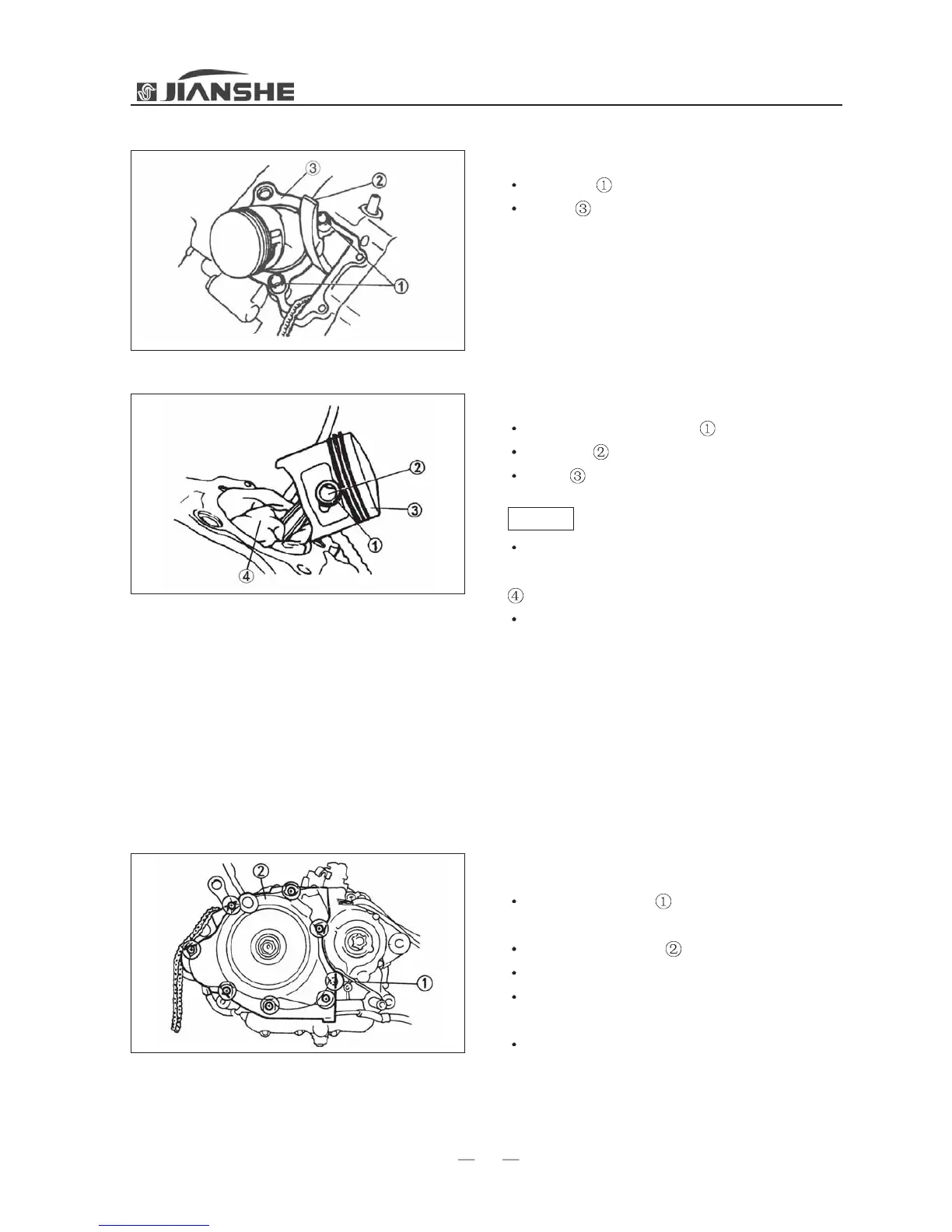

Left crankcase cover and starter
motor
1. Remove
Neutral light switch
2. Disassemble
Left crankcase cover
Dowel pin
Gasket
3. Disassemble
Starter motor
12. Disassemble
Dowel pin
Gasket
13. Disassemble
Elastic circlip of piston pin
Piston pin
Piston
Before disassembling the circlip of piston pin, the
crankcase should be covered a piece of clean cloth
to prevent the circlip from falling into the crankcase.
Before disassembling piston, the groove of circlip
and the pin hole should be cleaned. If they have been
cleaned, but the piston pin is still disassembled
difficultly, the remover for piston pin should be used.
Note
