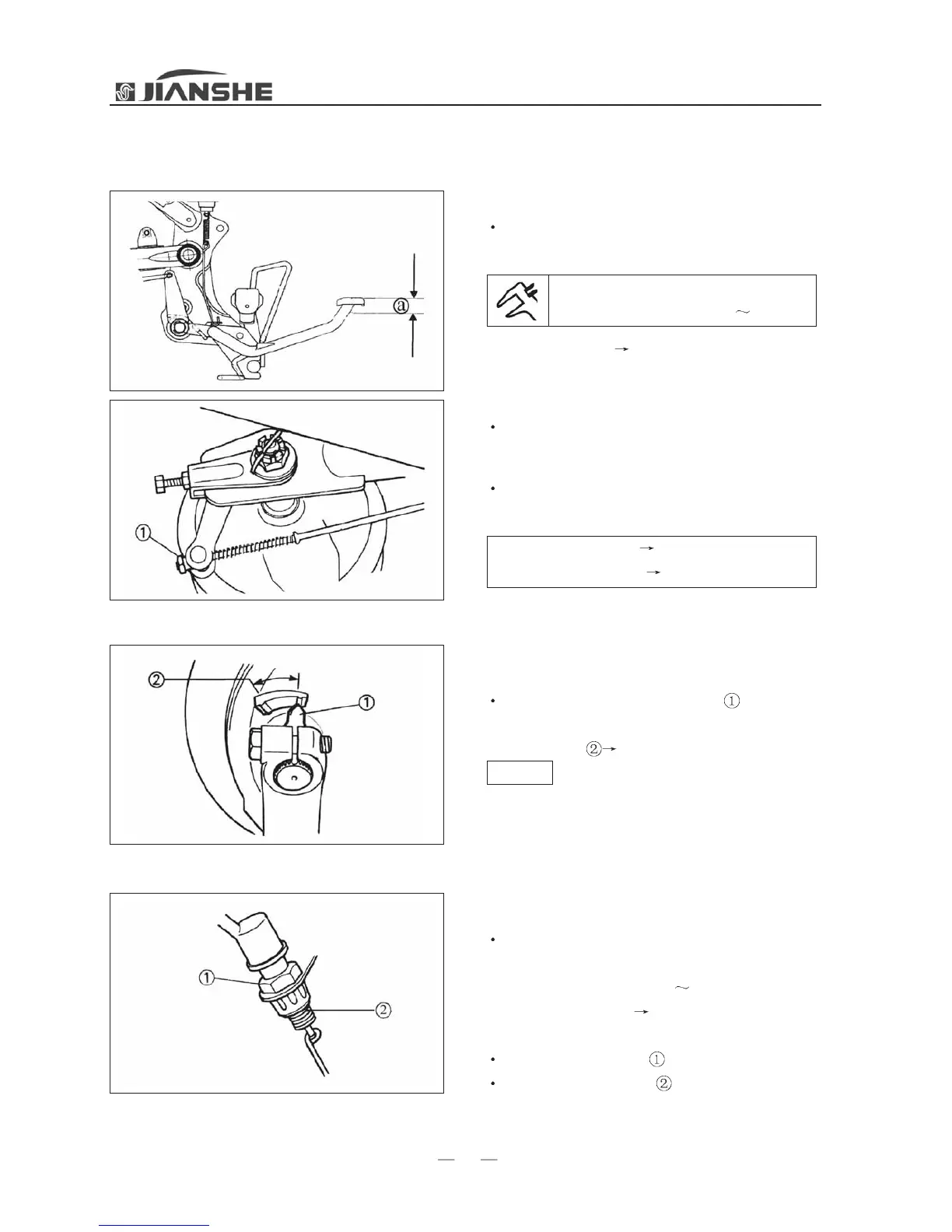

PERIODIC INSPECTION AND ADJUSTMENT
45
Check and adjust the rear brake
1. Check
Check the brake and the free play of the front end
of the brake pedal.
Out of specification
Adjust
The brake and the free play of the front
end of the brake pedal:20
30mm
Check the rear brake shoes
1. Check
Clock hand (wear indicator board)
The clock hand has reached a wear limit reticle of
indicator board
Replace the brake shoes.
Must replace the tension spring when replace the
brake shoes.
Turn in Decrease
Turn out
Increase
Note
Check the rear brake switch
1. Check
Brake light
Check whether the brake light is lightened up or not
push on the brake pedal to 20
30mm.
The brake light is gone
Adjust
2. Adjust
Turn the adjusting nut
Rear brake light switch
Adjustment orders
Turn the adjuster until the free play is in specified
range.
2. Adjust
The amount of the brake pedal free play
