ENGINE
109
Intake and exhaust system

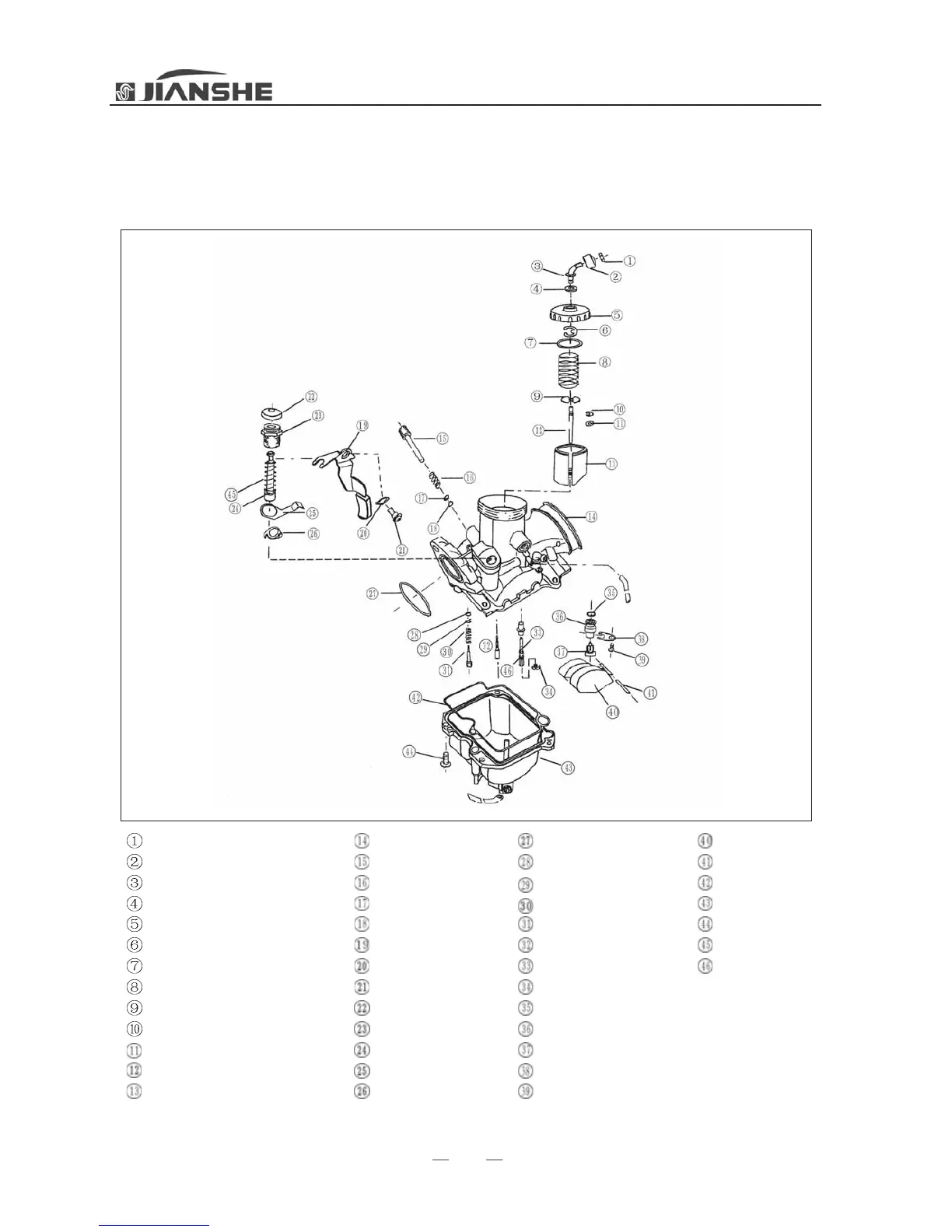

Carburetor
Adjusting screw of throttle cable
Rubber cover
Guide tube of throttle cable
Rubber washer.
Top cover cap
circlip
Rubber washer
plunger spring
Needle pressure plate
Elastic clamp ring
Needle washer
Fuel needle
Throttle valve
Carburetor body
Idle screw
Spring
Washer
Rubber washer
Choke lever
Wave washer
Screw
Rubber cap
Guide holder
Choke valve
Spring piece
Fixed plate
O-ring
Rubber washer
Washer
Spring
Ps adjusting screw
Idling fuel jet
Main nozzle
Main jet
O-ring
Needle valve seat
Needle valve
Fixing catch
Bolt
Float unit
Float pin
Seal shim
Floater cover
Bolt
Spring
O-ring
