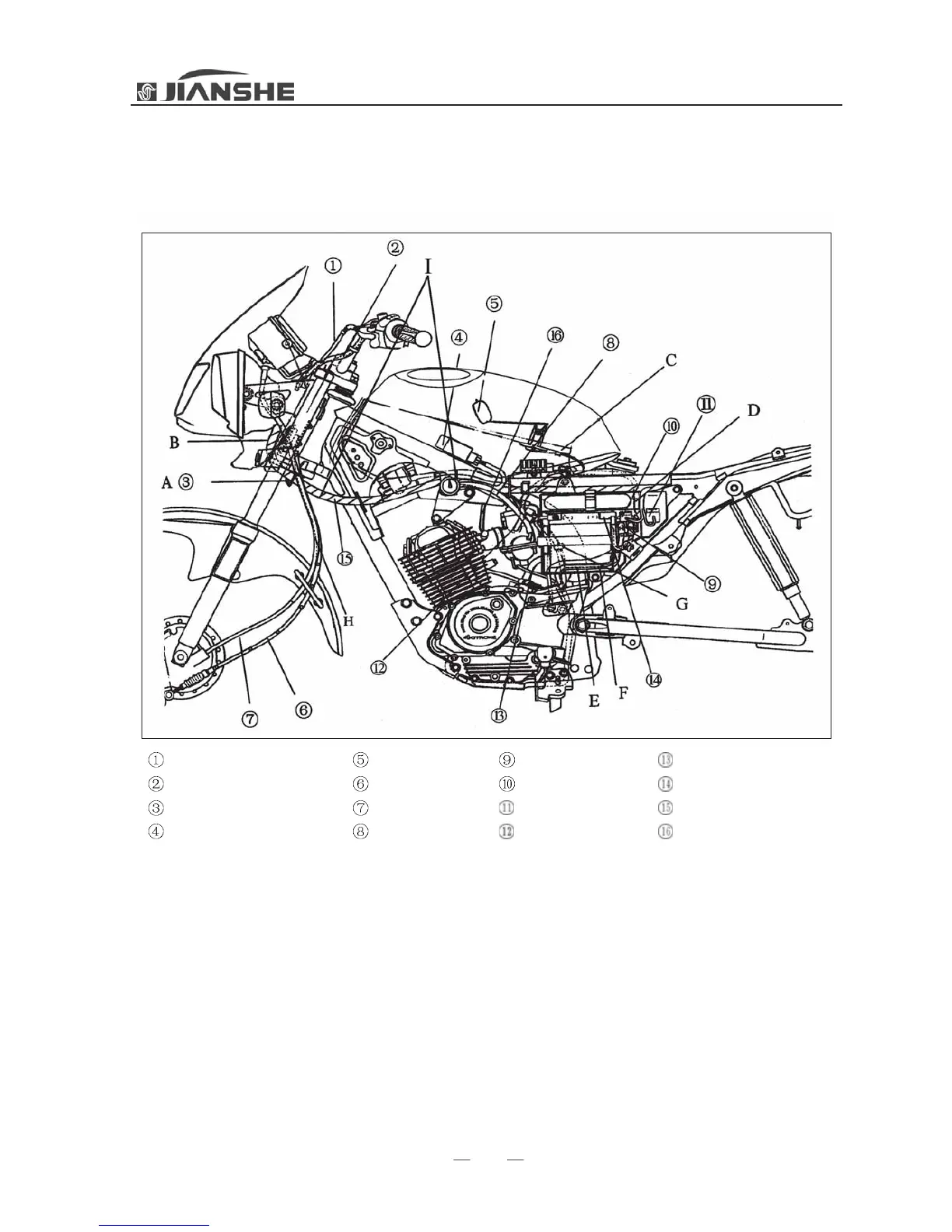

CABLE AND ELECTRIC APPLIANCE SYSTEM
150
Clutch cable
Left handlebar switch wire
Wire clamp
CDI
Fuel sensor
Front brake cable
Speedometer cable
Fuel pipe
Fuse
Start electric relay
Flasher relay
Carburetor vent pipe
Overflow pipe
Positive wire
Harness wire
Negative pressure pipe
A. The harness wire must pass the wire clamp
B. The harness wire and various leads must passed through the back hole of front headlight.and connect in
the inside front headlight
C. Tighten the white mark of wire by the frame wire clamp
D. Insert the carburetor vent pipe in the storage battery box clamp
E. The starter motor wire must pass through the inner side of battery
F. Storage battery vent pipe must pass through the inner side of storage battery
G. Magneto lead and brake switch lead must be fixed in here
H. The front brake cable and speedometer cable must pass through the guide
I. Harness wire must pass through this tube
Cable /harness wire/tube diagram
Drum brake with cowling
