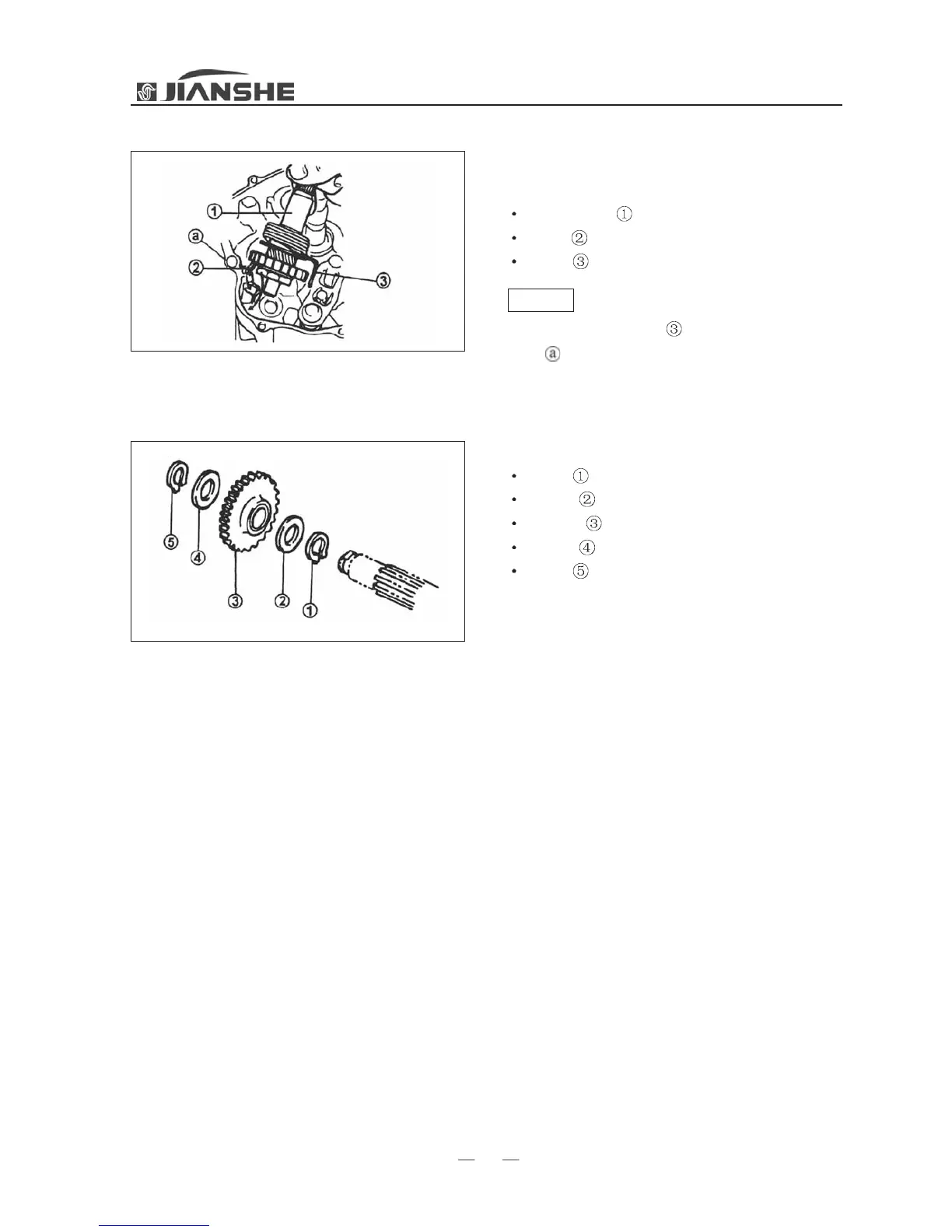

96
ENGINE
Kick starter axle and kick starter idle gear
1. Install
Starting shaft
Clamp
Spring
The projection of spring
must be installed on the
place
of the case, and the spring can not be fixed
till it rotates one lap.
2. Install
Circlip
Washer
Idle gear
Washer
Circlip
Note
105
107
