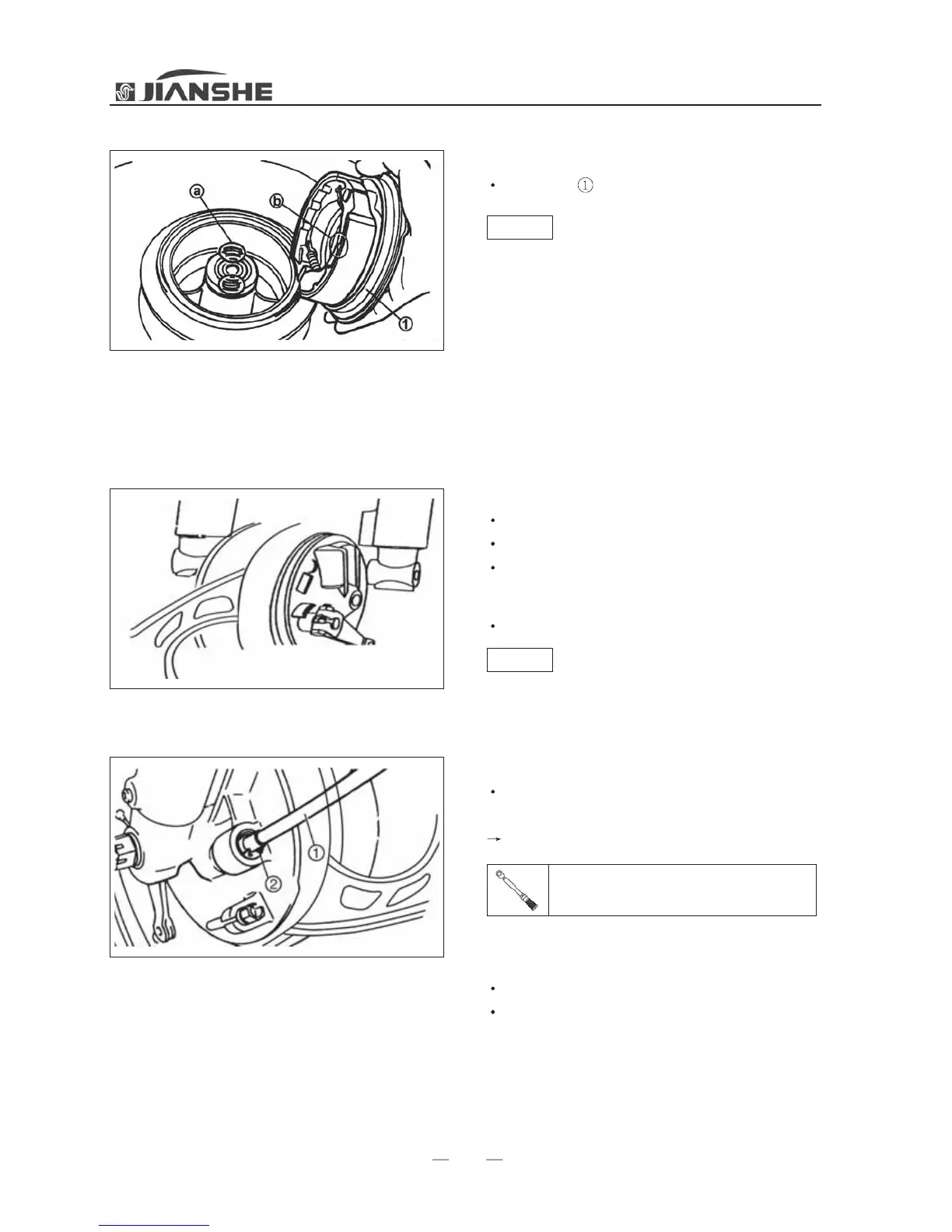

CHASSIS
123
5.Install
Brake assy
Make the slot face the wear indicator when install
brake assy.
Pull and press braked shoe in direction of arrow,
making pivot and brake camshaft rod as fulcrum,
when installing brake shoe.
Note
Install
1.Install
Front brake cable
Speedometer cable
Front wheel axle nut
The convex seat of the left front shock absorber must
bite with the locating slot of gear assy correctly.
Note
4.Install
Speedometer cable
circlip
Be sure not to flex the speedometer cable
Nut torque: 3.5-5.6Kgfm
2.Install
Front wheel
3.Cable
Brake shoe
The brake shoe moving in the hub or rotating unstably
Replace
To Next Page
