CABLE AND ELECTRIC APPLIANCE SYSTEM
164
Switch inspection
Inspect if the circuit between wire end is on with
pocket multi meter.
If there is any failure, replace the switch.
Should turn on and off the switch many times when
inspecting.
Adjust the multi meter to inspecting
Adjust the multi meter to O before when inspect-
ing the circuit
Note

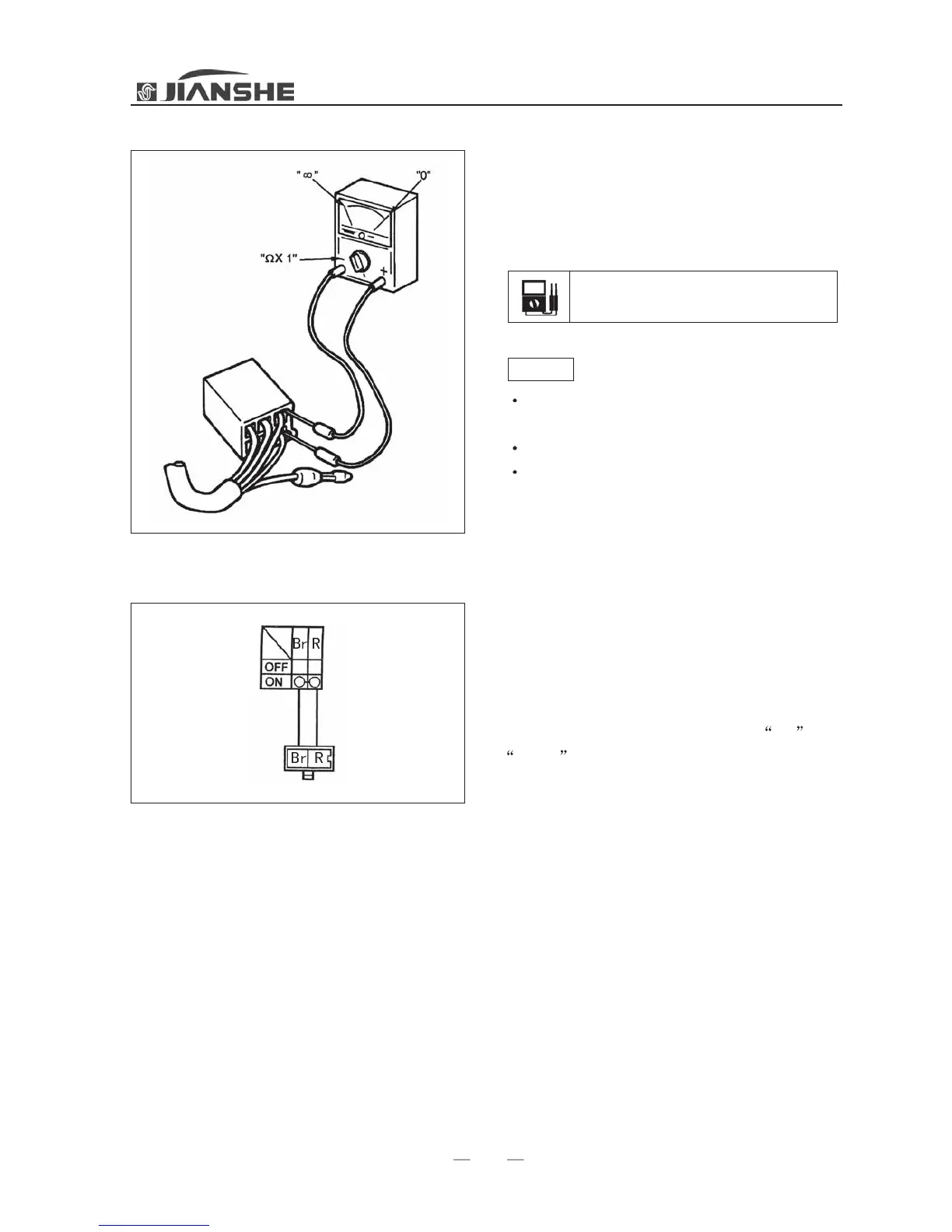

The manual explains how to inspect the switch, The
left figure indicate the wire and position of switch.
The vertical line indicates switch position. The first
row indicates color of switch wire. To every switch
O-Oindicates the circuit between the wire ends is on.
When the switch is adjusted to on the
red and
brown wire are on.
Pocket tester
To Next Page
