ENGINE
87

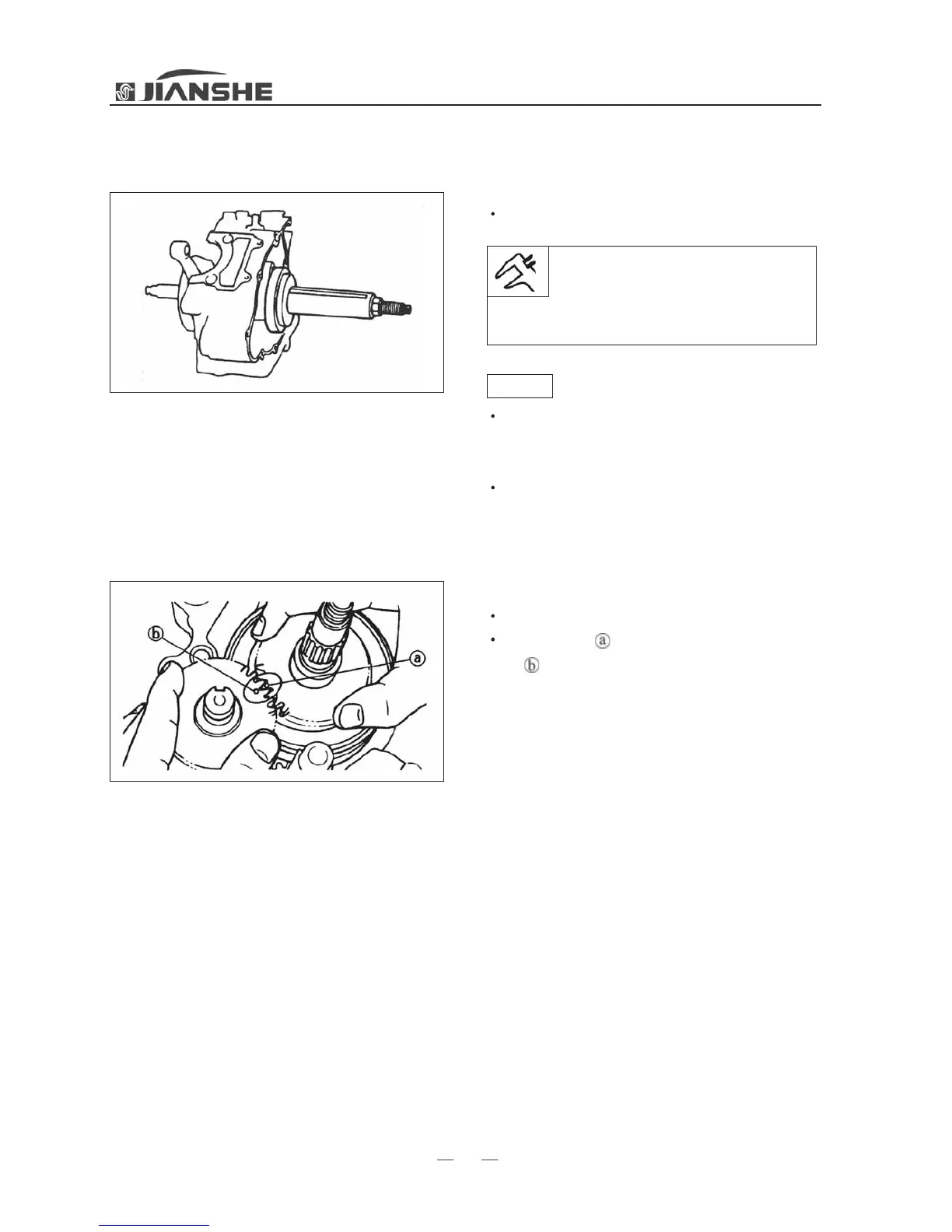

Install crankshaft and balancing shaft
1. Install
Crankshaft
Maintain the connecting rod in the position of upper
dead center, when installing, do not touch the
crankcase.
Do not ham the crankshaft with a hammer.
2. Install
Balance shaft
Align the mark
on the crank driving gear with the
mark
on the balance shaft gear, and then install
them.
Note
Distance bushing install
The crankshaft spanner
The crank shaft bolt
Reducing coupling
96
98
