K ++ master control installation

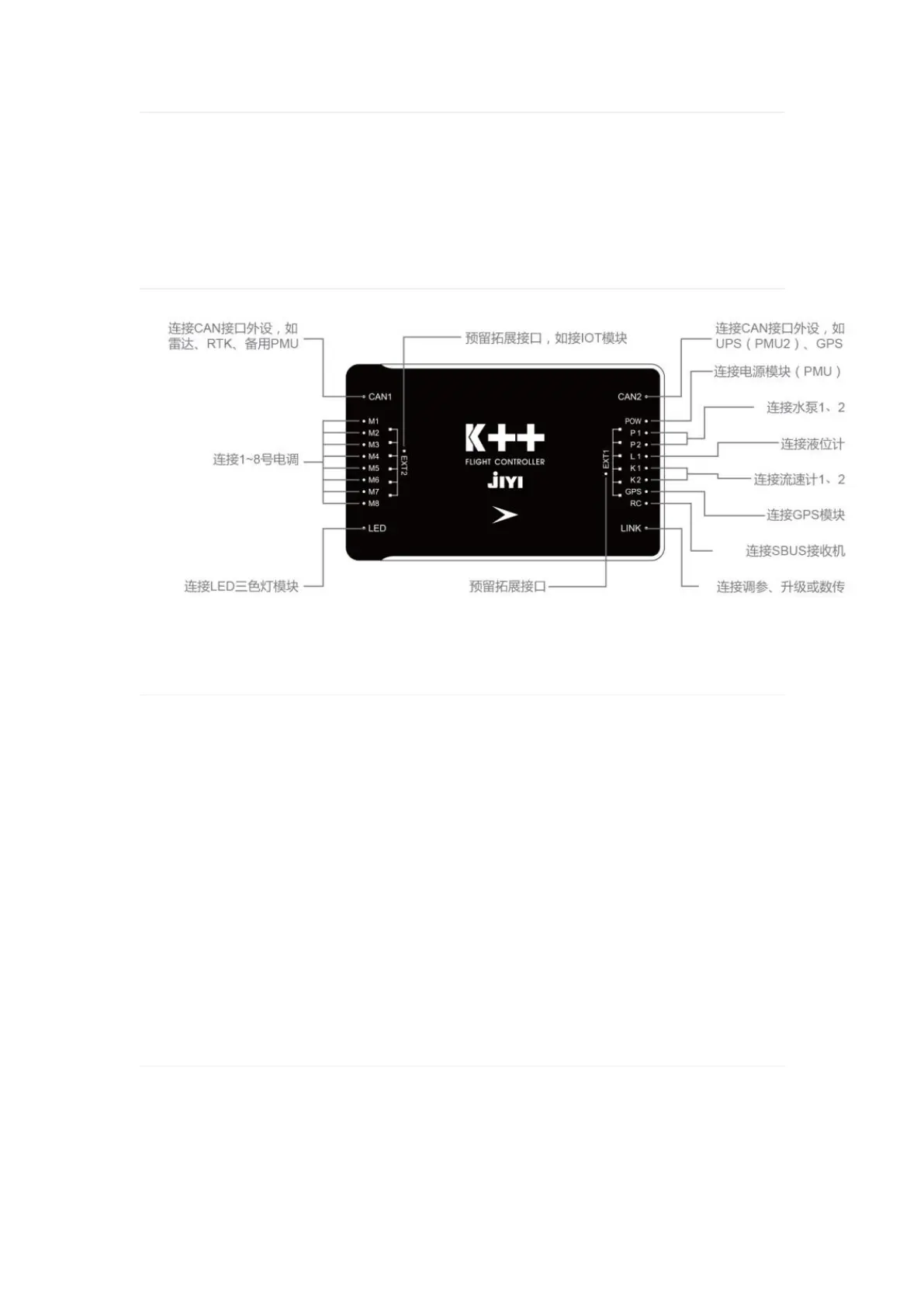

1.1 K ++ main control wiring diagram
1.2 K ++ installation location requirements
1). It needs to face up, not upside down, and try to keep it parallel to
the fuselage;
2). In order to obtain the best flight effect, it is recommended to
install the flight control level at the center of gravity of the
aircraft. If the flight control installation position is not at the center
of gravity of the aircraft, please fill in the corresponding installation
distance in the Basic-> Installation-> Installation Position interface
in the K ++ Assistant Software;
3). The flight controller has done a good job of internal shock
absorption, and try to use hard 3M glue to fix the flight controller.
1.3 K ++ installation orientation requirements
As shown in the figure, select one of the installation directions, and
select the corresponding configuration in the Basic-> Installation->
IMU Direction interface in the K ++ Assistant Software. (The
direction of the red arrow represents the head direction)
