“BALANCE WITH RUNOUT”
(a)
(b)
(c)
6-49
6-50
B
Multiple Harmonics
This function, available in OPTIMA mode, shows
additional data relative to the Runout (2nd and 3rd
harmonic) .
The 8, 9, 10, 11, 12 items of the B Menu (Fig. 6-47)
allow access to the Multiple Harmonics Runout
screens.
Possible screen pages if the thresholds set are
exceeded:
_ Wheel assembly radial runout
_ Left side rim radial runout
_ Right side rim radial runout
_ Left side rim lateral runout
_ Right side rim lateral runout
In each of the five screen pages it is possible to
view one after another the graph relative to the three
harmonics, using Item 7 of the key F2.
To enable the function with the “SETTINGS” Screen,
access the following:
“OPTIMA Settings / Display Subsequent Runout
Harmonics”,
set “Enable” and press “OK”.

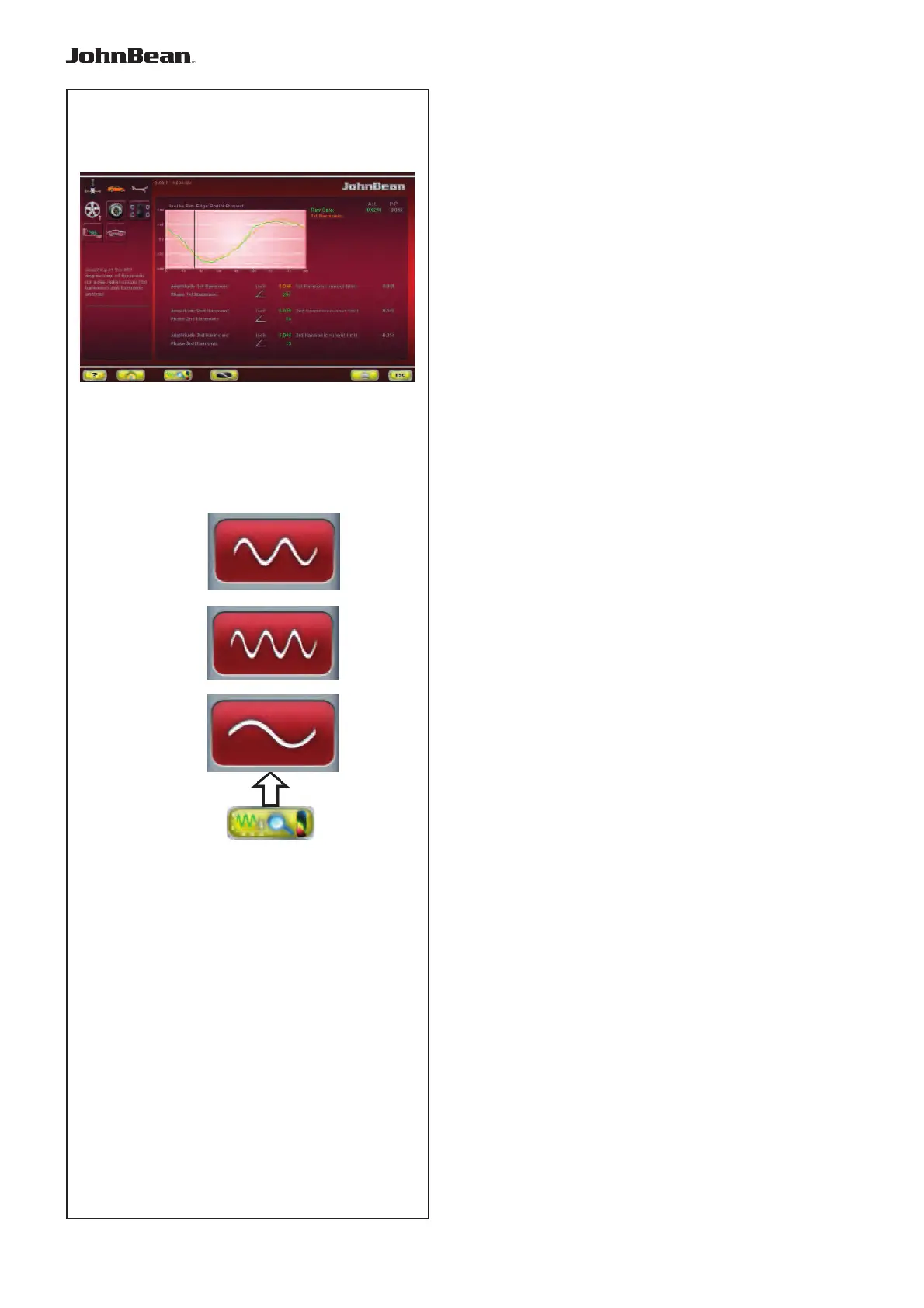

In the screens (Fig. 6-50) the B key presents the
following display items in cycle (a, b, c):
(a): displays the 2nd harmonic.
(b): displays the 3rd harmonic.
(c): go back to display the 1st harmonic.
Note:
The printed Report reproduces data and
graphs
for all three harmonics for the
single runout
currently selected (see representation in the Printing
the Report chapter (F 6.4.7).
..
