40
P3
P5
P7
P4
P6
P8
P11 P12
P1
P2
A
A
B
C
C
P13
P1a P2a
P10
P9
Layout

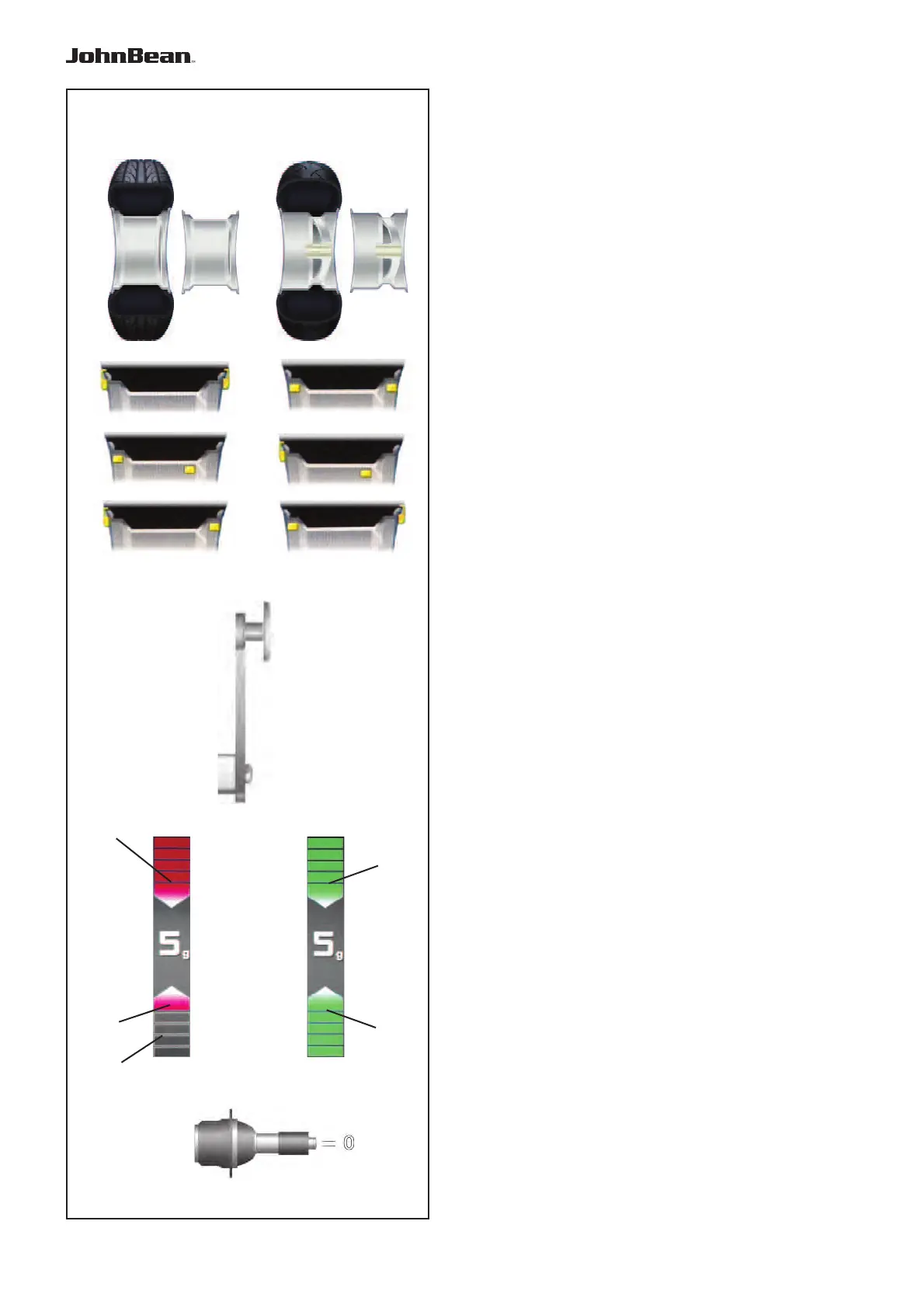

4.2 Pictographs – Symbols
Pictographs are viewed on the screen in all fi elds: In
Info
rmation fi elds, menu fi elds, and in the display fi eld.
P1 Wheel type 1 – standard - nominal size in inches
or millimetres
P1a Rim type 1 – standard rim
P2 Wheel type 2 - motorcycle wheel
P2a Rim type 4 - motorcycle rim
P3 Alu 0 - normal - Standard balancing mode
P4 Alu 1, Alu 1P
P5 Alu 2, Alu 2P
P6 Alu 3, Alu 3P
P7 Alu 4
P8 Alu 5
P9 Gauge arm for distance measurement
P11 Dis
play of unbalance measured and direction
indicator (red arrows or arrows head)
A No colour: greater distance from position
B Red: rotation direction to reach the position, the
higher the number of lit segments the more the
wheel must be rotated.
P12 Correction position reached (green arrows)
C Green: compensation position reached, hold the
wheel in this position to apply the weight.
P13 Compensation run carried out.
..
_
..........
P9
P9 Gauge arm for distance measurement
