EXTENDED CABINET / LEFT SUPPLY / LEFT RETURN

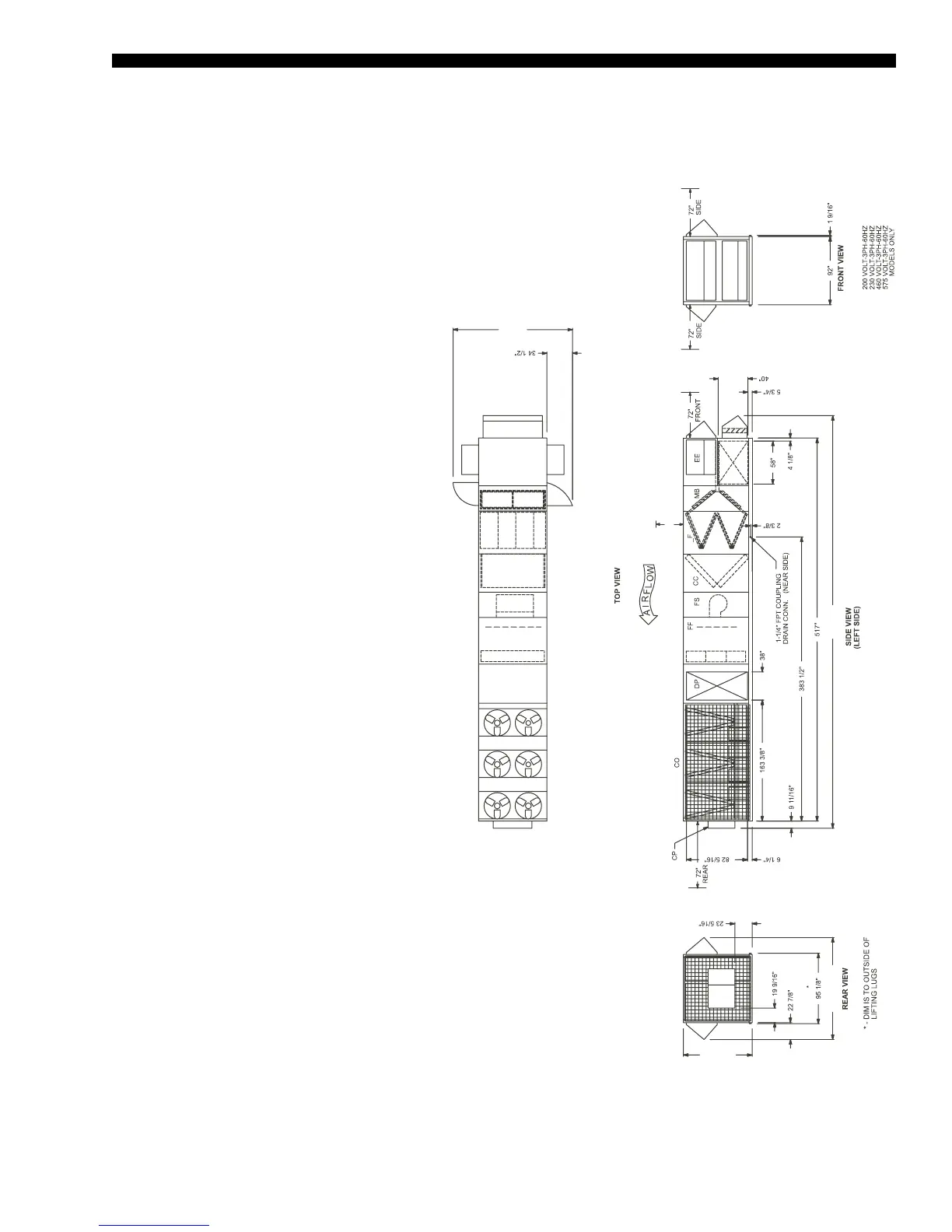

FIGURE 15 - GENERAL ARRANGEMENT DRAWING
ld08137
NOTES
1. 10’ Clearance Minimal Over The Top
of the Condensing Unit.
2. Only One Adjacent Wall Can Exceed
Unit Height.
3. 12’ Clearance Required to Adjacent
Units
4. 8’ Service Access Recommended on
One Side.
5. Economizer and Exhaust Hoods,
Where Applicable, are Folded Inside Unit for Shipment.
6. Clearance Downstream of the Diffus-
er. If the Diffuser Factory Option is Not Installed, Clearance, Downstream of the Supply Fan Outlet is Required to Provide Adequate Airow and Reduce Air Pressure Drop.
SECTION DESCRIPTIONS: EE = Economizer FE = Fan Exhaust MB = Mixing Box _F = Filter Segments CC = Cooling Coils FS = Supply Fan FF = Final Filter DP = Discharge Plenum CO = Condenser Section CP = Control Panel
13’ - 5”
10’
46’ - 5”
11’ - 5 13/16”
7’ - 8 7/8”
