Johnson Controls DWUNI User Manual



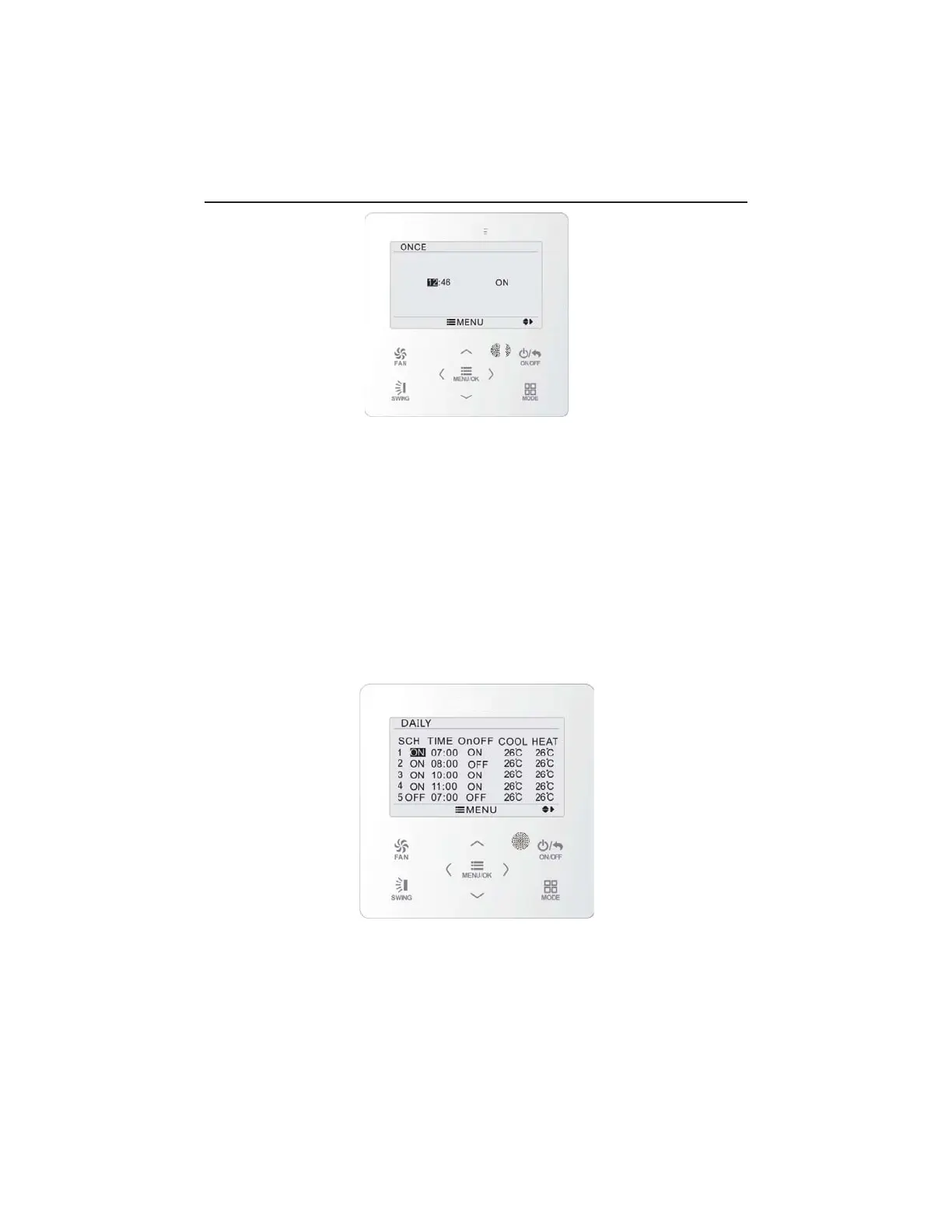

Fig. 12 Setting page of one time clock timer

Fig. 13 Daily timer setting
3.10.3 Weekly Timer
The user can set the everyday timer content for a week. In each day, the user can
set eight segments of timer content. The unit will execute corresponding timer setting in
a week.
Wired Controller DWUNI User Manual
16
Note: When the Timer Function is turned ON and the unit is turned ON or turned
OFF, this
Timer Function is canceled automatically.
3.10.2 Daily Timer
In daily timer, user can set eight segments of timer individually. The
individual segment is valid only when it is turned on. In each segment, you can set
time, unit ON/OFF, set temperature in Cooling (it is valid only when the current mode is
in cooling), set temperature in Heating (it is valid only when the current mode is
heating).
Please refer to Fig. 13 to select setting. After entering daily timer setting page, press “<”
or “>” button item. Press “Ʌ ” or “V” button to adjust the value. Press MENU button to save
setting.
